Calpeda 1.5 HP Submersible Borehole Pump 4SDX 2/23C Specifications
This pump operates efficiently with a single-phase voltage of 230V or a three-phase voltage range of 230-400V. It delivers a power output of 1.1 kW, equivalent to 1.5 HP, making it suitable for various water transfer tasks. The pump can reach a maximum head of 136 meters, allowing it to lift water over significant heights, and it has a maximum flow rate of 40 liters per minute, ideal for moderate water movement. It runs at a speed of 2900 RPM, ensuring steady performance. Designed to handle water at a temperature of up to 35°C, it can also manage water containing up to 50 grams of sand per cubic meter, making it durable in sandy or slightly contaminated environments.
The pump features a two-pole motor, operates at a frequency of 50 Hz, and has an insulation class rated F for safety and durability. Its IP 68 protection rating guarantees excellent sealing against dust and water, suitable for outdoor or harsh conditions. Overall, this series of Calpeda submersible pumps is a reliable choice for water transfer, irrigation, or industrial applications requiring high performance and durability in challenging environments.
| Specification | Value |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230-400 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Max. delivery head (m) | 136 |
| Max. flow rate (l/min) | 40 |
| Speed (rpm) | 2900 |
| Liquid temperature | 35 °C |
| Maximum amount of sand in water (g/m3) | 50 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection | IP 68 |

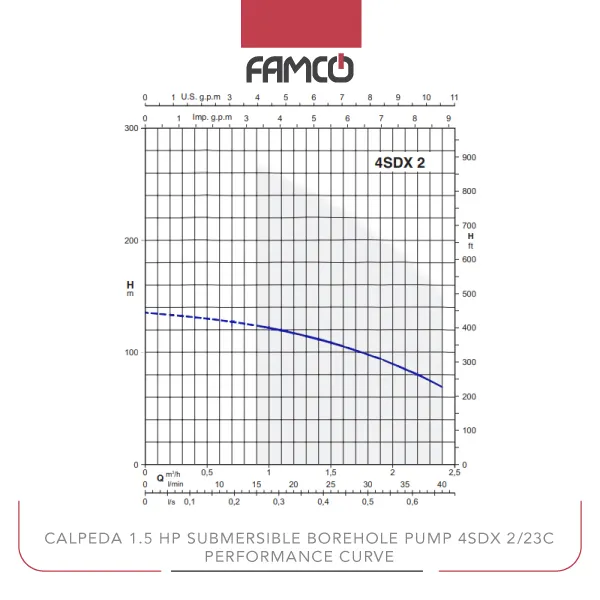

Calpeda 1.5 HP Submersible Borehole Pump 4SDX 2/23C Performance Data
| m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
| head (m) | 136 | – | – | 124 | 117 | 109 | 98 | 85 | 69 |
Calpeda 1.5 HP Submersible Borehole Pump 4SDX 2/23C Applications
- Irrigation systems for farms and gardens
- Industrial water transfer
- Drainage and flood control
- Water supply for construction sites
Calpeda 1.5 HP Submersible Borehole Pump 4SDX 2/23C Benefits
- High durability with IP 68 protection rating
- Capable of handling sandy water
- Powerful performance with 136m head and 40 l/min flow
- Flexible power options with single and three-phase compatibility
Calpeda 1.5 HP Submersible Borehole Pump 4SDX 2/23C Price List
| No. | Name | Price |
| 1 | Calpeda 1.5 HP Submersible Borehole Pump 4SDX 2/23C Price | Contact us |
There are no reviews yet.
