Calpeda 1.5 HP Submersible Borehole Pump 4SDX 1/42C Specifications
This borehole pump is configured for installations where extended vertical lift is required without increasing discharge volume, reaching 238 m of head at a fixed flow rate of 25 l/min and a speed of 2900 rpm. Power compatibility covers both 230 V single-phase and 230–400 V three-phase supplies at 50 Hz, combined with a 2-pole motor rated at 1.5 HP. Operational limits are clearly defined, including a maximum liquid temperature of 35 °C and a sand tolerance of 50 g/m³, supported by insulation class F and IP 68 protection for continuous submersion. Within the Calpeda submersible pumps range, the 4SDX 1/42C sits among the higher-head configurations designed for deep borehole extraction. When compared with other Calpeda submersible pumps, this model prioritizes pressure and lift capability over flow expansion, making it suitable for narrow wells where hydraulic head is the dominant selection factor.
| Specification | Value |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230-400 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Max. delivery head (m) | 238 |
| Max. flow rate (l/min) | 25 |
| Speed (rpm) | 2900 |
| Liquid temperature | 35 °C |
| Maximum amount of sand in the water | 50 g/m3 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection | IP 68 |

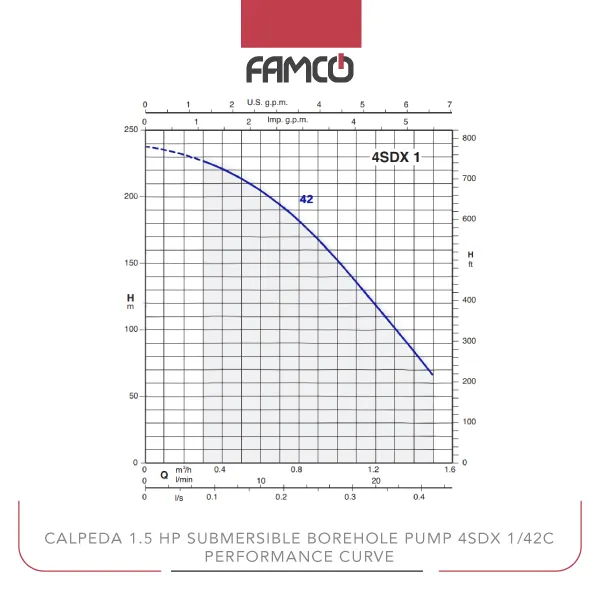

Calpeda 1.5 HP Submersible Borehole Pump 4SDX 1/42C Performance Data
| m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 |
| head (m) | 238 | 227 | 203 | 168 | 118 | 67 |
Calpeda 1.5 HP Submersible Borehole Pump 4SDX 1/42C Applications
- Irrigation systems in agriculture
- Water supply for residential or commercial buildings
- Industrial water transfer tasks
- Flood control and drainage projects
Calpeda 1.5 HP Submersible Borehole Pump 4SDX 1/42C Benefits
- High maximum head for demanding applications
- Versatile power options for flexibility
- Durable and weather-resistant with IP 68 rating
- Capable of handling water with some debris
Calpeda 1.5 HP Submersible Borehole Pump 4SDX 1/42C Price List
| No. | Name | Price |
| 1 | Calpeda 1.5 HP Submersible Borehole Pump 4SDX 1/42C Price | Contact us |
