Calpeda 1.5 HP Submersible Borehole Pump 4SDX 1/36C Specifications
This model is configured for deep borehole duties where head height is the primary requirement rather than volume, delivering 205 m of lift at a fixed flow rate of 25 l/min while running at 2900 rpm. Electrical compatibility includes both 230 V single-phase and 230–400 V three-phase operation at 50 Hz, paired with a 2-pole motor rated at 1.5 HP. Operational limits are clearly defined, with a maximum liquid temperature of 35 °C and an allowable sand content of 50 g/m³, supported by insulation class F and IP 68 protection for continuous submersion. Within the Calpeda submersible pumps portfolio, the 4SDX 1/36C is positioned for installations where deep water extraction is required without increasing discharge volume. Compared to other Calpeda submersible pump configurations, this version emphasizes vertical lifting capacity while maintaining controlled hydraulic output, making this series of Calpeda pumps more than suitable for narrow (4-inch) wells where pressure performance dictates pump selection.
| Specification | Value |
| single-phase voltage (V) | 230 |
| three-phase voltage (V) | 230-400 |
| power (kW) | 1.1 |
| power (HP) | 1.5 |
| Max. delivery head (m) | 205 |
| max. flow rate (l/min) | 25 |
| speed (rpm) | 2900 |
| Liquid temperature | 35 °C |
| Maximum amount of sand in the water | 50 g/m3 |
| number of poles | 2 |
| frequency (Hz) | 50 |
| Insulation class | F |
| Protection | IP 68 |

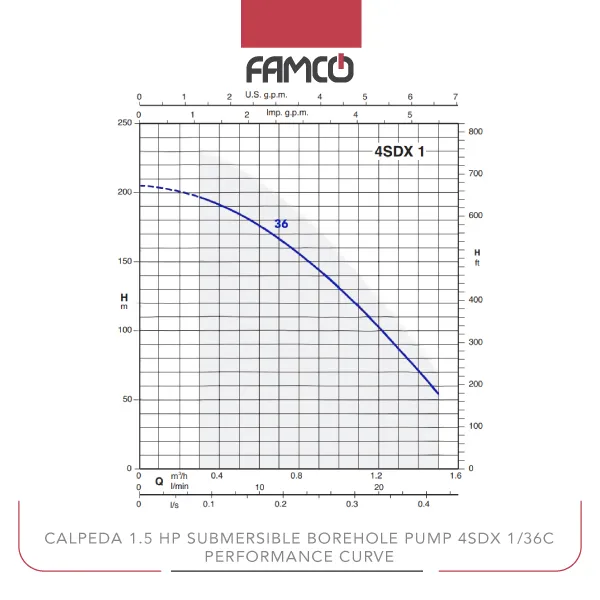

Calpeda 1.5 HP Submersible Borehole Pump 4SDX 1/36C Performance Data
| m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 |
| head (m) | 205 | 196 | 175 | 144 | 103 | 54 |
Calpeda 1.5 HP Submersible Borehole Pump 4SDX 1/36C Applications
- Irrigation systems in agriculture
- Water supply for construction sites
- Drainage and flood control
- Industrial water transfer
Calpeda 1.5 HP Submersible Borehole Pump 4SDX 1/36C Benefits
- High maximum head for lifting water over long distances
- Durable design with IP 68 protection rating
- Flexible voltage options for different setups
- Capable of handling water with sand content
Calpeda 1.5 HP Submersible Borehole Pump 4SDX 1/36C Price List
| No. | Name | Price |
| 1 | Calpeda 1.5 HP Submersible Borehole Pump 4SDX 1/36C Price | Contact us |
There are no reviews yet.
