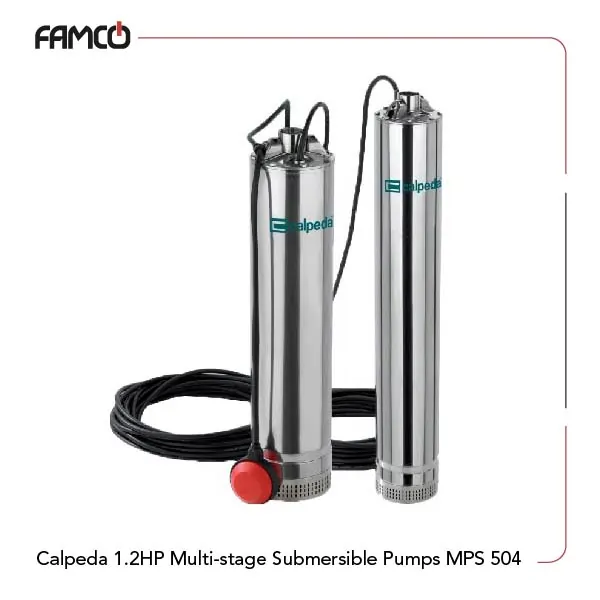

Calpeda 1.2HP Multi-stage Submersible Drainage Pumps MPS 504 Specifications
This product efficiently operates in various applications. It can handle liquid temperatures up to 35° C and has a minimum immersion depth of 100 mm for a functional performance. The maximum immersion depth is also set and measured as 20 m; that is with using the appropriate cable length. The motor operates at a frequency of 50 Hz and has a rotation speed of approximately 2900 rpm. It is available in both single-phase (230 V) and three-phase (230-400 V) configurations. The insulation class is rated at F to offer reliable performance. The protection class is IP X8 to enable continuous immersion. The humidity-proof dry winding features triple impregnation for added durability. This Calpeda submersible pump’s four impellers are made from PPO-GF20 (Noryl). This pump comes in with a shaft constructed from chrome-nickel steel (AISI 304); built to last. The mechanical seals consist of high-quality materials for maximum effective sealing. The lubrication oil used in this product is accessible and suitable for food and pharmaceutical applications.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 4 | |
| Power (kW) | 0.9 | |
| Power (HP) | 1.2 | |
| Head (m) | 9.5-45 | |
Calpeda 1.2HP Multi-stage Submersible Drainage Pumps MPS 504 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbon, Silicon Carbide, NBR

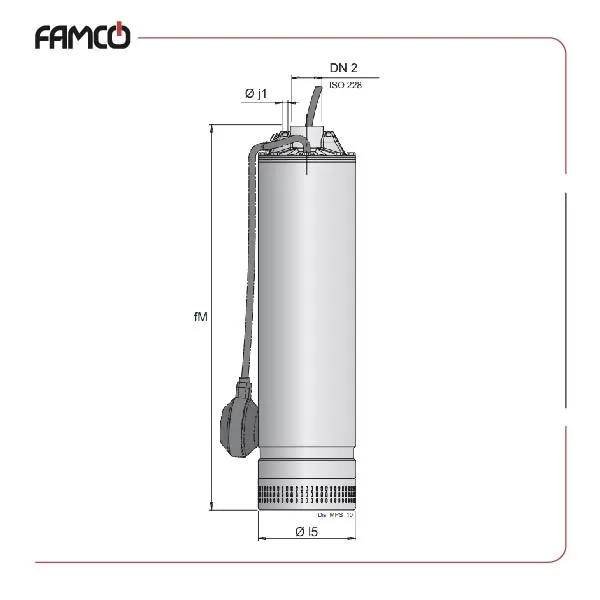

Calpeda 1.2HP Multi-stage Submersible Drainage Pumps MPS 504 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MPS 504 | G 1 1/4 | 553 | 7 | 133 | 14.4 |
| MPSM 504 | G 1 1/4 | 553 | 7 | 133 | 14.2 |

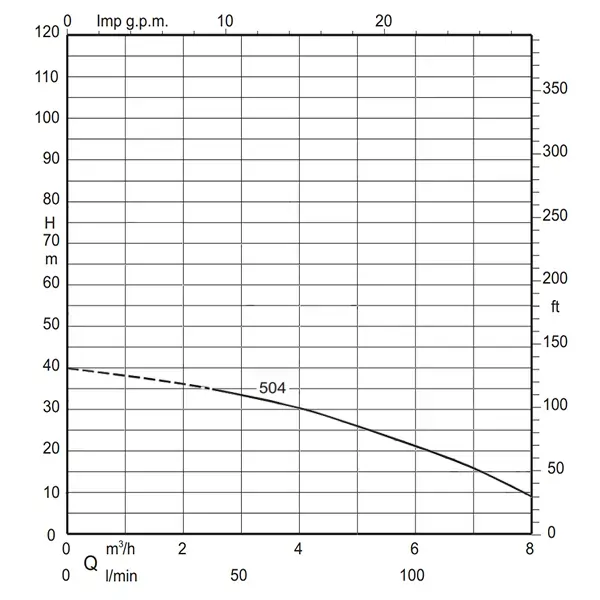

Calpeda 1.2HP Multi-stage Submersible Drainage Pumps MPS 504 Performance Data
| Q= m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7 | 8 |
| Q=l/min | 0 | 16.6 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 | 83.3 | 100 | 117 | 133 |
| H (m) | 45 | – | – | – | 39.5 | 37.8 | 35.8 | 33.5 | 31 | 28.5 | 23 | 16.5 | 9.5 |
Calpeda 1.2HP Multi-stage Submersible Drainage Pumps MPS 504 Applications
- Food processing and handling
- Pharmaceutical manufacturing
- Water treatment facilities
- Industrial liquid transfer
Calpeda 1.2HP Multi-stage Submersible Drainage Pumps MPS 504 Benefits
- Durable construction for long-lasting use
- High efficiency with low power consumption
- Versatile applications across industries
- Effective sealing for safe operation
Calpeda 1.2HP Multi-stage Submersible Drainage Pumps MPS 504 Price List
| No. | Name | Price |
| 1 | Calpeda 1.2HP Multi-stage Submersible Drainage Pumps MPS 504 Price | Contact us |
