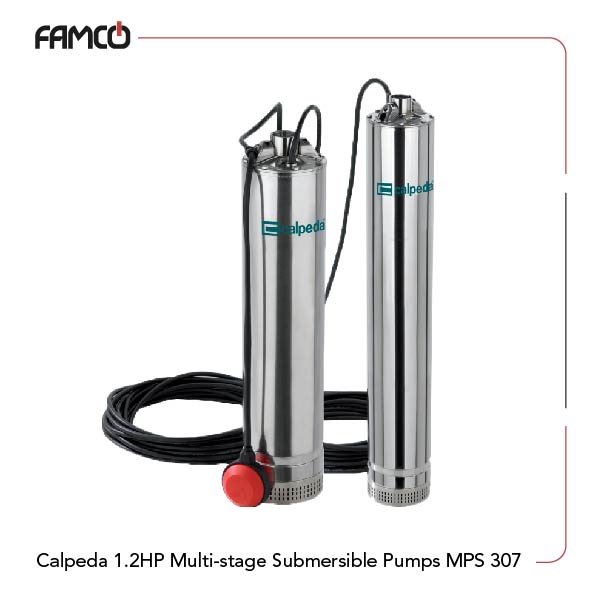

Calpeda 1.2HP Multi-stage Submersible Pump MPS 307 Specifications
Calpeda 1.2HP submersible pump MPS 307 is built to last while offering efficient operation in various environments. This Calpeda submersible pump handles liquid temperatures up to 35° C, which is suitable for a range of applications. The minimum immersion depth is 100 mm, while the maximum depth reaches 20 m, provided the cable length is appropriate. A frequency of 50 Hz and a rotation speed of approximately 2900 rpm guarantees a smooth operation. The voltage options include single-phase at 230 V and three-phase at 230-400 V. The insulation class is rated F to enhance the overall durability of the pump. Additionally, it has a protection class of IP X8 which is a must for continuous immersion. This Calpeda 1.2HP features a triple impregnation for humidity-proof dry winding that safeguards its reliability. It is equipped with 7 impellers made from PPO-GF20 (Noryl) and a shaft made of chrome-nickel steel (AISI 304). The mechanical seals consist of all high-quality materials that resemble longevity in performance. The lubrication oil used in this product is easily accessible being the kind suitable for food machinery and pharmaceutical applications.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 7 | |
| Power (kW) | 0.9 | |
| Power (HP) | 1.2 | |
| Head (m) | 27-75 | |
Calpeda 1.2HP Multi-stage Submersible Pump MPS 307 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbon, Silicon carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutic use Oil

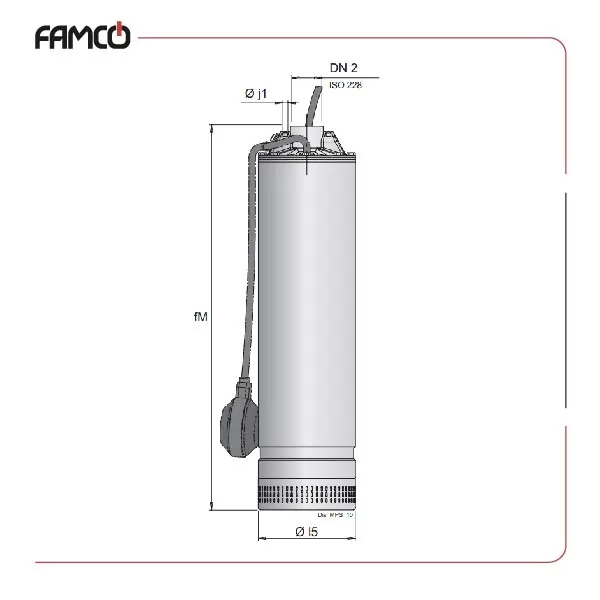

Calpeda 1.2HP Multi-stage Submersible Pump MPS 307 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MPS 307 | G 1 1/4 | 601 | 7 | 133 | 13.6 |
| MPSM 307 | G 1 1/4 | 601 | 7 | 133 | 15 |

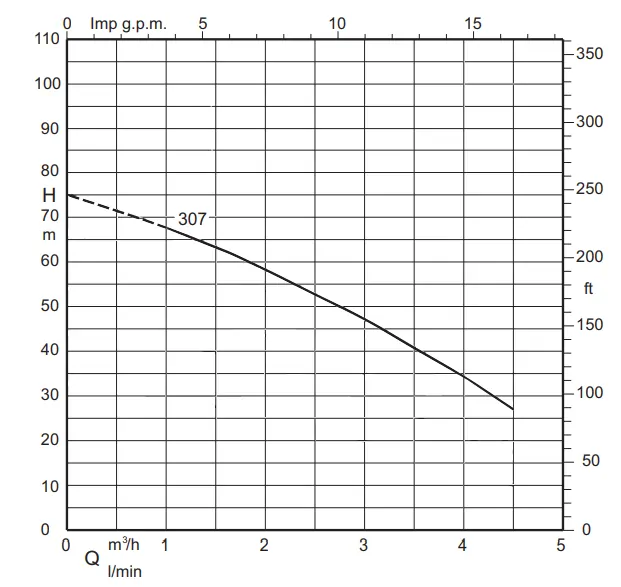

Calpeda 1.2HP Multi-stage Submersible Pump MPS 307 Performance Data
| Q= m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 |
| Q=l/min | 0 | 16.66 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 |
| H (m) | 75 | 71 | 66.5 | 61 | 55 | 49 | 42 | 35 | 27 |
Calpeda 1.2HP Multi-stage Submersible Pump MPS 307 Applications
- Food processing and handling
- Pharmaceutical manufacturing
- Water treatment facilities
- Industrial cooling systems
Calpeda 1.2HP Multi-stage Submersible Pump MPS 307 Benefits
- High durability with IP X8 protection
- Efficient operation with low power consumption
- Versatile applications across industries
- Reliable performance with advanced sealing technology
Calpeda 1.2HP Multi-stage Submersible Pump MPS 307 Price List
| No. | Name | Price |
| 1 | Calpeda 1.2HP Multi-stage Submersible Pump MPS 307 Price | Contact us |
