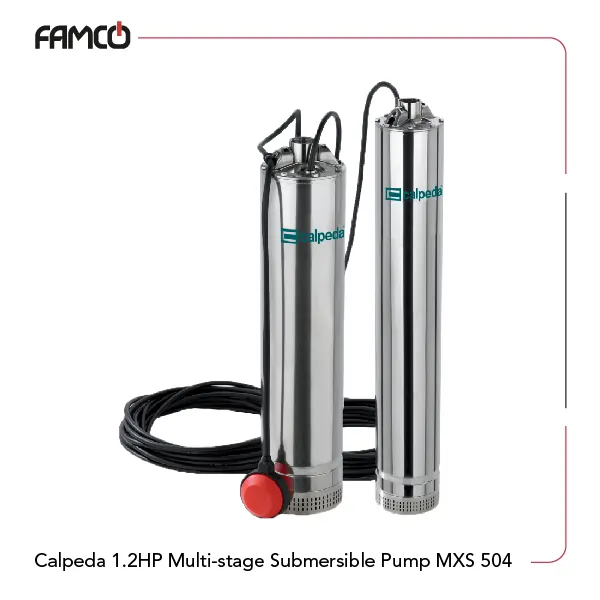

Calpeda 1.2HP Multi-stage Submersible Drainage Pump MXS 504 Specifications
Calpeda 1.2HP multi-stage submersible pump MXS 504 is designed for efficient operation in various liquid environments. It can handle liquid temperatures up to 35° C and has a minimum immersion depth of 100 mm which is suitable for diverse applications. The maximum immersion depth of this Calpeda pump reaches 20 m when paired with the appropriate cable length. This pump has a two-pole design and a frequency of 50 Hz, operating at a rotation speed of approximately 2900 rpm. The voltage options include single-phase at 230V and three-phase at 230-400V. This Calpeda submersible pump also features an insulation class of F and a protection class of IP X8 for utmost durability even under continuous immersion. The humidity-proof dry winding of this product is achieved through triple impregnation to maximize its reliability. This solid pump is equipped with eight impellers made from PPO-GF20 (Noryl) and a shaft constructed from chrome-nickel steel (AISI 304). A power output of 0.9 kW (1.2 HP) and a head range of 13-43 m has made this product versatile and efficient for various pumping needs.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 8 | |
| Power (kW) | 0.9 | |
| Power (HP) | 1.2 | |
| Head (m) | 13-43 | |
Calpeda 1.2HP Multi-stage Submersible Drainage Pump MXS 504 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbon, Silicon Carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutic use Oil

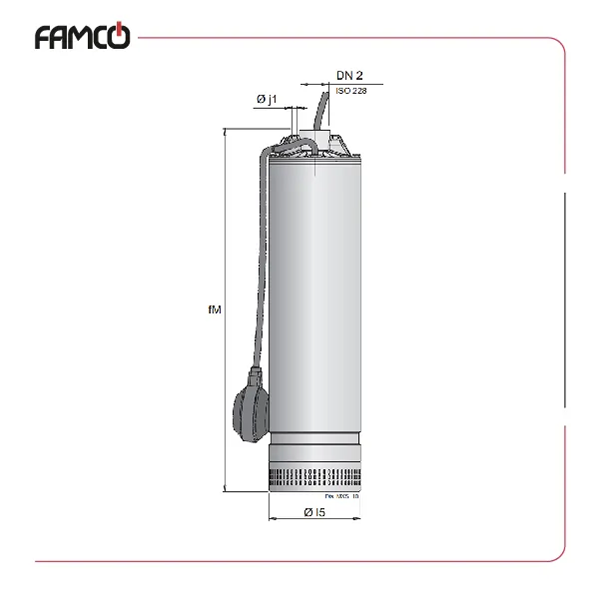

Calpeda 1.2HP Multi-stage Submersible Drainage Pump MXS 504 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MXS 504 | G 1 1/4 | 553 | 7 | 133 | 14 |
| MXSM 504 | G 1 1/4 | 553 | 7 | 133 | 15.8 |

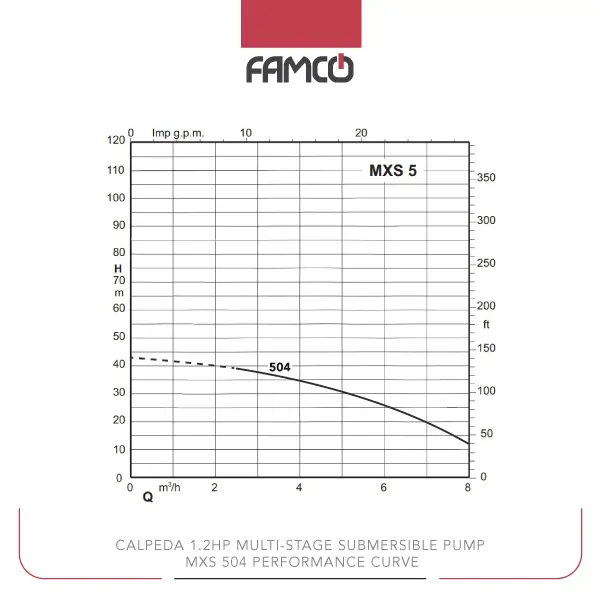

Calpeda 1.2HP Multi-stage Submersible Drainage Pump MXS 504 Technical Data
| m3 /h | 0 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7 | 8 |
| l/min | 0 | 41.6 | 50 | 58.3 | 66.6 | 75 | 83.3 | 100 | 117 | 133 |
| H (m) | 43 | 39 | 38 | 36.5 | 34.5 | 33 | 30.5 | 25.5 | 19.5 | 13 |
Calpeda 1.2HP Multi-stage Submersible Drainage Pump MXS 504 Applications
- Food processing and handling
- Pharmaceutical manufacturing
- Water treatment facilities
- Industrial liquid transfer
Calpeda 1.2HP Multi-stage Submersible Drainage Pump MXS 504 Benefits
- High efficiency with low power consumption
- Durable construction for long-lasting use
- Versatile for various liquid types
- Safe for food and pharmaceutical applications
