Calpeda 1.2HP Multi-stage Submersible Pump MXS 307 Specifications
This product is designed for efficient operation in various liquid environments. This Calpeda submersible pump handles liquid temperatures up to 35° C and has a minimum immersion depth of 100 mm, with a maximum depth of 20 m when using an appropriate cable length. The product’s motor operates at a frequency of 50 Hz and has a rotation speed of approximately 2900 rpm. This sturdy product is available in both single-phase (230 V) and three-phase (230-400 V) configurations. The insulation class is rated as F, to maximize reliable performance. The IP X8 protection class in this pump is required and well-suited for continuous immersion. This unit features a triple impregnation for humidity-proof dry winding to increase its durability. It has seven impellers made from PPO-GF20 (Noryl) and a shaft constructed from chrome-nickel steel (AISI 304). The mechanical seals are made from high-quality materials to enhance longevity and reliability.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 7 | |
| Power (kW) | 0.9 | |
| Power (HP) | 1.2 | |
| Head (m) | 27-75 | |
Calpeda 1.2HP Multi-stage Submersible Pump MXS 307 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbone, Silicon Carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutical Oil

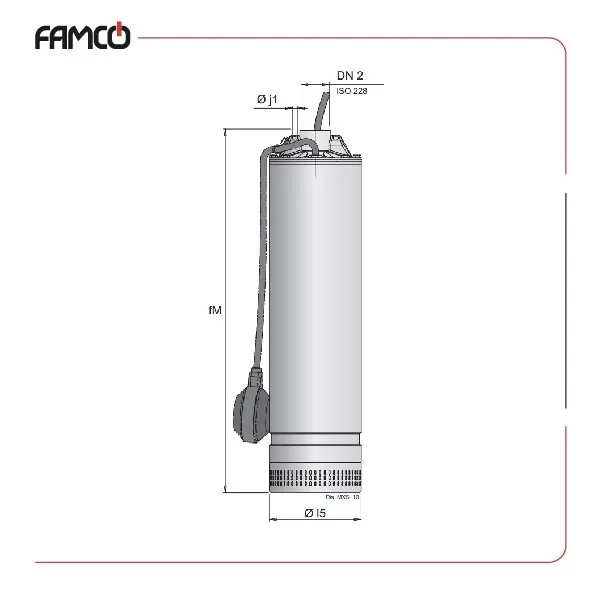

Calpeda 1.2HP Multi-stage Submersible Pump MXS 307 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MXS 307 | G 1 1/4 | 601 | 7 | 133 | 16 |
| MXSM 307 | G 1 1/4 | 601 | 7 | 133 | 17.7 |

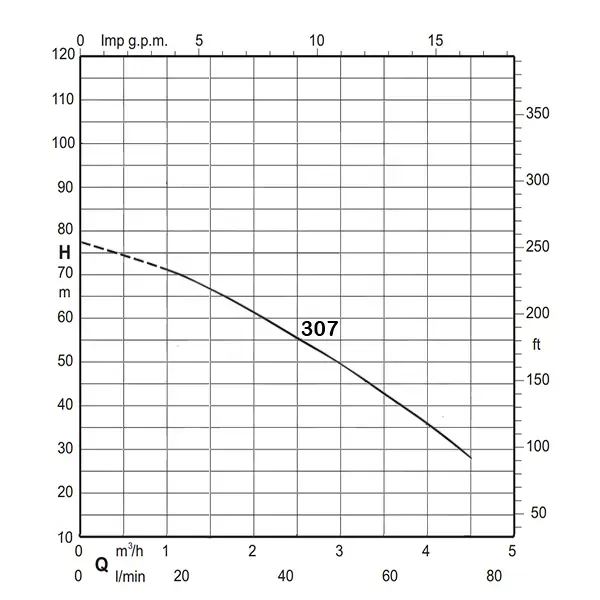

Calpeda 1.2HP Multi-stage Submersible Pump MXS 307 Performance Data
| Q= m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 |
| Q=l/min | 0 | 16.66 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 |
| H (m) | 77.5 | 71 | 66.5 | 61 | 55 | 49 | 42 | 35 | 27 |
Calpeda 1.2HP Multi-stage Submersible Pump MXS 307 Applications
- Liquid transfer in food processing industries
- Pharmaceutical applications requiring sterile conditions
- Irrigation systems for agriculture
- Water management in industrial settings
Calpeda 1.2HP Multi-stage Submersible Pump MXS 307 Benefits
- High efficiency with low power consumption
- Durable construction for long-lasting use
- Versatile applications across multiple industries
- Reliable performance under continuous immersion conditions
Calpeda 1.2HP Multi-stage Submersible Pump MXS 307 Price List
| No. | Name | Price |
| 1 | Calpeda 1.2HP Multi-stage Submersible Pump MXS 307 Price | Contact us |
