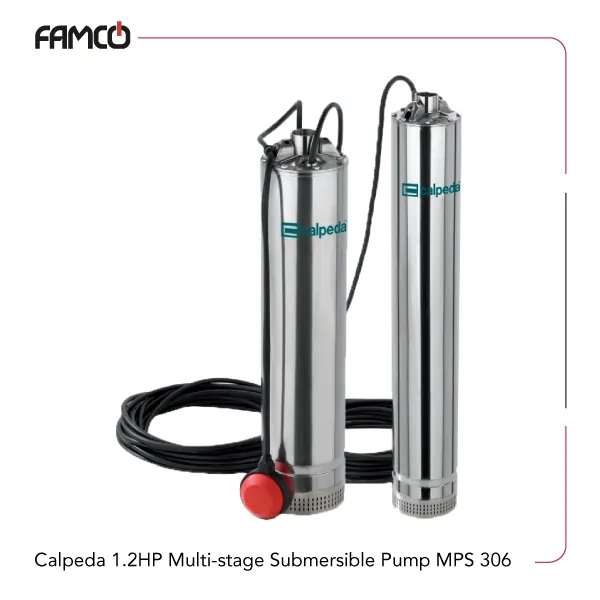

Calpeda 1.2HP Multi-stage Submersible Pump MPS 306 Specifications
Calpeda 1.2HP multi-stage submersible pump MPS 306 is designed for water supply from wells, tanks, or reservoirs. It is suitable for domestic, civil, and industrial applications, including garden use, irrigation, and rainwater harvesting systems. The pump can operate in water temperatures up to 35°C and is capable of being submerged up to 20 meters deep. This Calpeda submersible pump features a robust 2-pole motor that supports both single-phase and three-phase power supplies, making it adaptable to various setups. The insulation class is F, ensuring durability and safety during operation. Its protection rating of IP X8 guarantees resistance against water ingress, ideal for submerged use. The impeller is made of Noryl, a durable material that ensures efficient water movement. With a power output of 0.9 kW (1.2 HP), it can deliver a maximum head of 61 meters and flow rates up to 4.5 cubic meters per hour or 75 liters per minute. The current draw is 2.2 amps at 400V and 6 amps at 230V, making it energy-efficient and suitable for various power sources.
| Specification | Value |
| Liquid temperature (° C) | up to 35 |
| Maximum immersion depth (m) | 20 |
| Motor | 2-pole |
| Number of phases | single- and three-phase |
| Insulation class | F |
| Protection | IP X8 |
| Impeller | Noryl |
| Power (kW) | 0.9 |
| Power (HP) | 1.2 |
| Maximum delivery head (m) | 61 |
| Maximum flow rate (m3/h) | 4.5 |
| Maximum flow rate (L/min) | 75 |
| Current (A) | 2.2 (400V)/ 6 (230V) |

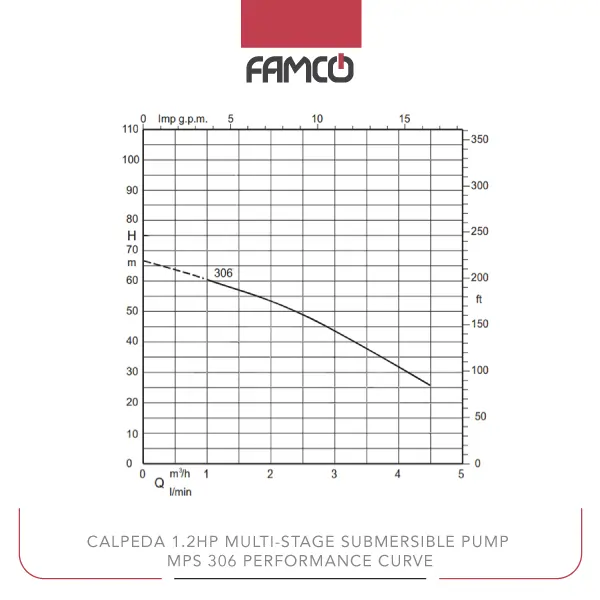

Calpeda 1.2HP Multi-stage Submersible Pump MPS 306 Performance Data
| m3/h | 0 | 1 | 1,5 | 2 | 2,5 | 3 | 3,5 | 4 | 4,5 |
| l/min | 16,66 | 25 | 33,33 | 41,66 | 50 | 58,33 | 66,66 | 75 | |
| m | 66,5 | 61 | 58 | 54 | 49 | 43 | 37 | 30,5 | 23 |

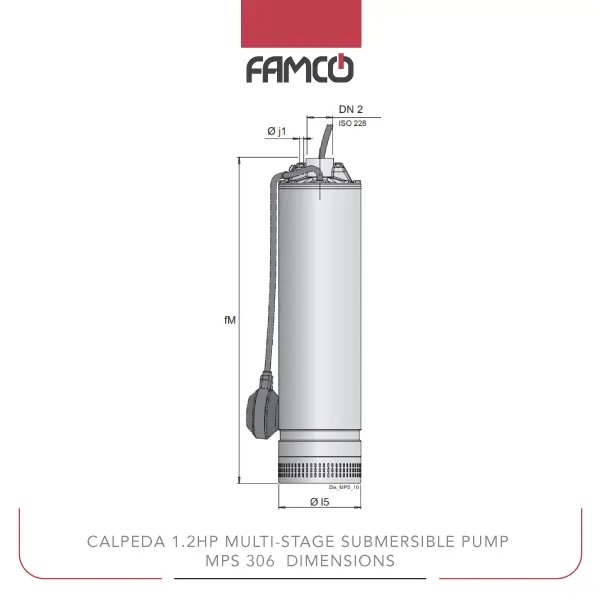

Calpeda 1.2HP Multi-stage Submersible Pump MPS 306 Dimensions
Calpeda 1.2HP Multi-stage Submersible Pump MPS 306 Applications
- Water supply from wells, tanks, or reservoirs
- Domestic, civil, and industrial water systems
- Garden irrigation and watering
- Rainwater harvesting systems
Calpeda 1.2HP Multi-stage Submersible Pump MPS 306 Benefits
- High efficiency with a maximum head of 61 meters
- Supports both single-phase and three-phase power sources
- Durable construction with IP X8 protection rating
- Suitable for water temperatures up to 35°C and submerged up to 20 meters
Calpeda 1.2HP Multi-stage Submersible Pump MPS 306 Price List
| No. | Name | Price |
| 1 | Calpeda 1.2HP Multi-stage Submersible Pump MPS 306 Price | Contact us |
