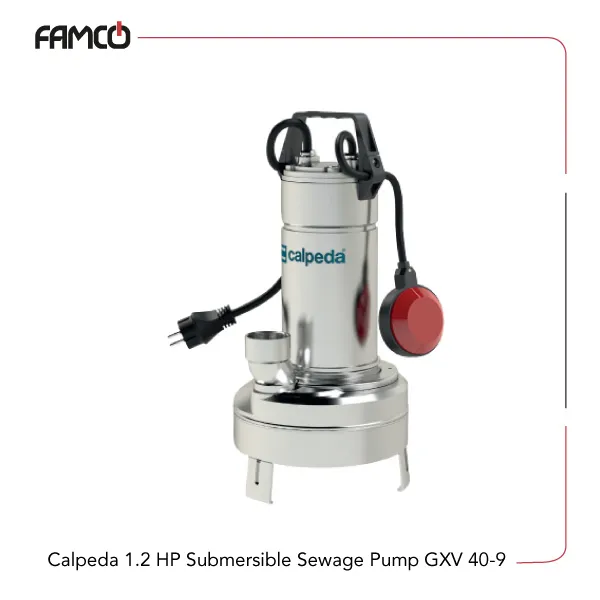

Calpeda 1.2 HP Submersible Sewage Pump GXV 40-9

Calpeda 1.2 HP Submersible Sewage Pump GXV 40-9 Specifications

This model sits in the upper end of the GXV line, built for situations where steady wastewater handling matters more than fancy features. The Calpeda submersible pump uses a 2-pole motor running near 2900 rpm and can be powered from either 230 V single-phase or 400 V three-phase supply. Chrome-nickel steel is used for both the casing and impeller, giving it enough toughness to work inside pits and tanks that see grit and dirty water. A pair of mechanical seals made from ceramic, carbon, and NBR keeps the motor section protected during continuous use at immersion depths up to 5 meters. As a Calpeda sewage pump, it pushes out up to 350 l/min with a 9-meter head, making it a practical choice for wastewater pits, collection wells, and small industrial drainage setups. Depending on the version, the unit weighs 11.1 kg or 13 kg.

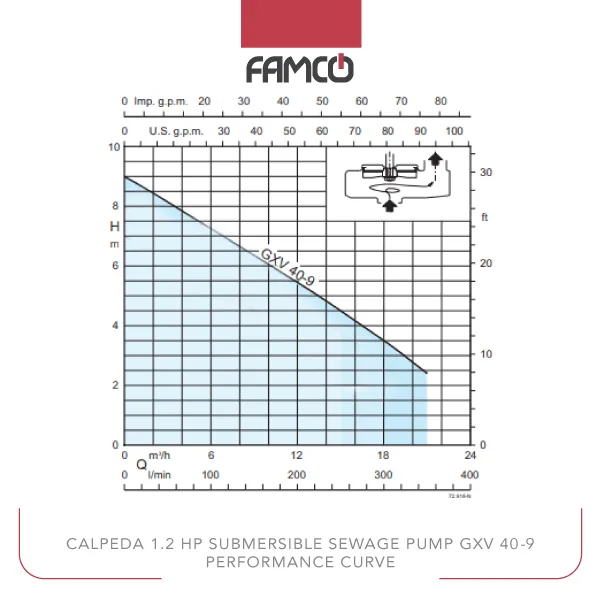

Calpeda 1.2 HP Submersible Sewage Pump GXV 40-9 Performance Data

Calpeda 1.2 HP Submersible Sewage Pump GXV 40-9 Applications

• Irrigation systems in agriculture
• Water supply for residential buildings
• Drainage and flood control
• Industrial water transfer

Calpeda 1.2 HP Submersible Sewage Pump GXV 40-9 Benefits

• High durability due to chrome-nickel steel construction
• Supports both single-phase and three-phase power sources
• Waterproof protection up to 5 meters depth
• Reliable mechanical seals for long-term use

Calpeda 1.2 HP Submersible Sewage Pump GXV 40-9 Price List
