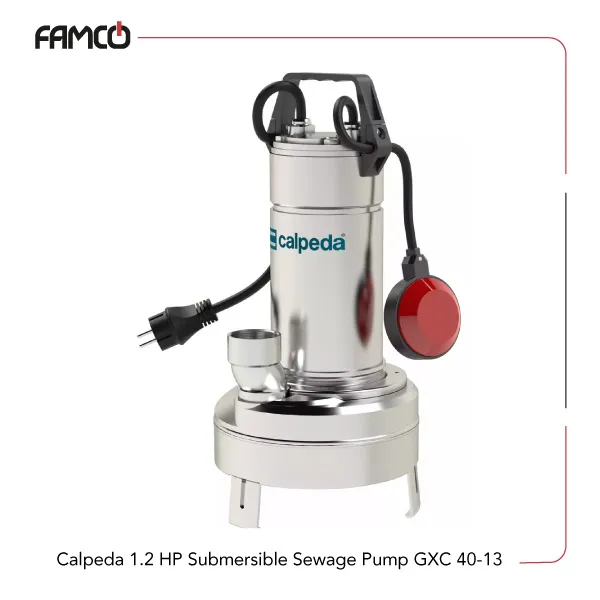

Calpeda 1.2 HP Submersible Sewage Pump GXC 40-13 Specifications
Many technicians appreciate how this model fits into systems that rely on Calpeda submersible pumps, mainly because it offers strong performance without being complicated to run. Its 12.9 meter head gives enough pressure for small irrigation lines or lift stations, while the 433 liter per minute output handles everyday drainage work smoothly. Across wastewater setups, the unit also finds a place beside other Calpeda sewage pumps since the chrome nickel construction holds up well in wet, abrasive environments. The mechanical seals and insulation class F motor help the pump stay stable during long submerged cycles, which is important for sites that require continuous or near-continuous operation. Installers often choose it when they want a pump that fits into tight spaces but still offers enough power for practical field use. Overall, it works well as a dependable option for water management tasks in homes, farms, and light commercial systems.
| Specification | Value |
| Number of Poles | 2 |
| Single-phase Voltage (V) | 230 |
| Three-phase Voltage (V) | 400 |
| Speed (rpm) | ≈2900 |
| Insulation Class | F |
| Protection | IP X8 |
| Immersion Depth (m) | 5 |
| Pump Casing | Chrome-nickel steel |
| Impeller | Chrome-nickel steel |
| Upper Mechanical Seal | Ceramic / Carbon / NBR |
| Lower Mechanical Seal | Ceramic / Carbon / NBR |
| Power (kW) | 0.9 |
| Power (HP) | 1.2 |
| Head (m) | 12.9 |
| Flow Rate (l/min) | 433 |
| Weight (kg) | 11.3 (single-phase), 13.3 (three-phase) |

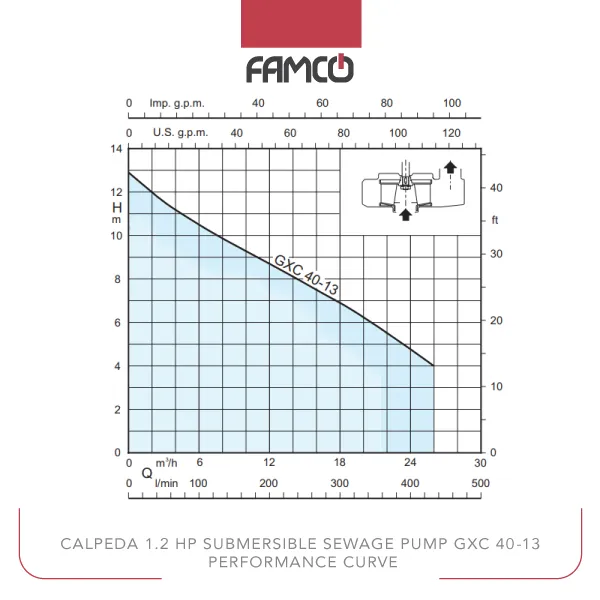

Calpeda 1.2 HP Submersible Sewage Pump GXC 40-13 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 26 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 433 |
| Head (m) | 12.9 | 11.6 | 10.5 | 9.5 | 8.7 | 7.8 | 6.9 | 5.9 | 4.7 | 4 |
Calpeda 1.2 HP Submersible Sewage Pump GXC 40-13 Applications
- Irrigation systems for farms and gardens
- Water transfer in industrial settings
- Submersible water pumping for construction sites
- Flood control and drainage systems
Calpeda 1.2 HP Submersible Sewage Pump GXC 40-13 Benefits
- High corrosion resistance due to chrome-nickel steel construction
- Suitable for underwater use up to 5 meters deep
- Efficient performance with a high flow rate and head
- Durable and safe with insulation class F and IP X8 protection
Calpeda 1.2 HP Submersible Sewage Pump GXC 40-13 Price List
| No. | Name | Price |
| 1 | Calpeda 1.2 HP Submersible Sewage Pump GXC 40-13 Price | Contact us |
