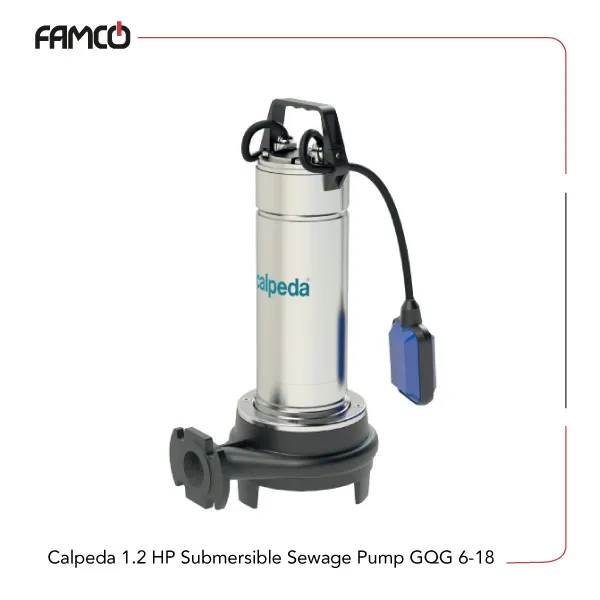

Calpeda 1.2 HP Submersible Sewage Pump GQG 6-18 Specifications
This pump features a robust cast iron casing and impeller, making it suitable for demanding environments. It operates with a 2-pole motor and supports both single-phase (230V) and three-phase (400V) power supplies. The motor power is 0.9 kW, equivalent to 1.2 HP, providing a maximum head of 18 meters and a flow rate of 280 liters per minute. Designed for continuous duty, it can operate submerged at depths up to 5 meters, with a minimum immersion requirement of 300 mm. The pump’s seals are made of ceramic, carbon, and NBR, ensuring this Calpeda submersible pump’s sealing durability. It is capable of handling liquids at temperatures up to 35 °C, making it suitable for various industrial and water management applications. The Calpeda sewage pump‘s weight varies slightly depending on the power supply, with 18.4 kg for single-phase and 21.8 kg for three-phase models. This Calpeda sewage pump’s construction and specifications make it ideal for applications requiring efficient liquid transfer and reliable operation in submerged conditions.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Grinder | included in GQ series |
| Maximum liquid temperature | 35 °C |
| Immersion depth | 5 m max |
| Minimum immersion depth | 300 mm |
| Continuous duty | with submerged motor |
| Pump casing | Cast iron |
| Impeller | Cast iron |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Ceramic / Carbon / NBR |
| Power (kW) | 0.9 |
| Power (HP) | 1.2 |
| Head (m) | 18 |
| Flow rate (l/min) | 280 |
| Single-phase weight (kg) | 18.4 |
| Three-phase weight (kg) | 21.8 |

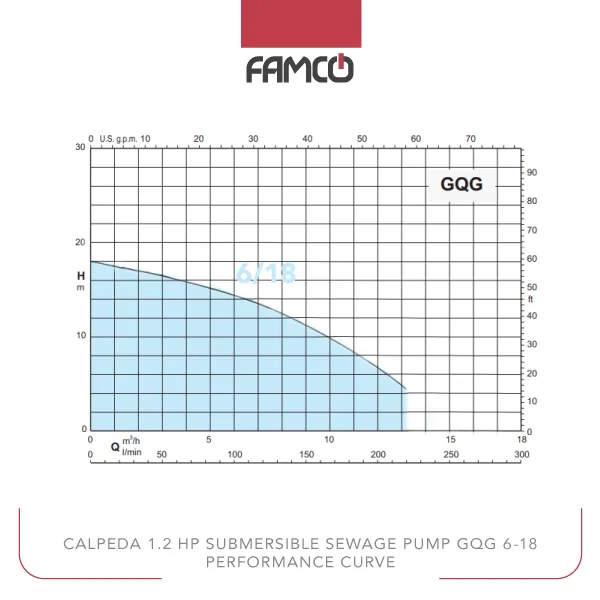

Calpeda 1.2 HP Submersible Sewage Pump GQG 6-18 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 13.2 |
| l/min | 0 | 50 | 100 | 150 | 200 | 220 |
| Head (m) | 18 | 16.5 | 14.5 | 11.2 | 6.5 | 4.5 |
Calpeda 1.2 HP Submersible Sewage Pump GQG 6-18 Applications
- Water drainage and sewage management
- Irrigation systems in agriculture
- Industrial liquid transfer
- Flood control and emergency water removal
Calpeda 1.2 HP Submersible Sewage Pump GQG 6-18 Benefits
- Durable cast iron construction for long-lasting use
- Supports both single-phase and three-phase power options
- High flow rate and maximum head for efficient operation
- Suitable for continuous submerged duty in demanding environments
Calpeda 1.2 HP Submersible Sewage Pump GQG 6-18 Price List
| No. | Name | Price |
| 1 | Calpeda 1.2 HP Submersible Sewage Pump GQG 6-18 Price | Contact us |
