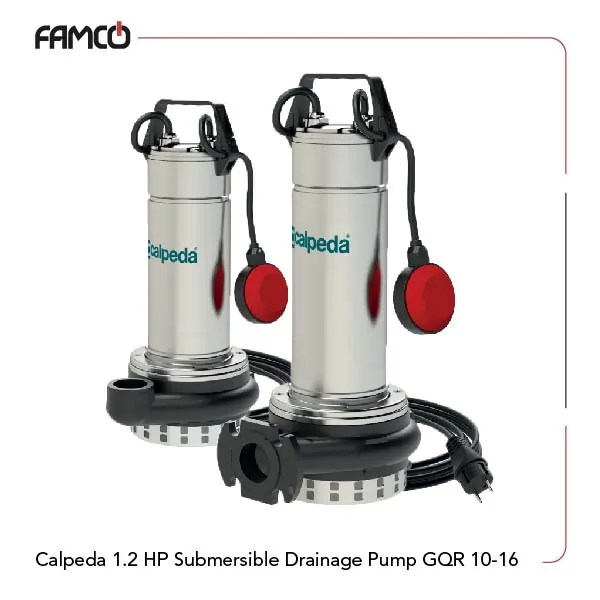

Calpeda 1.2 HP Submersible Drainage Pump GQR 10-16 Specifications
Calpeda 1.2 HP submersible drainage pump GQR 10-16 features a solid design with a two-pole motor operating at 50 Hz. This Calpeda drainage pump supports both three-phase (230-400V) and single-phase (230V) voltage options. The insulation class is rated F to improve its durability and reliability in the longer run. This product has an IP X8 protection rating, making it suitable for continuous immersion in water. This pump can handle liquid temperatures up to 35°C and has a maximum immersion depth of 5 meters for various applications. The single-impeller inside this product, made from cast iron, enables this pump to perform efficiently. The product’s handle is made from polypropylene, and the shaft is crafted from chrome-nickel steel for added strength. The mechanical seals are designed with ceramic, carbon, and NBR materials, to provide users with excellent sealing capabilities. This pump operates at a power of 0.9 kW (1.2 HP) and can achieve a head of 2.3 to 16 meters, weighing 16 kg in total.
| Specification | Value | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Voltage (V) | three-phase | 230-400 |
| single-phase | 230 | |
| Insulation class | F | |
| Protection | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| Maximum immersion depth | 5 m | |
| Minimum immersion depth | 205 mm | |
| Continuous duty | with submerged motor | |
| Liquid temperature | up to 35° C | |
| No. of impellers | single-impeller | |
| Power (kW) | 0.9 | |
| Power (HP) | 1.2 | |
| Head (m) | 2.3-16 | |
| Weight (kg) | 16 | |
Calpeda 1.2 HP Submersible Drainage Pump GQR 10-16 Materials
- Pump casing: Cast iron GJL EN 1561
- Impeller: Cast iron GJL EN 1561
- Handle: Polypropylene (with frame made of 1.4301 EN 10088 (AISI 304)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Ceramic / Carbon / NBR
- Lower mechanical seal: Ceramic / Carbon / NBR
- Seal lubrication oil: Oil for food/pharmaceutical machinery
Calpeda 1.2 HP Submersible Drainage Pump GQR 10-16 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 |
| Head (m) | 12 | 11.6 | 11 | 10.2 | 9 | 7.5 | 5.5 | 3.2 |
Calpeda 1.2 HP Submersible Drainage Pump GQR 10-16 Applications
- Irrigation systems for agriculture
- Water supply in residential areas
- Industrial fluid transfer
- Wastewater management
Calpeda 1.2 HP Submersible Drainage Pump GQR 10-16 Benefits
- Durable construction with cast iron components
- High efficiency with low power consumption
- Suitable for continuous immersion in water
- Versatile applications across various industries
Calpeda 1.2 HP Submersible Drainage Pump GQR 10-16 Price List
| No. | Name | Price |
| 1 | Calpeda 1.2 HP Submersible Drainage Pump GQR 10-16 Price | Contact us |
