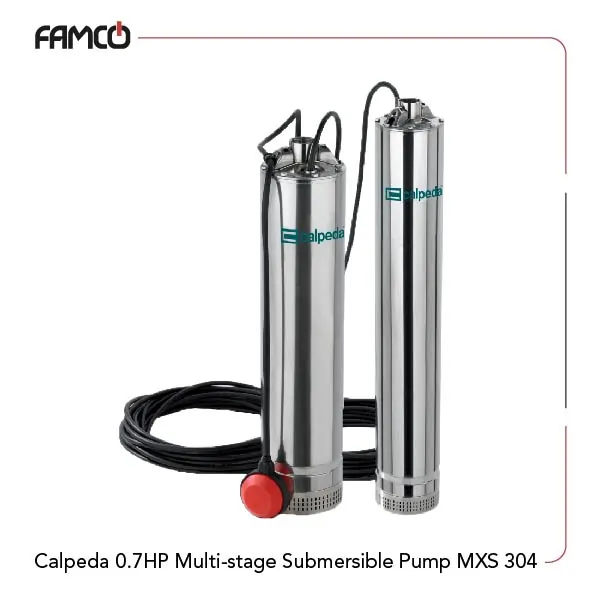

Calpeda 0.7HP Multi-stage Submersible Pump MXS 304 Specifications
Calpeda 0.7HP multi-stage submersible pump MXS 304 is designed for efficient operation in various environments. This Calpeda submersible pump can handle transferring liquid temperatures up to 35° C and has a minimum immersion depth of 100 mm with optimal performance. The maximum depth of 20 m when using the appropriate cable length is also achievable. This motor operates at a frequency of 50 Hz and has a rotation speed of approximately 2900 rpm. This sturdy pump is available in both single-phase (230 V) and three-phase (230-400 V) configurations. The insulation class is rated F to enhance the product’s durability and safety in demanding conditions. The protection class is IP X8 which is suitable for continuous immersion. This Dab submersible pump features triple impregnation for humidity-proof dry winding that improves its longevity. Four impellers are embedded in its design and are made from PPO-GF20 (Noryl). A sturdy shaft made of chrome-nickel steel also indicates this unit is built to last. The mechanical seals are designed with high-quality materials for a reliable and consistent operation from the beginning to the end. The lubrication oil used is suitable for food machinery and pharmaceutical applications and has easy access.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 4 | |
| Power (kW) | 0.55 | |
| Power (HP) | 0.75 | |
| Head (m) | 16-44 | |
Calpeda 0.7HP Multi-stage Submersible Pump MXS 304 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbon, Silicon Carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutical Oil

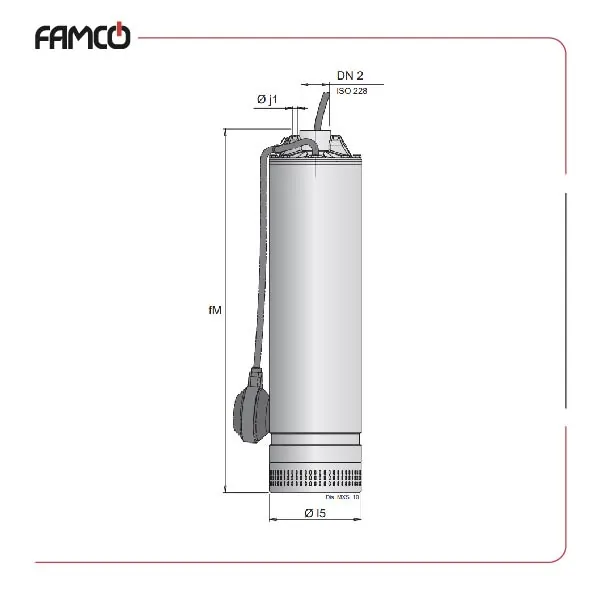

Calpeda 0.7HP Multi-stage Submersible Pump MXS 304 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MXS 304 | G 1 1/4 | 504 | 7 | 133 | 13.3 |
| MXSM 304 | G 1 1/4 | 504 | 7 | 133 | 14.1 |

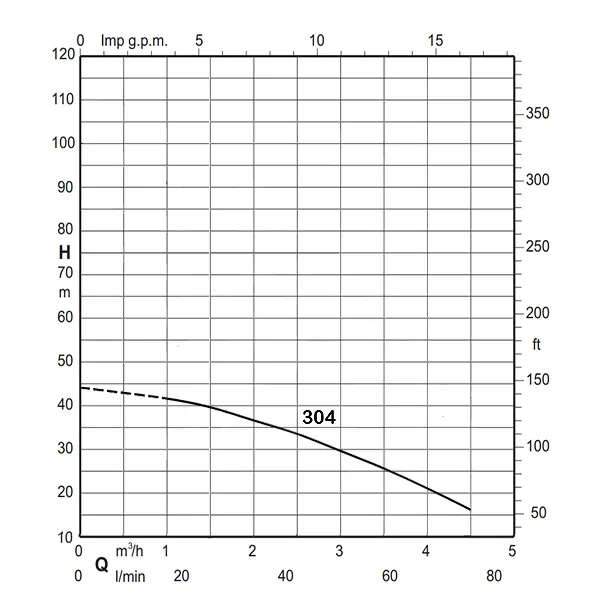

Calpeda 0.7HP Multi-stage Submersible Pump MXS 304 Performance Data
| Q= m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 |
| Q=l/min | 0 | 16.66 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 |
| H (m) | 44 | 41.5 | 39.5 | 36.5 | 33.5 | 29.5 | 25.5 | 21 | 16 |
Calpeda 0.7HP Multi-stage Submersible Pump MXS 304 Applications
- Water supply systems
- Industrial liquid transfer
- Food processing applications
- Pharmaceutical manufacturing
Calpeda 0.7HP Multi-stage Submersible Pump MXS 304 Benefits
- Durable construction for long-lasting use
- High efficiency with low power consumption
- Suitable for food and pharmaceutical applications
- Reliable performance in continuous immersion conditions
Calpeda 0.7HP Multi-stage Submersible Pump MXS 304 Price List
| No. | Name | Price |
| 1 | Calpeda 0.7HP Multi-stage Submersible Pump MXS 304 Price | Contact us |
