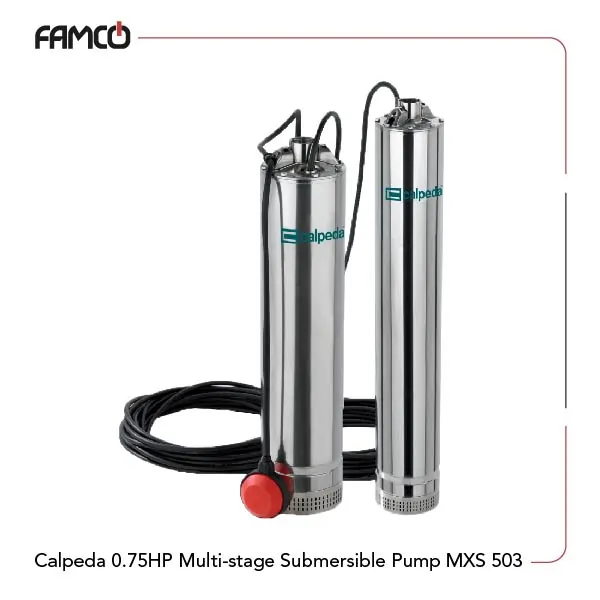

Calpeda 0.75HP Multi-stage Submersible Pump MXS 503 Specifications
Calpeda multi-stage submersible pump MXS 503 is designed for efficient liquid handling with a maximum temperature of 35° C. This Calpeda pump functions with a minimum immersion depth of 100 mm and can operate at depths of up to 20 m, given the appropriate cable length. The motor runs at a frequency of 50 Hz with a rotation speed of approximately 2900 rpm to generate efficient output. This Calpeda submersible pump is available in both single-phase (230 V) and three-phase (230-400 V) configurations. The insulation class is rated F for durability and safety. This pump has an IP X8 protection class rendering this unit suitable for continuous immersion in liquids. The impeller design includes 8 units made from PPO-GF20 (Noryl), while the shaft is constructed from high-quality chrome-nickel steel (AISI 304). The mechanical seals are powerful, and are made from materials like steatite and silicon carbide to maximize reliable operation. This product is also equipped with lubrication oil suitable for food and pharmaceutical applications, which is versatile for various industries.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 8 | |
| Power (kW) | 0.55 | |
| Power (HP) | 0.75 | |
| Head (m) | 8-32.2 | |
Calpeda 0.75HP Multi-stage Submersible Pump MXS 503 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: hrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Carbone, Silicon Carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutic use Oil
Calpeda 0.75HP Multi-stage Submersible Pump MXS 503 Dimensions
| Dimensions (mm) | ||||
| Model | DN2 | fM | j1 | l5 |
| MXS 503 | G 1 1/4 | 504 | 7 | 133 |
| MXSM 503 | G 1 1/4 | 504 | 7 | 133 |

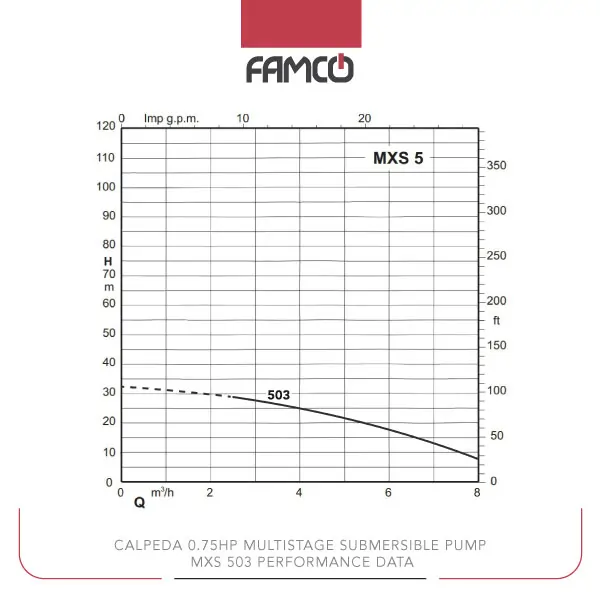

Calpeda 0.75HP Multi-stage Submersible Pump MXS 503 Performance Data
| m3 /h | 0 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7 | 8 |
| l/min | 0 | 41.6 | 50 | 58.3 | 66.6 | 75 | 83.3 | 100 | 117 | 133 |
| H (m) | 32.2 | 28.5 | 27.5 | 26 | 24.5 | 22.5 | 21.5 | 18 | 13.5 | 8 |
Calpeda 0.75HP Multi-stage Submersible Pump MXS 503 Applications
- Food processing and handling
- Pharmaceutical manufacturing
- Water treatment facilities
- Industrial liquid transfer systems
Calpeda 0.75HP Multi-stage Submersible Pump MXS 503 Benefits
- High efficiency with low power consumption
- Durable construction for long-lasting use
- Safe operation in continuous immersion conditions
- Versatile applications across multiple industries
Calpeda 0.75HP Multi-stage Submersible Pump MXS 503 Price List
| No. | Name | Price |
| 1 | Calpeda 0.75HP Multi-stage Submersible Pump MXS 503 Price | Contact us |
