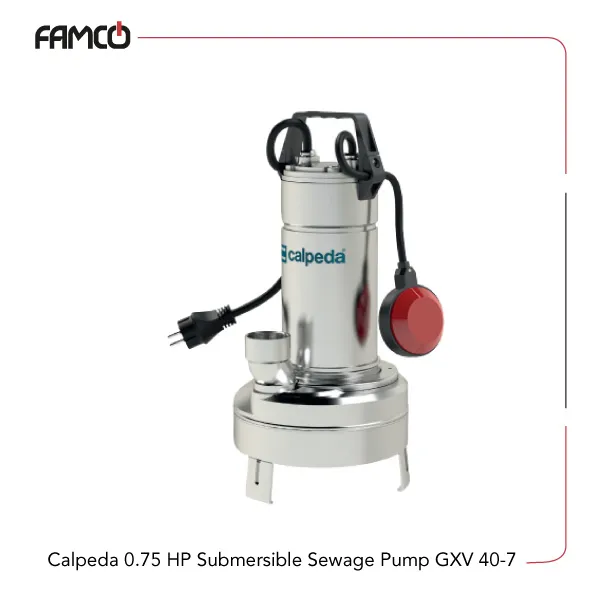

Calpeda 0.75 HP Submersible Sewage Pump GXV 40-7 Specifications
This model often appears in systems that rely on Calpeda submersible pumps because it performs well without adding complexity to the job. Even with its compact size, the GXV 40-7 offers enough output for routine drainage or circulation tasks, moving up to 350 liters per minute with a steady 7 meter head. In wastewater applications, it stands alongside other Calpeda sewage pumps thanks to its chrome nickel build, which helps it handle damp and mildly aggressive conditions. The insulation class F motor and dual mechanical seals give it the stability required for extended submerged use, especially in pits, basins, and sump setups. Installers appreciate its light weight and flexible electrical compatibility, which make it easy to slot into tight spaces or replace older units without major adjustments. It’s a dependable option for small-scale water management across residential and light commercial environments.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Speed (rpm) | ≈2900 |
| Insulation class | F |
| Protection | IP X8 |
| Immersion depth | 5 m max |
| Pump casing | Chrome-nickel steel |
| Impeller | Chrome-nickel steel |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Ceramic / Carbon / NBR |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Head (m) | 7 |
| Flow rate (l/min) | 350 |
| Single-phase weight (kg) | 10 |
| Three-phase weight (kg) | 11.2 |

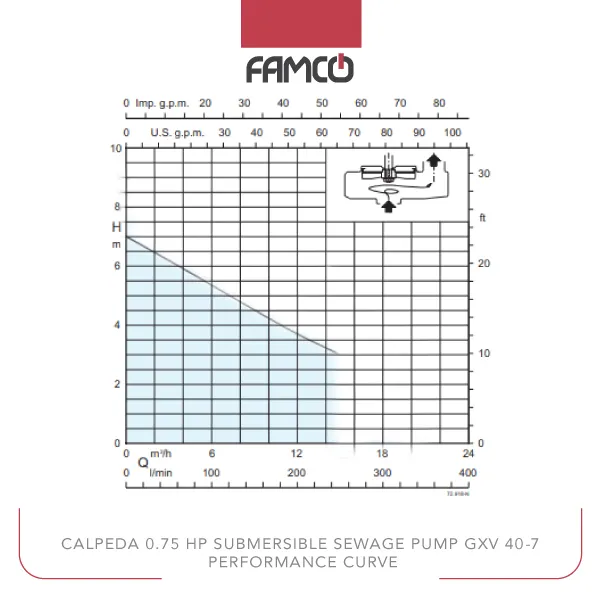

Calpeda 0.75 HP Submersible Sewage Pump GXV 40-7 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 |
| Head (m) | 7 | 6.2 | 5.4 | 4.6 | 3.7 | 3 |
Calpeda 0.75 HP Submersible Sewage Pump GXV 40-7 Applications
- Water transfer in residential settings
- Drainage of flooded areas
- Irrigation systems
- Industrial fluid circulation
Calpeda 0.75 HP Submersible Sewage Pump GXV 40-7 Benefits
- Durable chrome-nickel steel construction
- Supports both single and three-phase power supplies
- High protection rating for wet environments
- Reliable mechanical seals for long-term use
Calpeda 0.75 HP Submersible Sewage Pump GXV 40-7 Price List
| No. | Name | Price |
| 1 | Calpeda 0.75 HP Submersible Sewage Pump GXV 40-7 Price | Contact us |
There are no reviews yet.
