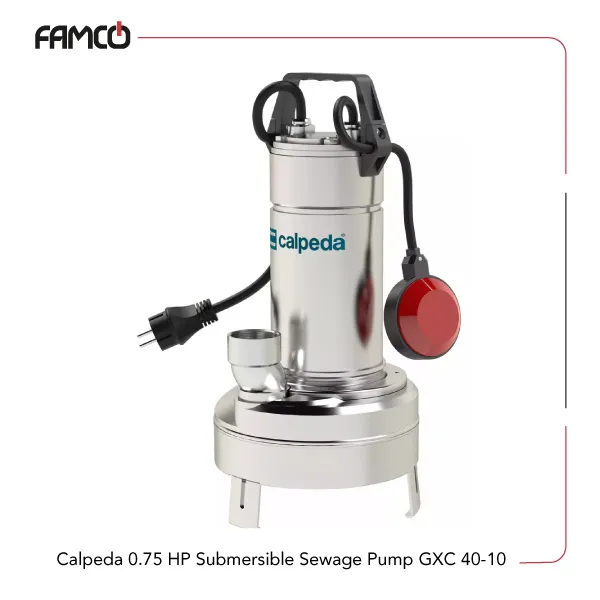

Calpeda 0.75 HP Submersible Sewage Pump GXC 40-10 Specifications
Many installers lean toward this model because it handles everyday water transfer tasks without excessive complexity, which is something often appreciated in projects that involve Calpeda sewage pumps. The steady 433 liters per minute it provides is more than enough for basins, sumps, and small industrial stations where consistent circulation matters. Its stainless alloy casing holds up well in moisture-heavy environments, which is one of the reasons Calpeda submersible pumps are commonly selected for long-term use. The motor’s insulation and seal configuration help it maintain stable performance even during extended submerged operation. Facilities that need simple installation benefit from the pump’s moderate weight and the option to run it on either 230 V or 400 V supply. In practice, the GXC 40-10 fits comfortably into systems where reliability and compact size are more important than extreme pressure output, giving operators a dependable tool for routine water management.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Speed (rpm) | ≈2900 |
| Insulation class | F |
| Protection | IP X8 |
| Immersion depth | 5 m max |
| Pump casing | Chrome-nickel steel |
| Impeller | Chrome-nickel steel |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Ceramic / Carbon / NBR |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Head (m) | 10.4 |
| Flow rate (l/min) | 433 |
| Single-phase weight (kg) | 11 |
| Three-phase weight (kg) | 11.5 |

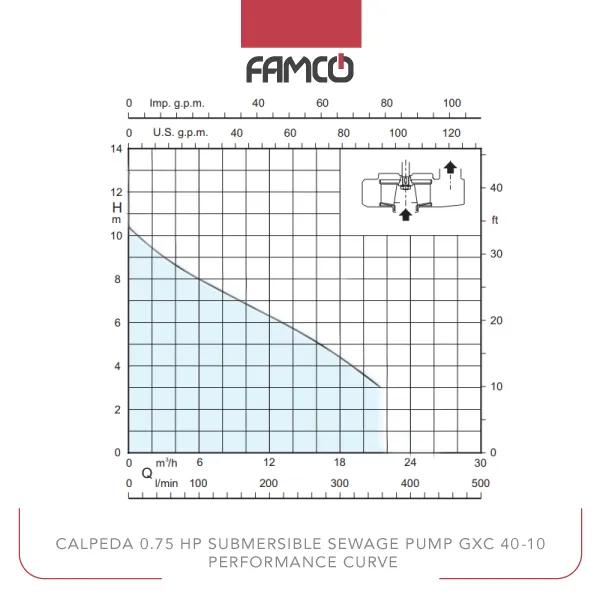

Calpeda 0.75 HP Submersible Sewage Pump GXC 40-10 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 |
| Head (m) | 10.4 | 9 | 8 | 7.1 | 6.3 | 5.4 | 4.4 | 3.2 |
Calpeda 0.75 HP Submersible Sewage Pump GXC 40-10 Applications
- Water drainage in industrial and residential settings
- Water circulation in irrigation systems
- Boosting water pressure in plumbing systems
- Submersible applications up to 5 meters deep
Calpeda 0.75 HP Submersible Sewage Pump GXC 40-10 Benefits
- Durable chrome-nickel steel construction resists corrosion
- Supports both single-phase and three-phase power sources
- High flow rate and sufficient head for various tasks
- Reliable mechanical seals ensure long-term performance
Calpeda 0.75 HP Submersible Sewage Pump GXC 40-10 Price List
| No. | Name | Price |
| 1 | Calpeda 0.75 HP Submersible Sewage Pump GXC 40-10 Price | Contact us |
