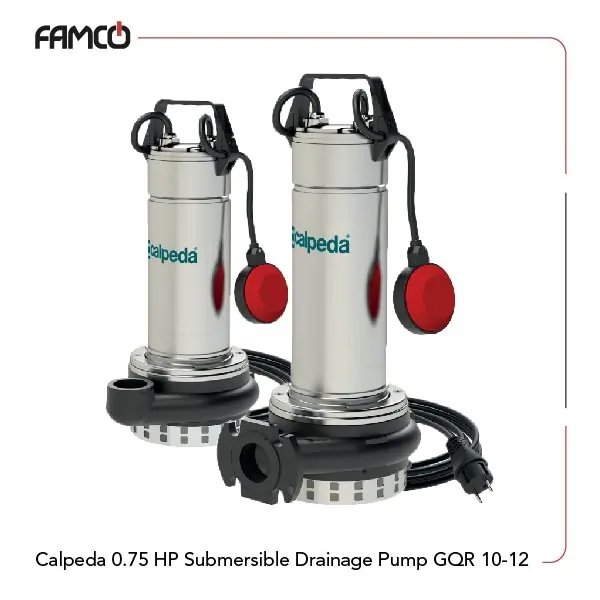

Calpeda 0.75 HP Submersible Drainage Pump GQR 10-12 Specifications
Calpeda 0.75 HP submersible drainage pump GQR 10-12 is designed for efficient performance in various applications. This Calpeda drainage pump operates at a maximum liquid temperature of 35° C and can be immersed up to 5 meters deep. The minimum immersion depth in this product is 205 mm to make it versatile for different environments. This product has a rotation speed of 2900 rpm and a power output of 0.55 kW (0.75 HP) offering strong performance. This pump features a single-impeller design and is constructed from durable materials, including cast iron for the casing and impeller. The shaft implemented in this product’s design is made from chrome-nickel steel to maximize its longevity and reliability. It has an insulation class of F and is protected with an IP X8 rating, suitable for continuous immersion. The mechanical seals are made from ceramic, carbon, and NBR, providing excellent sealing capabilities. Additionally, the lubrication oil used is suitable for food and pharmaceutical machinery, making it safe for various applications.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Maximum immersion depth | 5 m | |
| Minimum immersion depth | 205 mm | |
| No. of poles | 2 | |
| Rotation speed (rpm) | 2900 | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| Continuous duty | with submerged motor | |
| Power (kW) | 0.55 | |
| Power (HP) | 0.75 | |
| Head (m) | 3.2-12 | |
| Weight (kg) | 14.3 | |
Calpeda 0.75 HP Submersible Drainage Pump GQR 10-12 Materials
- No. of impellers: single-impeller
- Pump casing: Cast iron GJL EN 1561
- Impeller: Cast iron GJL EN 1561
- Handle: Polypropylene (with frame made of 1.4301 EN 10088 (AISI 304)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Ceramic / Carbon / NBR
- Lower mechanical seal: Ceramic / Carbon / NBR
- Seal lubrication oil: Oil for food/pharmaceutical machinery
Calpeda 0.75 HP Submersible Drainage Pump GQR 10-12 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 |
| Head (m) | 12 | 11.6 | 11 | 10.2 | 9 | 7.5 | 5.5 | 3.2 |
Calpeda 0.75 HP Submersible Drainage Pump GQR 10-12 Applications
- Water supply systems in residential buildings
- Irrigation systems for agriculture
- Industrial water circulation processes
- Drainage and sewage management
Calpeda 0.75 HP Submersible Drainage Pump GQR 10-12 Benefits
- Durable construction ensures long-lasting performance
- High efficiency with low power consumption
- Safe for use in food and pharmaceutical applications
- Versatile for various immersion depths and environments
Calpeda 0.75 HP Submersible Drainage Pump GQR 10-12 Price List
| No. | Name | Price |
| 1 | Calpeda 0.75 HP Submersible Drainage Pump GQR 10-12 Price | Contact us |
