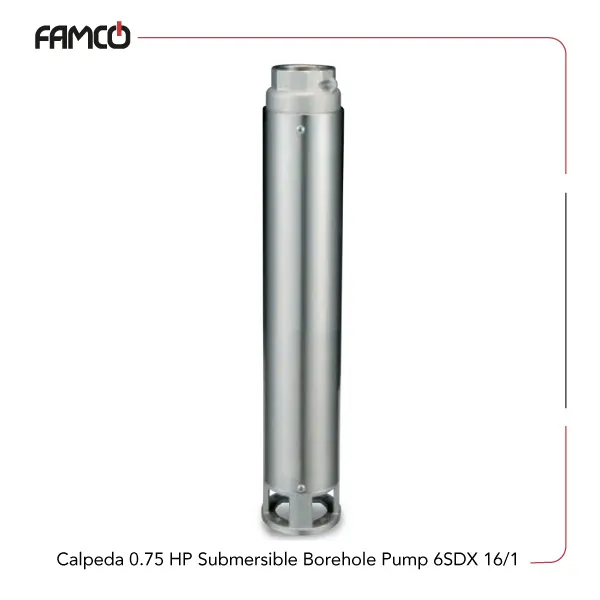

Calpeda 0.75 HP Submersible Borehole Pump 6SDX 16/1 Specifications
This pump operates on a three-phase power supply with voltages of 400 V or 400/690 V, providing reliable performance for various applications. It has a power output of 0.55 kW, equivalent to 0.75 HP, making it suitable for medium-duty tasks. The pump can deliver water up to 12 meters high and handle a maximum flow rate of 383 liters per minute, ensuring efficient water movement. It runs at approximately 2900 RPM, which helps maintain steady operation. Designed to work with water temperatures up to 30 °C, this Calpeda submersible pump can also handle water containing up to 50 grams of sand per cubic meter, making it durable in sandy environments. The pump features a two-pole motor and operates at a frequency of 50 Hz. It can be submerged up to 150 meters deep, making it ideal for deep well applications. Its IP 68 protection rating guarantees excellent waterproofing and dust resistance, suitable for harsh outdoor conditions and continuous use.
| Specification | Value |
| Three-phase voltage (V) | 400 V; 400/690 V |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Max. delivery head (m) | 12 |
| Max. flow rate (l/min) | 383 |
| Speed (rpm) | ≈ 2900 |
| Liquid temperature | 30 °C |
| Maximum amount of sand in the water | 50 g/m3 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Max. immersion depth (m) | 150 |
| Protection | IP 68 |
Calpeda 0.75 HP Submersible Borehole Pump 6SDX 16/1 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| head (m) | 12 | 12 | 11 | 11 | 10 | 8 | 7 | 6 | 4 |
Calpeda 0.75 HP Submersible Borehole Pump 6SDX 16/1 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Industrial water transfer
- Water supply for remote locations
Calpeda 0.75 HP Submersible Borehole Pump 6SDX 16/1 Benefits
- High durability in sandy water environments
- Suitable for deep immersion up to 150 meters
- Reliable performance with IP 68 waterproof rating
- Efficient water flow with a maximum of 383 l/min
Calpeda 0.75 HP Submersible Borehole Pump 6SDX 16/1 Price List
| No. | Name | Price |
| 1 | Calpeda 0.75 HP Submersible Borehole Pump 6SDX 16/1 Price | Contact us |
