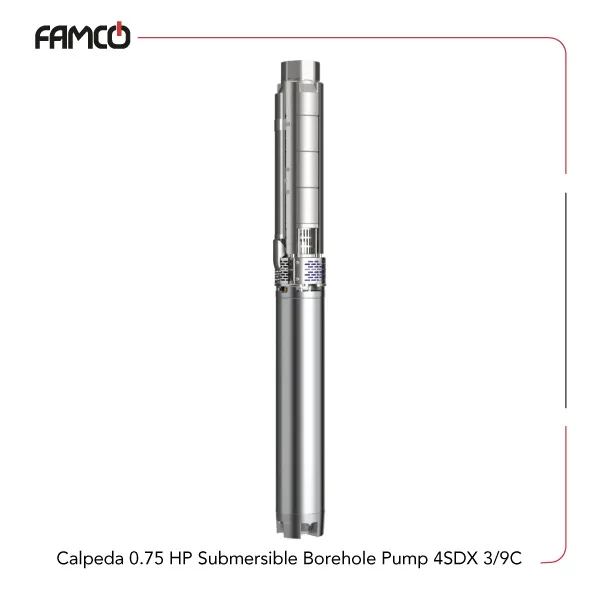

Overview of Calpeda 0.75 HP Submersible Borehole Pump 4SDX 3/9C

The Calpeda 0.75 HP Submersible Borehole Pump 4SDX 3/9C is designed for borehole installations that require a balanced combination of flow rate (of up to 70 l/min) and delivery head reaching 57 meters. Powered by a 0.55 kW (0.75 HP) motor running at 2900 rpm, this pump delivers a maximum head of 57 meters while maintaining a high flow rate of up to 70 l/min. It is suitable for continuous submerged operation in clean water applications with a maximum liquid temperature of 35°C and sand content up to 50 g/m³. The pump is equipped with a 2-pole motor, insulation class F, and IP68 protection, ensuring safe and stable operation in submerged conditions. Operating at 50 Hz, it supports both single-phase 230 V and three-phase 230–400 V power supplies, allowing flexibility during installation. This model is commonly used for domestic water supply, irrigation systems, and small commercial boreholes where consistent flow and moderate pressure are required. Available configurations:

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 3/9C (Single-phase)

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 3/9C (Three-phase)

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 3/9C Specifications

Designed for applications that demand higher water volume without excessive lifting height, the 4SDX 3/9C performs well in shallow to medium-depth wells supplying residential and agricultural systems. Its 70 l/min flow capacity supports irrigation lines, pressure tanks, and water distribution networks with stable output. Compatibility with both single-phase and three-phase electrical supplies simplifies replacement or new installations. The pump’s tolerance for sand particles up to 50 g/m³ makes it suitable for typical borehole conditions. As part of the wider Calpeda submersible pum ps, this model sits between low-head domestic units and deeper well solutions, offering versatility across multiple use cases. With IP68 protection and a 50 Hz operating frequency, it is engineered for continuous underwater service while maintaining controlled energy consumption and dependable hydraulic performance in everyday borehole applications.

Specification	Value
Single-phase voltage (V)	230
Three-phase voltage (V)	230-400
Power (kW)	0.55
Power (HP)	0.75
Max. delivery head (m)	57
Max. flow rate (l/min)	70
Speed (rpm)	2900
Liquid temperature	35 °C
Maximum amount of sand in the water	50 g/m3
Number of poles	2
Frequency (Hz)	50
Insulation class	F
Protection	IP 68

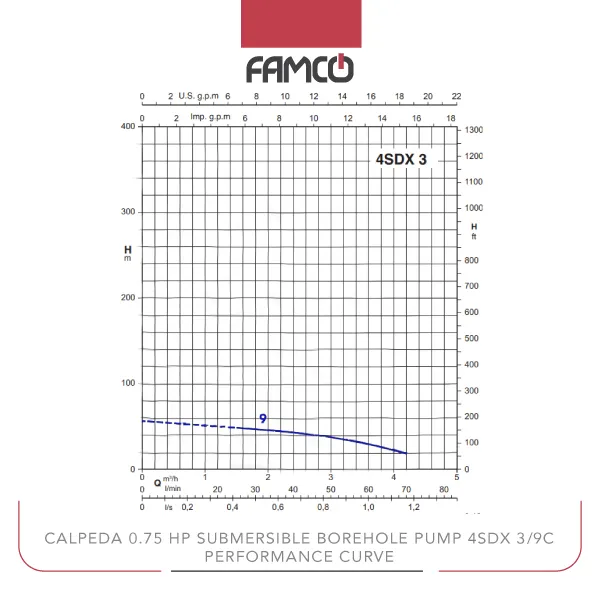

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 3/9C Performance Curve

m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3	3.6	4.2
l/min	0	5	10	15	20	25	30	35	40	45	50	60	70
head (m)	57	–	–	–	–	49	47	46	43	41	38	30	19

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 3/9C Applications

Irrigation systems in agriculture
Water supply for residential buildings
Industrial water transfer tasks
Fountain and water feature installations

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 3/9C Benefits

High durability with IP 68 protection rating
Flexible power options for various setups
Good performance with a maximum head of 57 meters
Capable of handling water with some sand content

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 3/9C Price List

No.	Name	Price
1	Calpeda 0.75 HP Submersible Borehole Pump 4SDX 3/9C Price	Contact us

Brand	Calpeda
Applications	Deep well water extraction, Domestic, Civil, Industrial, Garden irrigation
Power (kW)	0.55
Power (HP)	0.75
Maximum Flow Rate (L/min)	70
Maximum Delivery Head (m)	57
Voltage (V)	230, 400
Number of Poles	2
