Calpeda 0.75 HP Submersible Borehole Pump 4SDX 2/13C

0.55 kW (0.75 HP)

Single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Calpeda Pumps, Calpeda Submersible Pumps

Overview of Calpeda 0.75 HP Submersible Borehole Pump 4SDX 2/13C

The 0.75 HP 4SDX 2/13C has exceptional pumping output with a head height reaching 76 meters and flow rates of up to 40 l/min. It can be used in residential, agricultural, or industrial settings. Its robust construction and high protection rating make it suitable for outdoor use, even in dusty or wet environments. The pump’s ability to handle moderate sand content and water temperatures up to 35°C makes it ideal for various water sources. With a maximum head of 76 meters and a flow rate of 40 liters per minute, it efficiently moves water over considerable distances or heights. Its compatibility with single-phase and three-phase power supplies adds to its flexibility, making it a popular choice for different applications. The motor’s speed and power output ensure reliable operation, while the insulation class F guarantees safety and longevity. Overall, this pump offers a good balance of power, durability, and versatility for many water management needs.

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 2/13C Specifications

This Calpeda 4SDX-series 0.75 HP pump operates on a single-phase voltage of 230V or a three-phase voltage range of 230-400V. So, it is compatible with different power setups. It delivers a power output of 0.55 kW, providing reliable performance for various applications. The submersible Calpeda pumps are famous for significant system output and this model can reach a maximum head of 76 meters, allowing it to lift water efficiently over long distances or heights. Its maximum flow rate is 40 liters per minute, suitable for moderate water transfer tasks. The motor runs at a speed of 2900 RPM, ensuring steady operation. It is designed to handle water temperatures up to 35°C and can tolerate water with up to 50 grams of sand per cubic meter, making this Calpeda submersible pump suitable for use in environments with some debris. The pump features a two-pole motor, operating at a frequency of 50 Hz, with insulation class F for safety and durability. Its IP 68 protection rating ensures it is dust-tight and protected against water immersion, ideal for outdoor or harsh conditions.

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 2/13C

Specification	Value
Single-phase voltage (V)	230
Three-phase voltage (V)	230-400
Power (kW)	0.55
Power (HP)	0.75
Max. delivery head (m)	76
Max. flow rate (l/min)	40
Speed (rpm)	2900
Liquid temperature	35 °C
Maximum amount of sand in the water	50 g/m3
Number of poles	2
Frequency (Hz)	50
Insulation class	F
Protection	IP 68

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 2/13C Performance Data

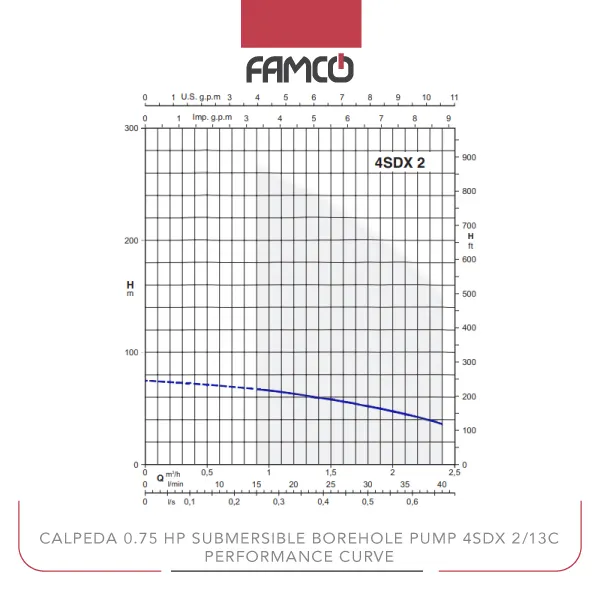

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 2/13C Performance Curve

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 2/13C Applications

Irrigation systems in agriculture
Water transfer in residential settings
Industrial water supply tasks
Fountain and water feature operation

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 2/13C Benefits

High durability with IP 68 protection rating
Flexible power options for different setups
Capable of handling water with some sand
Efficient performance with a maximum head of 76 meters

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 2/13C Price List

No.	Name	Price
1	Calpeda 0.75 HP Submersible Borehole Pump 4SDX 2/13C Price	Contact us

Brand	Calpeda
Applications	Deep well water extraction, Water Supply Lines, Water supply systems
Power (kW)	0.55
Power (HP)	0.75
Maximum Flow Rate (L/min)	40
Maximum Delivery Head (m)	76
