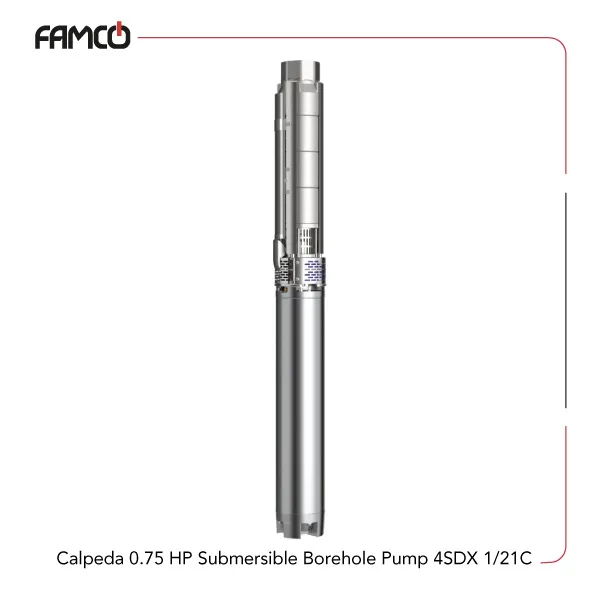

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 1/21C Specifications
This pump operates with a single-phase voltage of 230V or a three-phase voltage range of 230-400V, making it versatile for different power setups. It delivers a power output of 0.55 kW, equivalent to 0.75 HP, providing reliable performance for various applications. The maximum delivery head reaches 118 meters, allowing this model from the lineup of Calpeda submersible pumps available to lift water efficiently over long distances or heights. It can handle a maximum flow rate of 25 liters per minute, suitable for moderate water transfer tasks. The pump runs at a speed of 2900 RPM, ensuring steady operation. It is designed to work with water temperatures up to 35°C and can handle water containing up to 50 grams of sand per cubic meter, making it suitable for environments with some particulate matter. The device features a two-pole motor and operates at a frequency of 50 Hz. Its insulation class is F, indicating good thermal resistance, and it has an IP 68 protection rating, making it highly resistant to dust and water ingress, ideal for outdoor or harsh conditions.
| Specification | Value |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230-400 |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Max. delivery head (m) | 118 |
| Max. flow rate (l/min) | 25 |
| Speed (rpm) | 2900 |
| Liquid temperature | 35 °C |
| Maximum amount of sand in the water | 50 g/m3 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection | IP 68 |

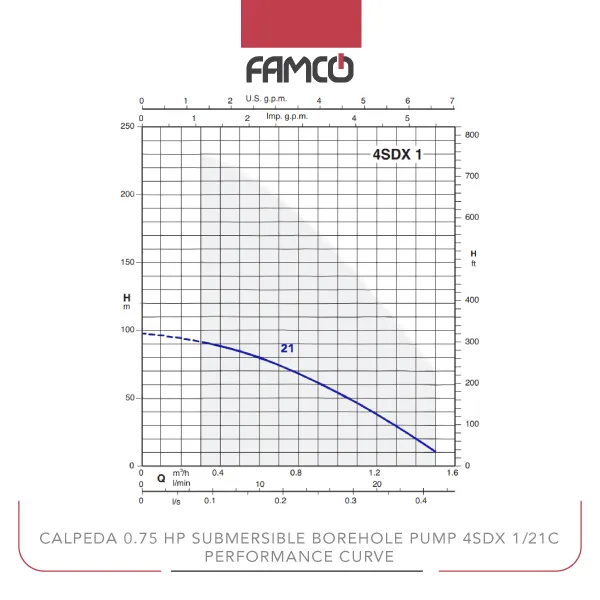

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 1/21C Performance Data
| m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 |
| head (m) | 118 | 111 | 100 | 81 | 58 | 30 |
Calpeda 0.75 HP Submersible Borehole Pump 4SDX 1/21C Applications
- Irrigation systems in agriculture
- Water supply for residential or commercial buildings
- Industrial water transfer tasks
- Construction site water management
Calpeda 0.75 HP Submersible Borehole Pump 4SDX 1/21C Benefits
- Versatile power options for different setups
- High durability with IP 68 protection rating
- Capable of handling water with sand content
- Long-lasting performance with efficient motor
Calpeda 0.75 HP Submersible Borehole Pump 4SDX 1/21C Price List
| No. | Name | Price |
| 1 | Calpeda 0.75 HP Submersible Borehole Pump 4SDX 1/21C Price | Contact us |
