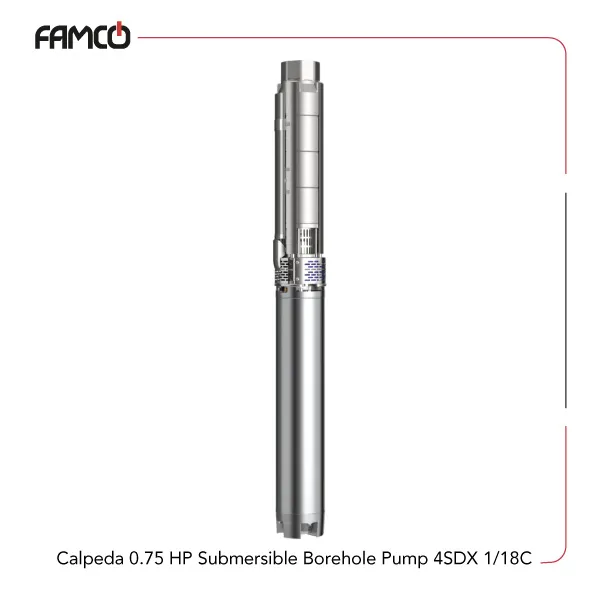

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 1/18C

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 1/18C Specifications

Operating at 2900 rpm, the 4SDX 1/18C is configured for borehole systems that require extended head capability while maintaining a controlled flow rate of 25 l/min. Its 102 m maximum head places it in installations where water must be lifted from deeper levels without increasing pump size or complexity. The motor supports both single-phase 230 V and three-phase 230–400 V power supplies, allowing flexibility during electrical planning. With a permitted sand content of 50 g/m³ and a maximum liquid temperature of 35°C, the pump aligns with typical borehole water conditions. Within applications commonly associated with Calpeda submersible pumps, this model fits domestic and light commercial wells where depth performance is a priority.

The insulation class F motor and IP68 protection rating confirm its design for continuous submerged duty. With a 0.55 kW rating at 50 Hz, the 4SDX 1/18C offers a balanced solution for deep borehole installations that demand pressure stability without unnecessary oversizing.

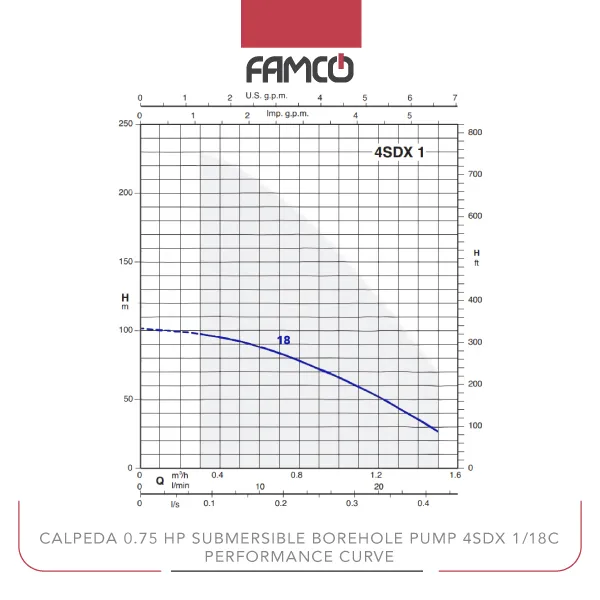

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 1/18C Performance Data

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 1/18C Applications

• Irrigation systems in agriculture
• Water supply for residential or commercial buildings
• Industrial fluid transfer tasks
• Fountains and water features

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 1/18C Benefits

• High maximum head for lifting water over long distances
• Durable and protected against dust and water ingress
• Can handle water with some sand content
• Flexible voltage options for different power supplies

Calpeda 0.75 HP Submersible Borehole Pump 4SDX 1/18C Price List
