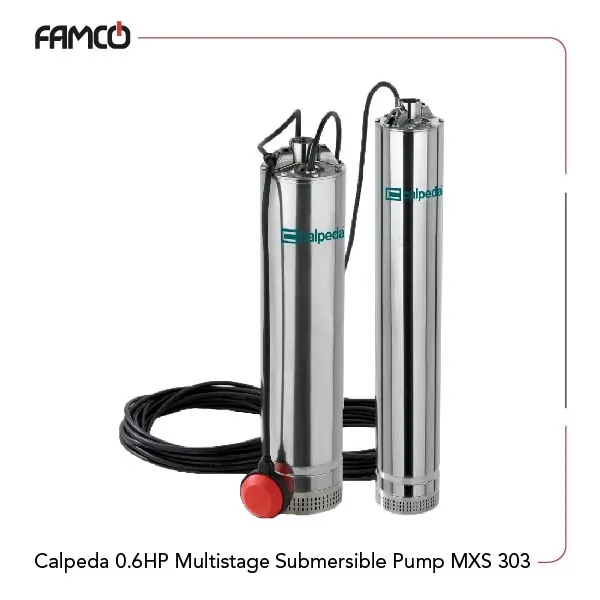

Calpeda 0.6HP Multi-stage Submersible Drainage Pump MXS 303 Specifications
Calpeda 0.6HP multi-stage stainless steel submersible Drainage pump MXS 303 is the one designed for efficient liquid handling that handles a maximum temperature of 35° C. This Calpeda submersible pump has a minimum immersion depth of 100 mm and can reach up to 20 m with the right cable length. The motor operates at a frequency of 50 Hz and has a rotation speed of approximately 2900 rpm. Applicable to different settings, it is available in both single-phase (230 V) and three-phase (230-400 V) configurations. The insulation class is rated F to increase durability under various conditions. This Calpeda submersible pump has the advantage of a rated IP X8 protection class, which is suitable for continuous immersion tasks. This pump comes in with triple impregnated humidity-proof dry winding and three impellers made from PPO-GF20 (Noryl). As far as the construction goes, all-sturdy materials are incorporated together in this pump. The shaft is constructed from chrome-nickel steel (AISI 304) to give it strength in resistance to corrosion. The mechanical seals are designed with high-quality materials for added reliability and longevity.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 3 | |
| Power (kW) | 0.45 | |
| Power (HP) | 0.6 | |
| Head (m) | 10-32.5 | |
Calpeda 0.6HP Multi-stage Submersible Drainage Pump MXS 303 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbon, Silicon Carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutic use Oil

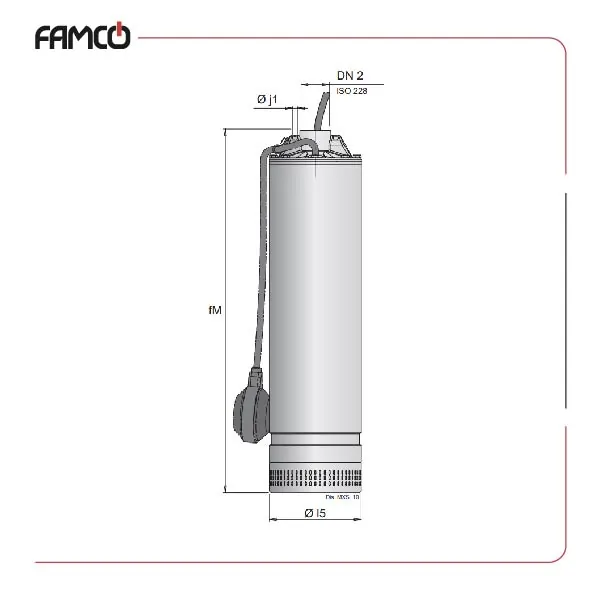

Calpeda 0.6HP Multi-stage Submersible Drainage Pump MXS 303 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MXS 303 | G 1 1/4 | 465 | 7 | 133 | 11.7 |
| MXSM 303 | G 1 1/4 | 465 | 7 | 133 | 12.4 |

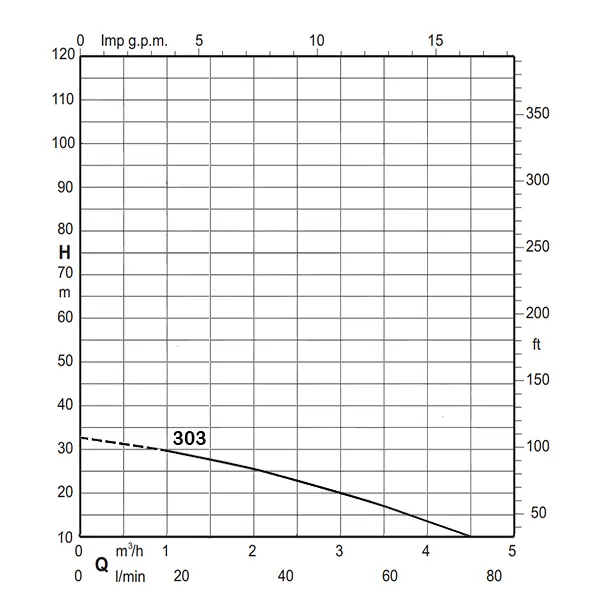

Calpeda 0.6HP Multi-stage Submersible Drainage Pump MXS 303 Performance Data
| Q= m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 |
| Q=l/min | 0 | 16.66 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 |
| H (m) | 32.5 | 29.5 | 27.5 | 25.5 | 23 | 19.5 | 17 | 13 | 10 |
Calpeda 0.6HP Multi-stage Submersible Drainage Pump MXS 303 Applications
- Industrial liquid transfer
- Pharmaceutical processing
- Food and beverage production
- Water treatment systems
Calpeda 0.6HP Multi-stage Submersible Drainage Pump MXS 303 Benefits
- High efficiency with low power consumption
- Durable construction for long-lasting use
- Versatile applications across industries
- Reliable performance in continuous immersion
Calpeda 0.6HP Multi-stage Submersible Drainage Pump MXS 303 Price List
| No. | Name | Price |
| 1 | Calpeda 0.6HP Multi-stage Submersible Drainage Pump MXS 303 Price | Contact us |
