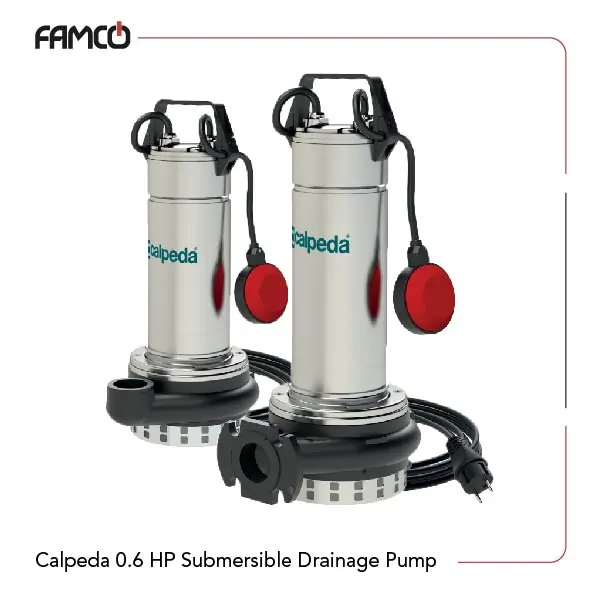

Calpeda 0.6 HP Submersible Drainage Pump GQR10-10 Specifications
Calpeda GQR 10-10 submersible drainage pump features a sturdy design with a dual-pole configuration and operates at a frequency of 50 Hz. It supports both three-phase (230-400 V) and single-phase (230 V) voltage options. The insulation class is rated F to improve its durability and safety. This Calpeda drainage pump is built and released to the market with an IP X8 protection rating to give it an advantage in continuous water immersion. The pump is designed for continuous duty with a submerged motor, capable of handling liquid temperatures up to 35°C. The construction of this product includes a cast iron pump casing and impeller to give it additional strength and longevity. The mechanical seals are made from ceramic, carbon, and NBR, providing reliable sealing under various conditions. This product also features a polypropylene handle and a chrome-nickel steel shaft for added resilience. It operates efficiently with a power output of 0.45 kW (0.6 HP) and can achieve a head of 3-10 meters, making it versatile for various applications.
| Specification | Value | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection | IP X8 (for continuous immersion) | |
| humidity-proof dry winding | Triple impregnation | |
| Maximum immersion depth | 5 m | |
| Minimum immersion depth | 205 mm | |
| Continuous duty | with submerged motor | |
| Liquid temperature | up to 35° C | |
| No. of impellers | single-impeller | |
| Power (kW) | 0.45 | |
| Power (HP) | 0.6 | |
| Head (m) | 3-10 | |
| Weight (kg) | 12.8 | |
Calpeda 0.6 HP Submersible Drainage Pump GQR10-10 Materials
- No. of impellers: single-impeller
- Pump casing: Cast iron GJL EN 1561
- Impeller: Cast iron GJL EN 1561
- Handle: Polypropylene (with frame made of 1.4301 EN 10088 (AISI 304)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Ceramic / Carbon / NBR
- Lower mechanical seal: Ceramic / Carbon / NBR
- Seal lubrication oil: Oil for food/pharmaceutical machinery
Calpeda 0.6 HP Submersible Drainage Pump GQR10-10 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| Head (m) | 10 | 9.5 | 8.8 | 8 | 6.7 | 5 | 3 |
Calpeda 0.6 HP Submersible Drainage Pump GQR10-10 Applications
- Water features and fountains
- Irrigation systems
- Aquaculture and fish farming
- Food and pharmaceutical processing
Calpeda 0.6 HP Submersible Drainage Pump GQR10-10 Benefits
- Durable cast iron construction for longevity
- IP X8 rating for continuous immersion use
- Efficient power consumption with 0.45 kW output
- Versatile applications in various industries
Calpeda 0.6 HP Submersible Drainage Pump GQR10-10 Price List
| No. | Name | Price |
| 1 | Calpeda 0.6 HP Submersible Drainage Pump GQR10-10 Price | Contact us |
