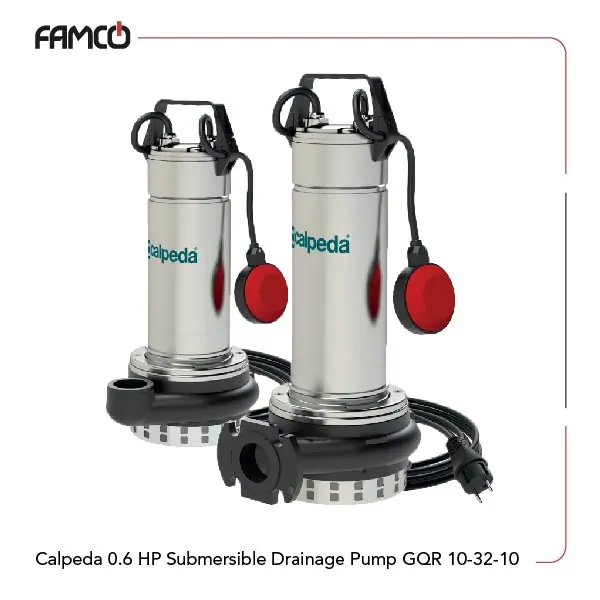

Calpeda 0.6 HP Submersible Drainage Pump GQR 10-32-10 Specifications
The Calpeda GQR 10-32-10 is a powerful single-impeller submersible drainage pump designed for efficient water management. This Calpeda drainage pump operates effectively at a liquid temperature of up to 35° C and can be immersed up to a maximum depth of 5 meters, with a minimum immersion depth of 205 mm. This pump features a dual-pole design and is available in both three-phase (230-400V) and single-phase (230V) voltage options. With an insulation class of F and an IP X8 protection rating, it is suitable for continuous immersion in water. The pump casing and impeller used in its build are made from durable cast iron GJL EN 1561 to give it additional longevity and reliability. The mechanical seals are constructed from ceramic, carbon, and NBR, providing excellent sealing performance. This pump is also equipped with a polypropylene handle and a frame made of AISI 304 stainless steel, enhancing its durability. This product has a power output of 0.45 kW (0.6 HP) and a head range of 3 to 10 meters for different effective drainage applications.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Maximum immersion depth | 5 m | |
| Minimum immersion depth | 205 mm | |
| No. of poles | 2 | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| Power (kW) | 0.45 | |
| Power (HP) | 0.6 | |
| Head (m) | 3-10 | |
| Weight (kg) | 13.4 | |

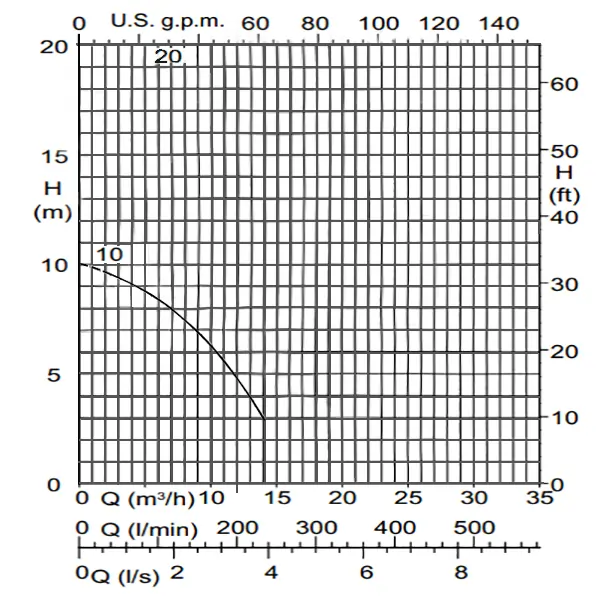

Calpeda 0.6 HP Submersible Drainage Pump GQR 10-32-10 Performance Curve
Calpeda 0.6 HP Submersible Drainage Pump GQR 10-32-10 Materials
- Pump casing: Cast iron GJL EN 1561
- Impeller: Drainage: Cast iron GJL EN 1561
- Handle: Polypropylene (with frame made of 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Ceramic / Carbon / NBR
- Lower mechanical seal: Ceramic / Carbon / NBR
- Seal lubrication oil: Oil for food/pharmaceutical machinery
Calpeda 0.6 HP Submersible Drainage Pump GQR 10-32-10 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| Head (m) | 10 | 9.5 | 8.8 | 8 | 6.7 | 5 | 3 |
Calpeda 0.6 HP Submersible Drainage Pump GQR 10-32-10 Applications
- Basement water removal
- Construction site drainage
- Agricultural irrigation
- Flood control and management
Calpeda 0.6 HP Submersible Drainage Pump GQR 10-32-10 Benefits
- Durable cast iron construction for long-lasting use
- High protection rating for continuous immersion
- Efficient performance with low power consumption
- Versatile applications in various environments
