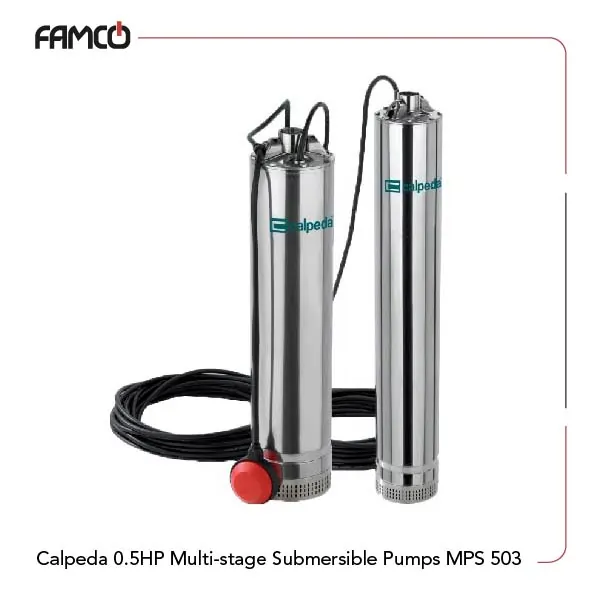

Calpeda 0.5HP Multi-stage Submersible Pumps MPS 503 Specifications
Calpeda 0.5HP multistage submersible pump MPS 503 is highly efficient, handling a maximum temperature of 35° C. This Calpeda pump features a minimum immersion depth of 100 mm and reaches depths of up to 20 m, depending on the length of the cable. The product’s motor is capable of operating at a frequency of 50 Hz with a rotation speed of approximately 2900 rpm. It is worth noting that this powerful pump is available in both single-phase (230 V) and three-phase (230-400 V) configurations to match different setups. The insulation class is rated F to reach durability under various conditions. The protection class is rated and measured at IP X8 which is a given for continuous immersion in water. The winding is humidity-proof with triple impregnation that enhances the overall reliability of the product. This Calpeda submersible pump has three impellers made from PPO-GF20 (Noryl) and a shaft constructed from chrome-nickel steel (AISI 304). Mechanical seals in this lasting product are made from high-quality materials to reach maximum longevity in performance. The lubrication oil used is easily accessible since it is the same kind that is suitable for food machinery and pharmaceutical applications.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 3 | |
| Power (kW) | 0.55 | |
| Power (HP) | 0.75 | |
| Head (m) | 8-32.2 | |
Calpeda 0.5HP Multi-stage Submersible Pumps MPS 503 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbon, Silicon Carbide, NBR
- Seal lubrication oil: food machinery and pharmaceutical Oil

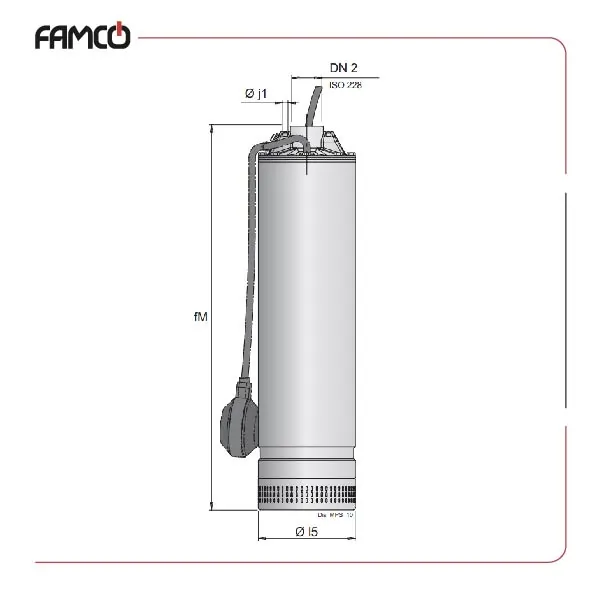

Calpeda 0.5HP Multi-stage Submersible Pumps MPS 503 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MPS 503 | G 1 1/4 | 504 | 7 | 133 | 13.6 |
| MPSM 503 | G 1 1/4 | 504 | 7 | 133 | 11.4 |

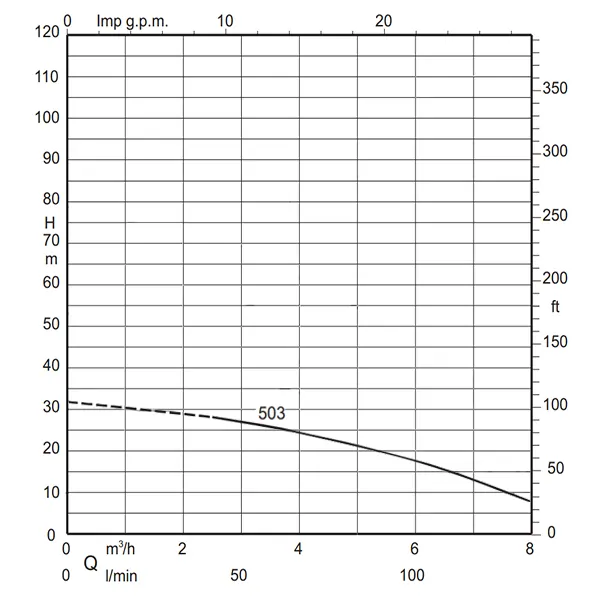

Calpeda 0.5HP Multi-stage Submersible Pumps MPS 503 Performance Data
| Q= m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7 | 8 |
| Q=l/min | 0 | 16.6 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 | 83.3 | 100 | 117 | 133 |
| H (m) | 32.2 | – | – | – | 28.5 | 27.5 | 26 | 24.5 | 22.5 | 21.5 | 18 | 13.5 | 8 |
Calpeda 0.5HP Multi-stage Submersible Pumps MPS 503 Applications
- Food processing and handling
- Pharmaceutical manufacturing
- Water treatment facilities
- Industrial liquid transfer
Calpeda 0.5HP Multi-stage Submersible Pumps MPS 503 Benefits
- High efficiency with low power consumption
- Durable construction for long-lasting use
- Suitable for sensitive applications like food and pharma
- Versatile depth range for various installations
Calpeda 0.5HP Multi-stage Submersible Pumps MPS 503 Price List
| No. | Name | Price |
| 1 | Calpeda 0.5HP Multi-stage Submersible Pumps MPS 503 Price | Contact us |
