Overview of Calpeda 0.5 HP Submersible Borehole Pump 4SDX 2/9C

The 4SDX 2/9C is a deep-borehole pump fitting wells of 4-inches with a powerful 0.5 HP output. This Calpeda submersible pump is suitable for residential, agricultural, and industrial applications. With its durable construction and high protection rating, it performs well in challenging environments. The pump’s ability to handle water with 50 g/m3 sand and operate at different voltages makes it flexible for different setups. Its moderate power and flow rate make it ideal for small to medium-scale operations, providing efficient water movement with minimal energy consumption. You can use this submersible Calpeda pump in two power setups:

Calpeda 0.5 HP Submersible Borehole Pump 4SDXM 2/9C (single-phase)

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 2/9C (three-phase)

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 2/9C Specifications

This pump operates on a single-phase voltage of 230V or a three-phase system ranging from 230V to 400V. It delivers a power output of 0.37 kW, which is equivalent to 0.5 HP, making it suitable for various small to medium applications. The pump can generate a maximum head of 52 meters, allowing it to lift water efficiently over significant heights. Its maximum flow rate is 25 liters per minute, providing a steady and reliable water supply. The device runs at a speed of 2900 RPM, ensuring these Calpeda submersible pumps operate consistently. It is designed to handle water temperatures up to 35°C and can tolerate water with up to 50 grams of sand per cubic meter, making it versatile for different water qualities. The pump features a two-pole motor, operates at a frequency of 50 Hz, and has an insulation class rated F, indicating good thermal resistance. Its robust protection class of IP 68 ensures complete protection against dust and water ingress, suitable for harsh environments and outdoor use.

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 2/9C

Specification	Value
Single-phase voltage (V)	230
Three-phase voltage (V)	230-400
Power (kW)	0.37
Power (HP)	0.5
Max. delivery head (m)	52
Max. flow rate (l/min)	25
Speed (rpm)	2900
Liquid temperature	35 °C
Maximum amount of sand in the water	50 g/m3
Number of poles	2
Frequency (Hz)	50
Insulation class	F
Protection	IP 68

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 2/9C Performance Data

m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4
l/min	0	5	10	15	20	25	30	35	40
head (m)	52	–	–	48	45	42	38	33	27

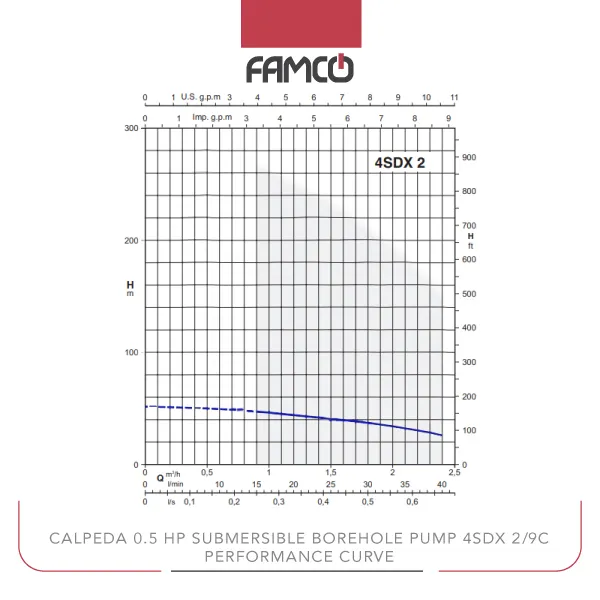

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 2/9C Performance Curve

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 2/9C Applications

Irrigation systems in agriculture
Water supply for residential buildings
Industrial fluid transfer
Fountain and water feature setups

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 2/9C Benefits

High durability with IP 68 protection
Flexible voltage options for various setups
Capable of handling sandy water
Efficient performance with moderate power consumption

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 2/9C Price List

No.	Name	Price
1	Calpeda 0.5 HP Submersible Borehole Pump 4SDX 2/9C Price	Contact us

Brand	Calpeda
Applications	Deep well water extraction, Garden irrigation, Water Supply Connections
Power (kW)	0.37
Power (HP)	0.55
Maximum Flow Rate (L/min)	25
Maximum Delivery Head (m)	52
Number of Poles	2
