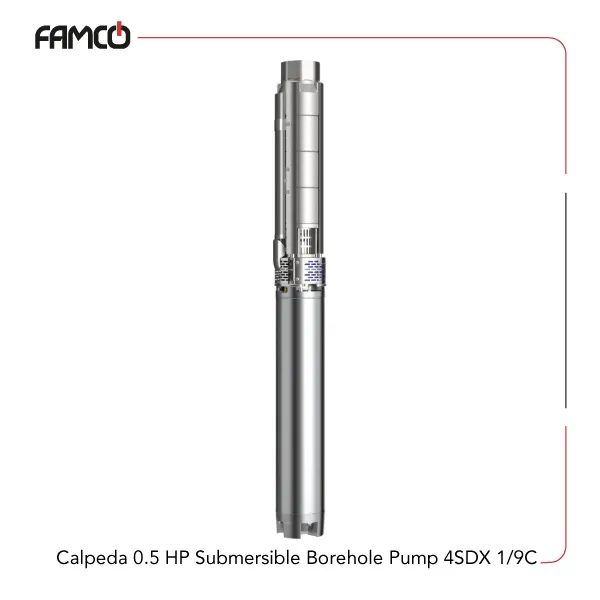

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 1/9C

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 1/9C Specifications

Operating at 2900 rpm with a 2-pole motor, the 4SDX 1/9C is built for borehole systems that require controlled flow rather than high volume delivery. Its 50 m maximum head and 25 l/min flow rate place it in applications where pressure stability matters more than output size. The pump supports both single-phase 230 V and three-phase 230–400 V configurations, allowing flexibility during installation without changing core performance data.

Within ranges commonly associated with Calpeda submersible pumps, this model is designed to work in water containing up to 50 g/m³ of sand while maintaining operation at liquid temperatures up to 35°C. The insulation class F motor and IP68 protection rating define its suitability for continuous submerged use rather than intermittent duty. With a 0.37 kW power rating and 50 Hz frequency, the 4SDX 1/9C fits domestic and light commercial borehole systems where compact power, depth capability, and electrical adaptability are required without exceeding defined operating limits.

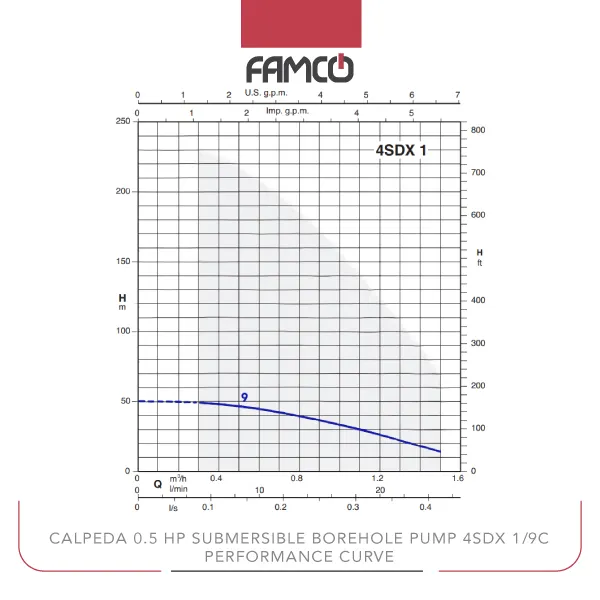

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 1/9C Performance Data

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 1/9C Applications

• Irrigation systems for farms and gardens
• Water supply for residential or commercial buildings
• Industrial water transfer tasks
• Filling or draining tanks and pools

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 1/9C Benefits

• Flexible power options with single-phase and three-phase compatibility
• High durability with IP 68 protection rating
• Efficient performance with a maximum head of 50 meters
• Suitable for water with minor impurities up to 35°C

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 1/9C Price List
