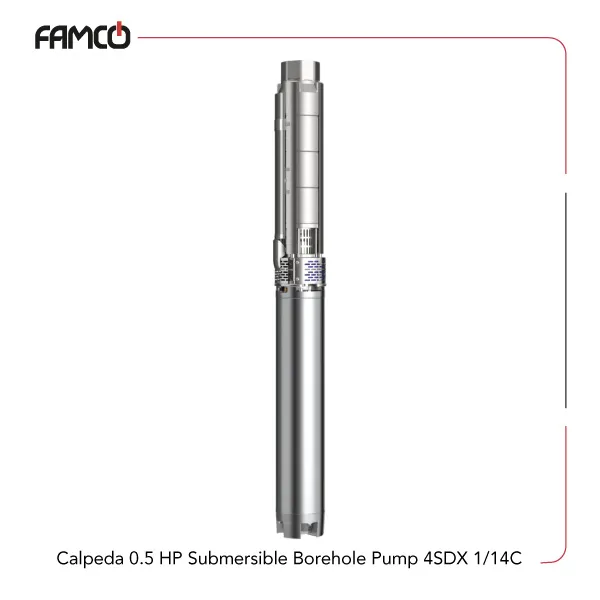

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 1/14C

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 1/14C Specifications

Designed for 4-inch well borehole installations that demand higher head performance, the 4SDX 1/14C operates at 2900 rpm and delivers up to 78 m of head while maintaining a steady flow rate of 25 l/min. Its 2-pole motor runs on either single-phase 230 V or three-phase 230–400 V power, offering electrical flexibility without changing hydraulic output. The pump supports water temperatures up to 35°C and is rated to handle sand content up to 50 g/m³, aligning with typical borehole water conditions.

Within the broader range of Calpeda submersible pumps, this model fits applications where depth matters more than flow volume. The insulation class F motor and IP68 protection rating define its suitability for continuous submerged operation rather than shallow or intermittent use. With a 0.37 kW power rating and 50 Hz frequency, the 4SDX 1/14C is positioned for domestic and light commercial borehole systems that require compact size, electrical adaptability, and extended head capability within clearly defined operating limits.

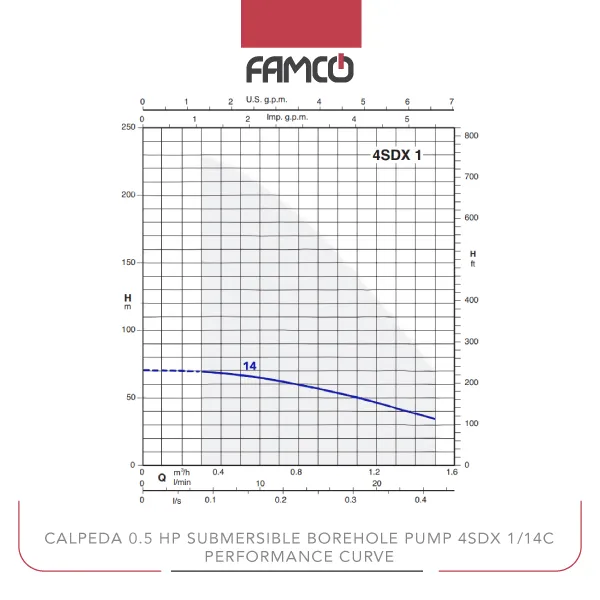

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 1/14C Performance Data

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 1/14C Applications

• Irrigation systems for gardens and farms
• Water supply for residential buildings
• Drainage and flood control
• Water transfer in small commercial setups

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 1/14C Benefits

• High durability with IP 68 protection level
• Flexible power options for different setups
• Efficient performance with 0.37 kW motor
• Can handle water with sand content up to 50 g/m3

Calpeda 0.5 HP Submersible Borehole Pump 4SDX 1/14C Price List
