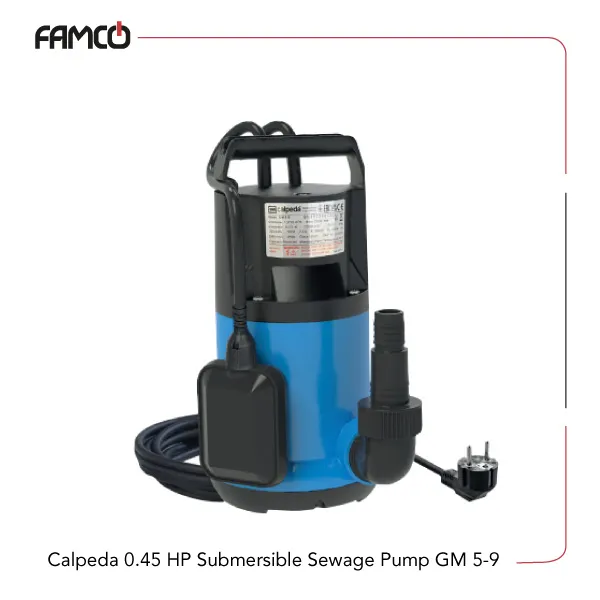

Calpeda 0.45 HP Submersible Sewage Pump GM 5-9 Specifications
This model fits into the lighter-duty end of the Calpeda submersible pump lineup, yet it still brings the kind of build quality needed for steady wastewater handling. The chrome-nickel steel casing and impeller give it enough toughness to stay submerged for long periods without corroding or losing efficiency. It works comfortably at immersion depths up to 5 meters, supported by upper and lower mechanical seals made from ceramic, carbon, and NBR. Despite its compact 0.45 HP motor, the pump delivers a surprisingly capable performance, reaching an 8.9-meter head and moving up to 217 liters per minute. That makes it a good match for small drainage stations, residential pits, or environments where water levels need to be controlled without using a large or power-hungry unit. As a Calpeda sewage pump, it focuses on stable operation, easy installation, and long-term reliability. It offers an uncomplicated solution for users who want dependable wastewater transfer with minimal maintenance demands.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Speed (rpm) | ≈2900 |
| Insulation class | F |
| Protection | IP X8 |
| Immersion depth | 5 m max |
| Pump casing | Chrome-nickel steel |
| Impeller | Chrome-nickel steel |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Ceramic / Carbon / NBR |
| Power (kW) | 0.33 |
| Power (HP) | 0.45 |
| Head (m) | 8.9 |
| Flow rate (l/min) | 217 |

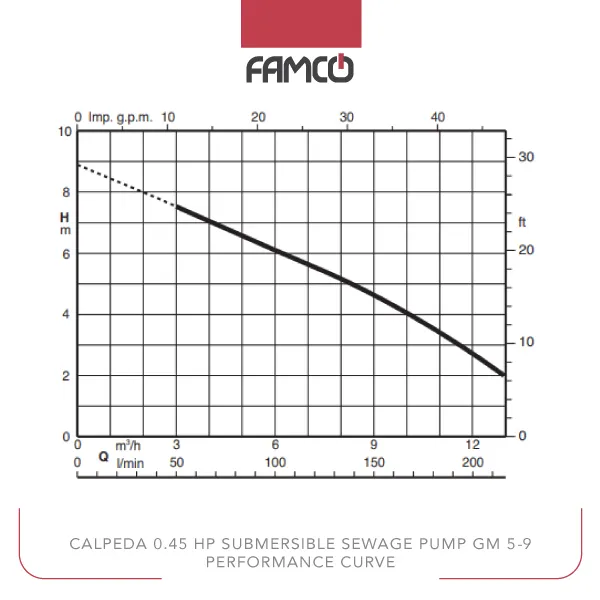

Calpeda 0.45 HP Submersible Sewage Pump GM 5-9 Performance Data
| m³/h | 0 | 1.2 | 3 | 6 | 9 | 12 | 13 |
| l/min | 0 | 20 | 50 | 100 | 150 | 200 | 217 |
| Head (m) | 8.9 | 8.2 | 7.6 | 6.1 | 4.7 | 2.8 | 2 |

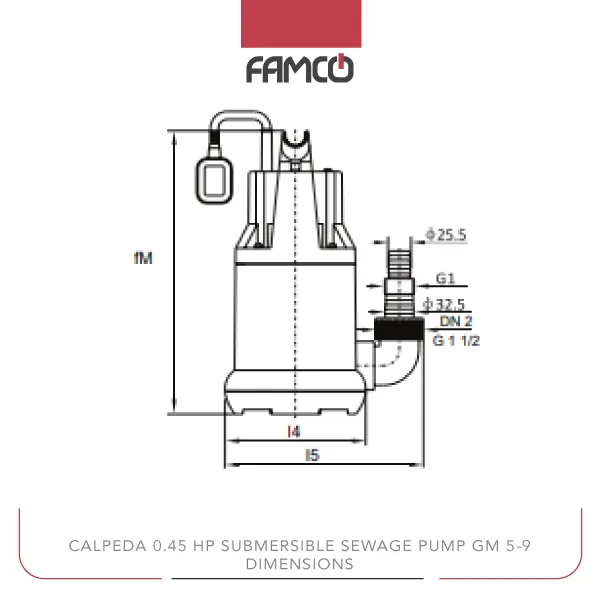

Calpeda 0.45 HP Submersible Sewage Pump GM 5-9 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | |||||
| DN2 | fM | l4 | l5 | Lmax | Lmin | 4.7 |
| G 1 1/2 | 316 | 157 | 222 | 342 | 120 | |
Calpeda 0.45 HP Submersible Sewage Pump GM 5-9 Applications
- Irrigation systems in agriculture
- Drainage in construction sites
- Water transfer in industrial facilities
- Flood control and emergency water removal
Calpeda 0.45 HP Submersible Sewage Pump GM 5-9 Benefits
- High durability with corrosion-resistant materials
- Supports both single-phase and three-phase power supplies
- Suitable for submersion up to 5 meters
- Efficient performance with a 9-meter head and 350 l/min flow rate
Calpeda 0.45 HP Submersible Sewage Pump GM 5-9 Price List
| No. | Name | Price |
| 1 | Calpeda 0.45 HP Submersible Sewage Pump GM 5-9 Price | Contact us |
