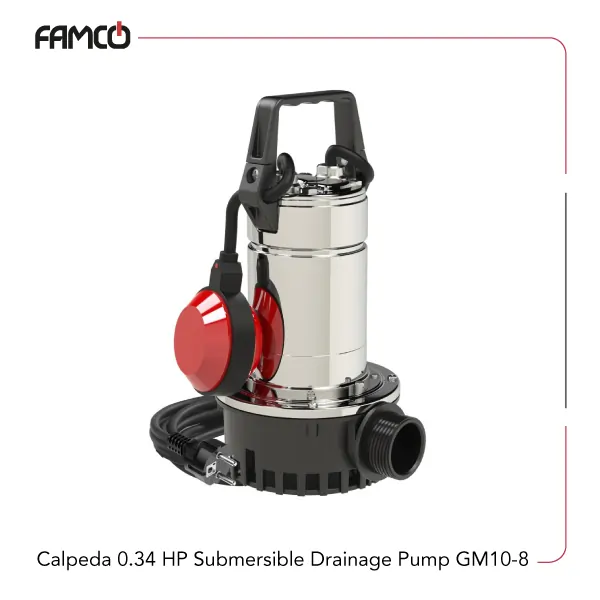

Calpeda 0.34 HP Submersible Drainage Pump GM10-8

0.25 kW (0.34 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Drainage Pump Tags: Calpeda Drainage Pumps, Calpeda Pumps, Calpeda Submersible Pumps

Overview of Calpeda 0.34 HP Submersible Drainage Pump GM10-8

The GM10-8 has a power output of 0.25 kW (0.34 HP) and a rotation speed of approximately 2900 rpm to handle clean or slightly dirty water efficiently. This sturdy pump operates at a voltage of 230 V and a frequency of 50 Hz, with an insulation class of F and an IP protection rating of X8, making it suitable for humid environments. The recorded head range of this pump is anywhere from 1 to 7.5 meters. This product has a sturdy power output of 0.25 Kw to operate efficiently at a rotation speed of around 2900 rpm.

Calpeda 0.34 HP Submersible Drainage Pump GM10-8 Specifications

Calpeda 0.34 HP submersible drainage pump GM10-8 is designed for handling clean or slightly dirty water. It’s design includes a mechanical seal and lubrication oil suitable for food and pharmaceutical use which is a must for sensitive environments. Its IP X8 protection rating allows for safer operations in humid conditions that submersible pumps often endure. This drainage pump is perfect for both residential and light commercial applications. This pump features a powerful construction with a casing and cover made from PP+30FV Polypropylene to help it resist various corrosive chemicals. The impeller is crafted from PPO-GF20 (Noryl), which enhances performance and longevity. The handle is designed with Polypropylene and reinforced with AISI 304 stainless steel for added strength. The shaft is made from Steel 1.4104 EN 10088 (AISI 430) giving this pump excellent corrosion resistance.

Specification	Value
No. of poles	2
Frequency (Hz)	50
Voltage (V)	230
Insulation class	F
Protection	IP X8
Treated liquid	clean or slightly dirty water
Rotation speed	≈ 2900 rpm
Power (kW)	0.25
Power (HP)	0.34
Head (m)	1-7.5

Calpeda 0.34 HP Submersible Drainage Pump GM10-8 Materials

Pump casing: PP+30FV Polypropylene
Cover: PP+30FV Polypropylene
Impeller: PPO-GF20 (Noryl)
Handle: Polypropylene (with frame made of AISI 304)
Shaft: Steel 1.4104 EN 10088 (AISI 430)
Mechanical seal: Alumina/Carbon/NBR
Seal lubrication oil: Oil for food/pharmaceutical machinery

Calpeda 0.34 HP Submersible Drainage Pump GM10-8 Technical Data

m³/h	0	1.2	3	6	9	12	14
l/min	0	20	50	100	150	200	233
Head (m)	7.5	7	6.4	5.2	3.8	2.2	1

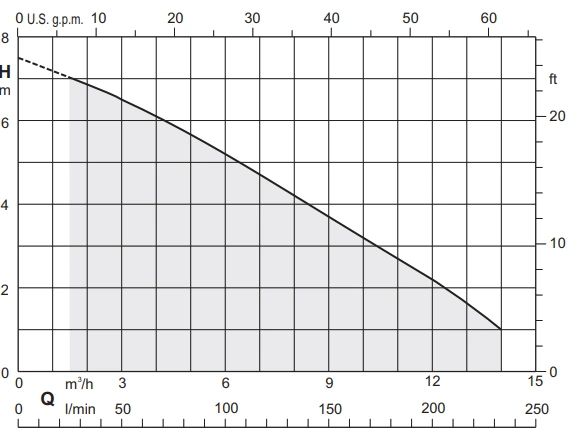

Calpeda 0.34 HP Submersible Drainage Pump GM10-8 Performance Curve

Calpeda 0.34 HP Submersible Drainage Pump GM10-8 Applications

Water transfer in residential settings
Irrigation systems for gardens and farms
Aquarium and pond water circulation
Light industrial processes requiring clean water

Calpeda 0.34 HP Submersible Drainage Pump GM10-8 Benefits

Durable construction with chemical resistance
Efficient operation with low power consumption
Versatile use in various environments

Calpeda 0.34 HP Submersible Drainage Pump GM10-8 Price List

No.	Name	Price
1	Calpeda 0.34 HP Submersible Drainage Pump GM10-8 Price	Contact us

Brand	Calpeda
Number of Poles	2
Frequency (Hz)	50
Voltage (V)	230
Insulation Class	F
Degree of Protection	IPX8
Speed (RPM)	2900
Power (kW)	0.25
Power (HP)	0.34
Maximum Delivery Head (m)	7.5
Impeller Material	Noryl
Mechanical Seal	Alumina/Carbon/NBR
Applications	Aquarium water circulation, Irrigation
