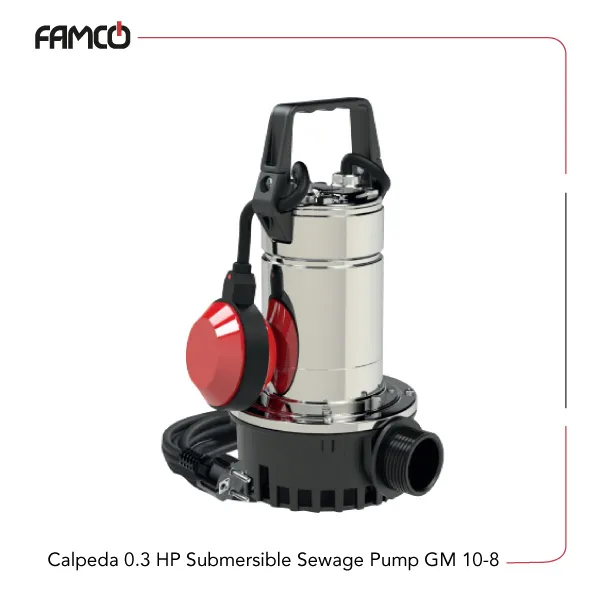

Calpeda 0.3 HP Submersible Sewage Pump GM 10-8 Specifications
Calpeda submersible pumps are well-regarded for their efficient operation and durability, and the Calpeda 0.3 HP Submersible Sewage Pump GM 10-8 is no exception. This model stands out among Calpeda sewage pumps for its compact size and reliable flow capacity, ideal for residential and light commercial wastewater management. The pump’s polypropylene casing resists corrosion, ensuring long service life even in challenging environments. If you’re looking for dependable sewage pumping solutions, this Calpeda submersible pump offers excellent value while maintaining consistent performance under various conditions.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Speed (rpm) | ≈2900 |
| Insulation class | F |
| Protection | IP X8 |
| Immersion depth (m) | 5 |
| Pump casing | PP+30FV Polypropylene |
| Impeller | Noryl |
| Mechanical seal | Alumina/Carbon/NBR |
| Maximum liquid temperature (°C) | 35 |
| Power (kW) | 0.25 |
| Power (HP) | 0.34 |
| Head (m) | 7.5 |
| Flow rate (l/min) | 233 |
Calpeda 0.3 HP Submersible Sewage Pump GM 10-8 Performance Data
| m³/h | 0 | 1.2 | 3 | 6 | 9 | 12 | 14 |
| l/min | 0 | 20 | 50 | 100 | 150 | 200 | 233 |
| Head (m) | 7.5 | 7 | 6.4 | 5.2 | 3.8 | 2.2 | 1 |
Calpeda 0.3 HP Submersible Sewage Pump GM 10-8 Applications
- Residential water transfer
- Garden irrigation systems
- Basement or cellar drainage
- Light industrial fluid handling
Calpeda 0.3 HP Submersible Sewage Pump GM 10-8 Benefits
- High durability with corrosion-resistant materials
- Reliable operation with IP X8 protection
- Efficient performance with moderate power consumption
- Easy to install and maintain
