Pentax Drainage Pumps
Pentax drainage pumps offer a maximum flow rate starting from 75 to 300 l/min, with maximum head heights ranging between 5.4 and 41.3 meters, which varies based on the series and model. Power ratings go from 0.2 kW in the DP/DPV series to up to 1.37 kW in the DH series. The DH series combines durable brass impellers with cast iron bodies, mostly used for grey water and residential drainage at flow rates up to 300 l/min and heads up to 19.4 meters. The DP/DPV series features lightweight polypropylene bodies and Noryl impellers for smaller drainage jobs, while the DPM series offers multistage pumping capabilities for clean water with higher head performance up to 41.3 meters and power ratings around 0.8-0.9 kW.
Designed for a variety of domestic and light commercial drainage tasks, these pumps support solid passage sizes from 4 up to 15 mm and have a maximum submergence of 5 meters.

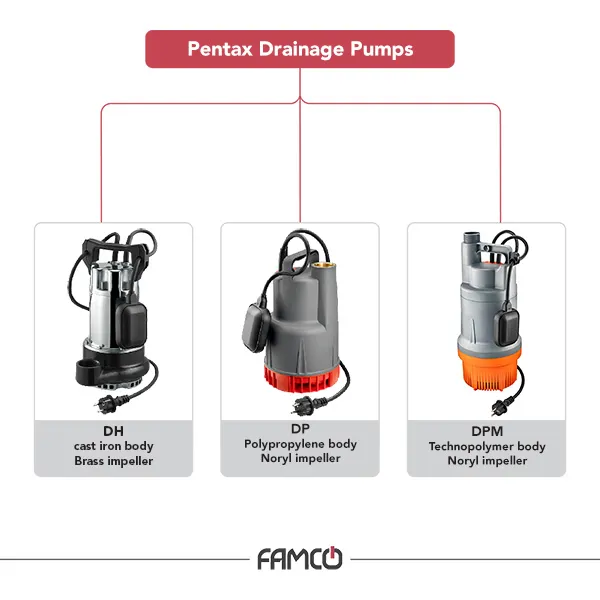

Pentax Drainage Pumps Models
With Famco Sanat’s variety of Pentax drainage pumps, handling specific needs is made easy. Some of the most popular series include:
| impeller material | pump body | impeller material | Max. submergence (m) | Max. head delivery (m) | Max. flow rate (l/min) | Max. solids passage (mm) | power (P1) | weight (kg) | notes |
| DH | Brass | Cast iron | 5 | 15.7-19.4 | 250-300 | 10 | 0.98-1.37 kW | 14.5-16 | Domestic/residential, grey water |
| DP / DPV | Noryl | Polypropylene | 5 | 5.4-13.3 | 80-250 | 4-15
(based on model) |
0.2-1.05 kW | 5-10 | Compact, light, small drainage |
| DPM | Noryl | Polypropylene | 5 | 33.4-41.3 | 75-120 | – | 0.8-0.9 kW | 10-10.5 | Multistage, clean water, irrigation |
- Pentax DH Drainage Series
Best-suited for domestic or residential applications, DH pumps come in both single- and three-phase versions and are perfect for home drainage, irrigation, and grey water management.
- Pentax DP Drainage Series
Compact, with Noryl impellers and 2-pole induction motors, the DP Pentax drainage series is lightweight, easy to install, and the best choice for smaller drainage tasks.
- Pentax DPM Drainage Pumps
Suitable for clean water handling, the DPM Pentax series is a single and three-phase compatible drainage solution. Most suited for residential and domestic applications, this series can be equipped with a float switch.
For detailed Pentax drainage water pump specifications, the Pentax drainage pump manual, or downloading the Pentax drainage pump catalog PDF, Famco Sanat experts are available to assist by call or message.
Pentax Drainage Pumps Benefits
Pentax drainage pumps combine efficiency, durability, and ease of use. Key advantages include:
- Range of operation with different models: used for grey, dirty, clean, or black water
- Ability to handle solids and filamentary materials without clogging (especially in the Grinder DTR Pentax series)
- Corrosion-resistant impellers and housings
- Lightweight and portable designs for residential and light commercial use
- Quiet and vibration-free operation
- Easy maintenance, supported by comprehensive Pentax drainage pump manuals
Pentax Drainage Pumps Applications
Pentax pumps are used in a wide range of applications:
- Domestic drainage and residential water management
- Grey and black water handling in homes or commercial buildings
- Industrial wastewater evacuation
- Septic tank emptying and sumps
- Flooded area drainage and rainwater collection systems
Pentax Drainage Pumps Maintenance
Regular maintenance is required for the Pentax pumps to continue peak-level performance.
Users should follow the Pentax drainage pump manual for cleaning impellers, checking seals, and monitoring motor operation. Famco Sanat has you covered with technical guidance and service recommendations to extend pump lifespan. You could even get a better deal on brand-new Pentax pumps, if the one you have isn’t working right.
Contact and Sales Information
Current Pentax drainage pumps price list and customized quotations are a call or message away. Our team of experts at UAE Famco Sanat are here so you can request assistance in choosing the right pump.
