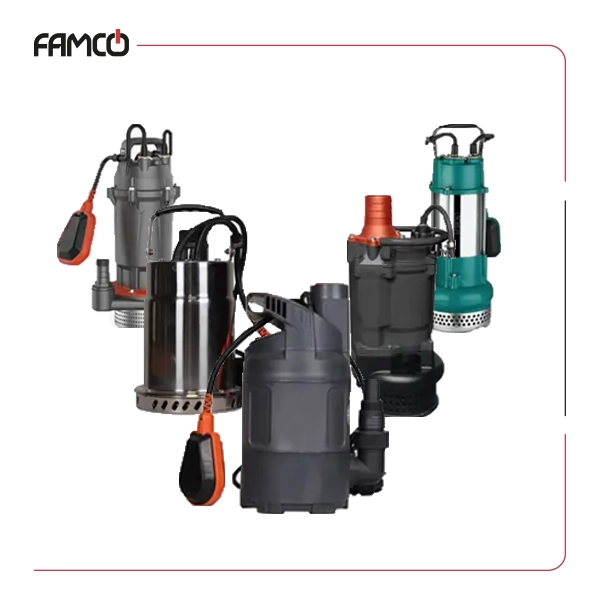

Leo Drainage Pumps

Leo Drainage Pumps Overview

Leo drainage pumps support a wide spectrum of water transfer and dewatering tasks across residential, commercial, agricultural, and light-industrial environments. They cover the power output ranges between 0.3 HP to 5.5 HP. Leo drainage pump can be immersed anywhere from shallow depths of 5 m to deeper levels of 25 m.

The Leo product family covers a broad power range, multiple body materials, and distinct hydraulic capabilities, which positions the brand as a frequent choice for users who require dependable water removal in clean-, grey-, and slightly contaminated-water settings.

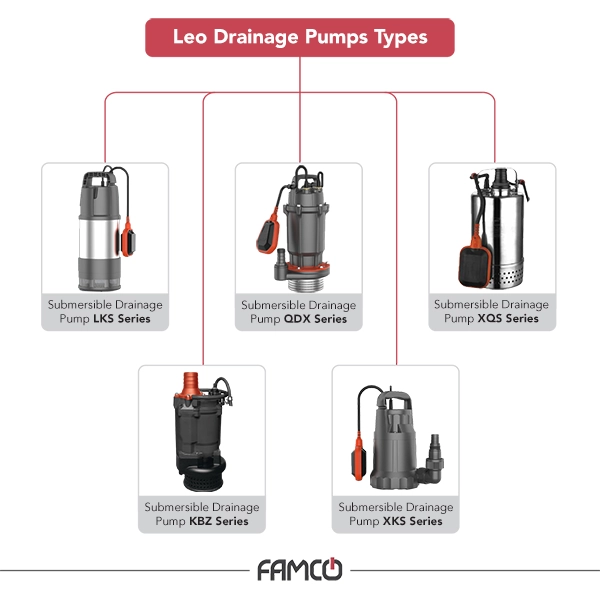

The KBZ series is cast iron, the QDX series is available in aluminum and cast iron, the XKS and LKS series come in stainless steel and plastic, and the XQS series is produced in cast iron and stainless steel.

Leo Drainage Pumps Applications

Leo pumps cover numerous application domains. Common use cases include basement water removal, construction-site dewatering, irrigation support, water transfer in farms, tank emptying, pool maintenance, and general flood management.

In commercial facilities, Leo pumps support HVAC system pits, utility rooms, and lift shafts. Industrial users utilize these pumps for process water control and general liquid transfer that requires compact equipment with consistent hydraulic output.

Leo Drainage Pumps Benefits

Leo drainage pumps provide strong hydraulic performance across diverse environments. Users gain access to wide flow ranges, high heads for vertical lift requirements, corrosion-resistant material options, and models engineered for clear and semi-dirty water handling.

Many Leo pump designs prioritize easy installation, simple service, and broad compatibility with common fittings and electrical configurations, which helps buyers integrate them into existing systems with minimal adjustment. Their performance profiles make them competitive options in cost-to-output ratios across the UAE market.

Leo Drainage Pumps Models

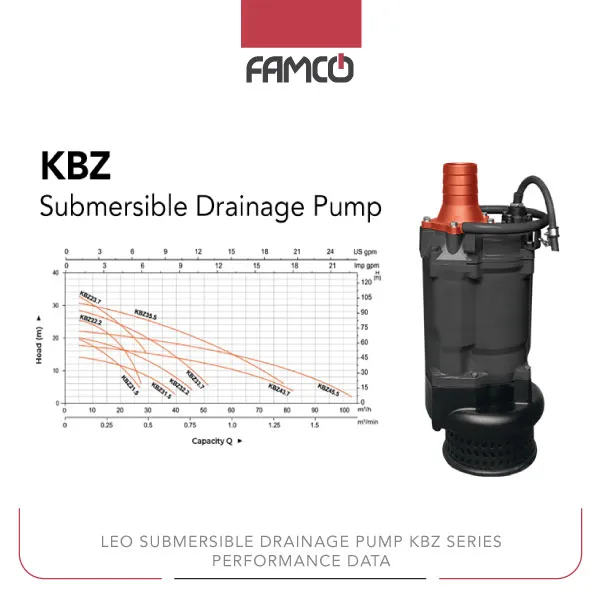

• KBZ Series

The KBZ series is built with a cast-iron body and a semi-open impeller, designed for intensive water-moving tasks with power range of 1.5 kW to 5.5 kW.

1. Leo 3HP Submersible Slurry Pump KBZ 32.2
2. Leo 2HP Submersible Slurry Pump KBZ 31.5
3. Leo 5HP Submersible Slurry Pump KBZ 23.7
4. Leo 3HP Submersible Slurry Pump KBZ 22.2
5. Leo 2HP Submersible Slurry Pump KBZ 21.5

Maximum flow rate	2.600 l/min
Maximum head	56 m
Max. immersion depth	25 m
Max. liquid temperature	40°c
Insulation class	B

The KBZ line addresses heavy-duty dewatering requirements in construction, mining, infrastructure works, tunnels, and industrial facilities. The semi-open impeller allows the pump to handle water containing sand, silt, or suspended particles typically encountered in large excavation or site-clearance projects.

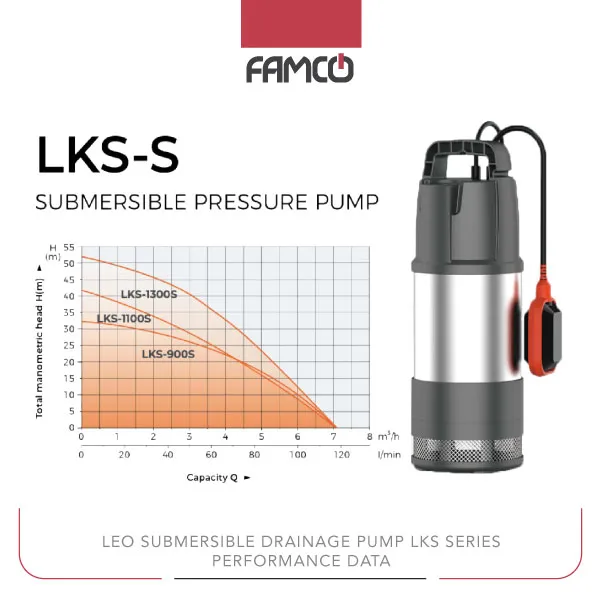

• LKS Series

The LKS series includes stainless-steel models between 0.75 kW and 1.3 kW, and plastic-body units between 0.25 kW and 1.04 kW.

Maximum flow rate	210 l/min
Maximum head	52 m
Max. Depth of immersion	7 m
Protection class	IP 68
Max. liquid Temperature	35°C

LKS pumps are used across domestic, agricultural, and construction settings. The series offers a balance between head capability and compact form factor, making it suitable for multi-level homes, service rooms, and pit installations where vertical lift requirements are more demanding than standard drainage tasks.

• XQS Series

The XQS series is built in stainless steel and cast iron, with a power range from 0.45 kW to 1.5 kW.

Maximum flow rate	383 l/min
Maximum head	42 m
Max. immersion depth	5m
Max. liquid temperature	+40°C
Insulation class	B

The XQS family addresses drainage needs involving higher output and moderate solids content. The cast-iron and stainless-steel construction supports usage in commercial buildings, farms, workshops, and construction sites dealing with slightly contaminated water.

• XKS Series

The XKS series covers a broad operational spectrum with stainless-steel units ranging from 0.3 kW to 1 kW, and plastic-body versions from 0.25 kW to 1.1 kW.

1. Leo 0.5HP Garden Submersible Drainage Pump XKS-400P
2. Leo 1HP Garden Submersible Drainage Pump XKS-750P
3. Leo 0.3HP Garden Submersible Drainage Pump XKS-250P
4. Leo 0.33 HP Submersible Drainage Pump XQS7.2-8.5/0.25S

Maximum flow rate	210 l/min
Maximum head	48 m
Maximum suction depth	7 m
Max. liquid Temperature	35°C



The XKS lineup is frequently selected for residential and commercial drainage setups that require consistent water transfer under variable conditions. Stainless-steel versions support more demanding tasks in facilities, farms, workshops, and construction zones where exposure to moisture, sediment, or intermittent debris is common.



For buyers in the UAE, Famco Sanat stands out as a trusted distributor of Leo drainage pumps in Dubai. The company supplies the full spectrum of Leo models, supports bulk procurement, and provides technical guidance for product selection based on hydraulic requirements and site conditions.
