Dab Drainage Pumps

Dab Drainage Pumps Overview

Dab drainage pumps cover power outputs from 0.28 HP up to 15 HP, with delivery heads reaching over 58 metres and flow rates suitable for everything from household drainage to demanding site dewatering. The lineup includes lightweight technopolymer models for clean and rainwater, as well as heavy-duty cast iron and abrasion-resistant pumps for sandy and construction water.

Most models support immersion depths up to 7 metres, while selected series extend to 20 meters for deeper applications. In the UAE, Dab drainage pumps are distributed through Famco Sanat, especially for residential compounds, commercial buildings, and construction support systems. It’s guaranteed that there’s a Dab drainage model with controlled, dependable water removal capabilities you can use in different environments, from domestic and commercial to light industrial settings.

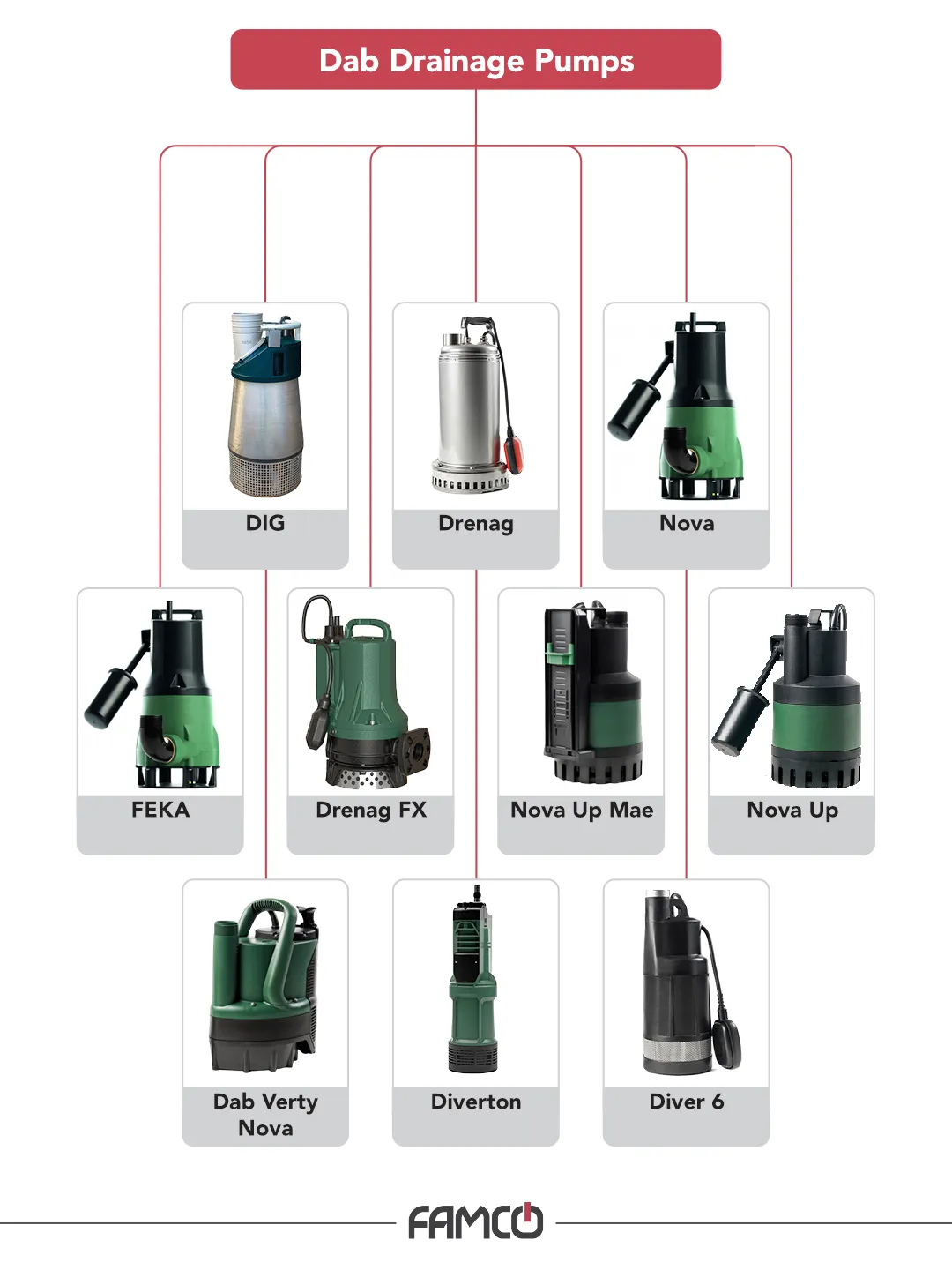

Dab Drainage Pumps Models and Series

The Dab drainage pump range includes several specialized series, developed for specific types of liquids, operating environments, and workloads.

Below are the most commonly requested models in the UAE based on real-world on-site data.

For full series details, exact Dab drainage model selection, price lists, and official catalogs, Famco Sanat is here to provide you with technical support.

Series	Pumped Liquid	What Sets It Apart	Power Range	Flow Rate (Max)	Head (Max. m)	Typical Use
Dab Nova Drainage Pump	Clear water, rainwater	Technopolymer body, up to 1 minute dry-run tolerance	0.3-0.7 HP	12-15 m³/h (200-250 l/min)	5-10.4	Basements, tanks, rainwater pits
Dab Feka Drainage Series	Wastewater, rainwater	Triple ring seal in oil bath	0.3-0.7 HP	200-250 l/min	6.4-8.9	Light wastewater drainage
Dab Nova UP Drainage Pumps	Dirty water (no fibres)	float switch option	0.28-0.69 HP	150-225 l/min	7.6-9.8	Domestic drainage, lifting
Dab Nova UP MAE Drainage Pumps	Dirty water (no fibres)	Built-in electronic flow switch	0.28-0.69 HP	150-225 l/min	7.6-9.8	Automatic domestic systems
Dab Verty Nova Pump Series	Dirty water (no fibres)	Stainless steel motor parts, oil pre-chamber seal	0.28-0.55 HP	116-166 l/min	6.9-9	Compact installations
Dab Drenag FX Drainage Pumps	Clear, rain, grey, sandy water	Cast iron body, abrasion handling	1.1-3.1	300-500 l/min	16.2-31.8	Construction sites

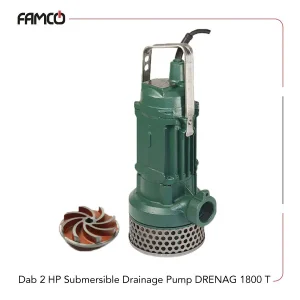

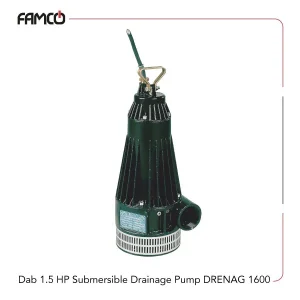

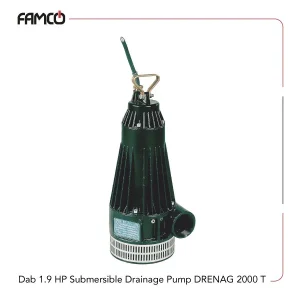

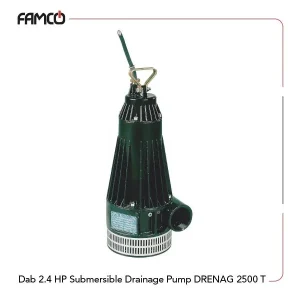

Dab Drenag Drainage Pumps	Wastewater, sandy, muddy water	Stainless steel casing, solid handling	1.36-1.6 HP	300-400 l/min	15.3-17	Heavy drainage, sites

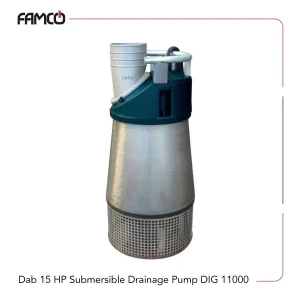

Dab DIG Drainage Pump Series	Abrasive water, rainwater, groundwater	Chrome cast iron impeller, industrial-grade units	1.5-15 HP	800-2200 l/min	11.3-58	Industrial dewatering
Dab Diverton Drainage Pumps	Clear, non-crystallized and chemically neutral water	Technopolymer/Stainless Steel impeller, 15-meter max. immersion depth	0.56-0.75 HP	80 l/min	29.6-44.5	Dewatering sites
Dab Diver 6 Drainage Series	Clean water	Stainless steel debris stainer, multi-impeller design made of Technopolymer/Stainless Steel	0.75-1 HP	90 l/min	24-46	Rain water systems and watering networks

Dab Drainage Pumps Usage in the UAE

In the UAE, Dab drainage pumps are commonly used for:

• basement water removal,
• underground tanks,
• construction dewatering,
• stormwater control,
• and utility rooms in residential and commercial buildings.

The Dab drainage pump series selection guide is straightforward. The Nova and Nova UP series are frequently selected for villas and apartment complexes, while Drenag FX and DIG pumps are used on construction sites where sand and abrasive particles are unavoidable.

Dab Drainage Pumps Advantages

Dab drainage pumps stand out in the UAE market due to their material selection, especially the use of technopolymer for corrosion resistance and cast iron for abrasive environments. Other benefits include:

1. Accurate pump type to reduce oversizing and unnecessary power consumption
2. Compact and easy to install Dab pumps
3. spare parts availability and clear documentation

Also, most drainage pumps by Dab integrate well into both manual and automatic systems.

Dab Drainage Pumps Repair Services and Maintenance

Routine maintenance for Dab drainage pumps mainly involves:

• cleaning the suction grille,
• checking float switches or electronic controls,
• Inspecting seals when handling dirty or sandy water.

Heavy-duty models, such as Drenag FX and DIG, require periodic inspection of impellers and seals due to abrasive operation. In the UAE, Famco Sanat provides support for troubleshooting, spare parts supply, and model replacement guidance to extend service life and maintain performance.

Conclusion

Dab drainage pumps cover a wide range of applications, from simple domestic water removal to demanding construction and industrial dewatering. With clearly defined series and material choices, selecting the right Dab drainage pump becomes straightforward when matched to the actual site conditions.

You can obtain official catalogs, updated price lists, and technical quotations for Dab pumps directly through Famco Sanat, along with expert assistance in choosing the correct model for your project.
