Calpeda Submersible Pumps Overview
Calpeda submersible pumps’ flow rates range from approximately 2.5 to 15,000 l/min (0.15 to 900 m³/h), with delivery heads of 4 to 850 m, and power ratings from about 0.5 to 540 HP (0.37 to 400 kW). The collection supports continuous-duty operation in boreholes ranging from 4″ to 18″. Choosing from the extensive range of submersible Calpeda pumps translates to easy-handling of varying sand content, elevated pressures, and stable operating cycles.
Calpeda Submersible Pumps Models

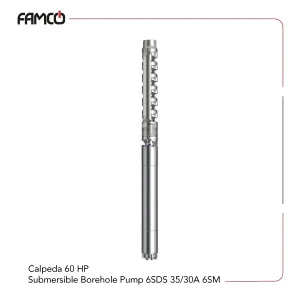

SDS Calpeda Submersible Pumps
High-head submersible borehole pumps for 6″, 8″, 10″, 12″, 14″, and 18″ wells.
Flow range: ≈ 250-15,000 l/min (15-900 m³/h)
Head range: 5.5-850 m
Power range: approx. 5.5-540 HP (4-400 kW)
Liquid temperature: up to 25 °C
Maximum sand content:
- 100 g/m³ (SDS 6″ and 8″)
- 40 g/m³ (SDS 10″, 12″, 14″, 18″)
- 150 g/m³ (I-SDS 6″, 8″, 10″ and I-SDR 6″)
Duty: Continuous
Typical use: Water supply systems, civil and industrial installations, fire-fighting systems, and high-demand irrigation networks.
SDP Calpeda Submersible Pumps
Submersible borehole pumps for 4″ and 6″ wells, suitable for medium to high head applications with abrasive tolerance.
Flow range: ≈ 2.5-670 l/min (0.15-40.2 m³/h)
Head range: 4-650 m
Power range: ≈ 0.5-50 HP (0.37-37 kW)
Construction: External jacket in AISI 304 stainless steel
Impellers: Radial floating impellers for 4SDP, and radial impellers for 6SDP
Liquid temperature:
- Up to 35 °C for 4″ motors
- Up to 30 °C for 6″ motors
Maximum sand content:
- 150 g/m³ for 4SDP
- 300 g/m³ for 6SDP
- Up to 300 g/m³ for high solids and sand content
Duty: Continuous

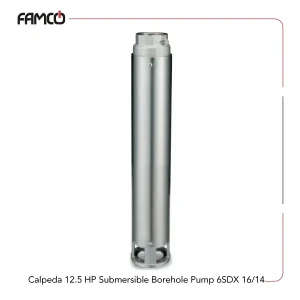

SDX Calpeda Submersible Pumps
High-performance submersible borehole pumps for 6″ and 8″ wells.
Flow range: ≈ 100-2,000 l/min (6-120 m³/h)
Head range: 8.2-700 m
Power range: approx. 3-150 HP (2.2-110 kW)
Liquid temperature limits:
- 35 °C for 4SDX
- 30 °C for 6SDX
- 60 °C for 8SDX
- 90 °C for SDXL
Maximum sand content:
- 50 g/m³ for 4SDX, 6SDX, 8SDX
- 100 g/m³ for SDXL
Duty: Continuous
Note:

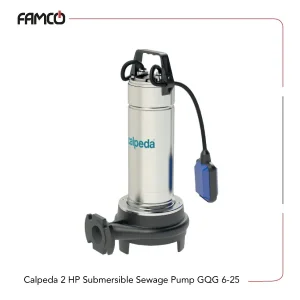

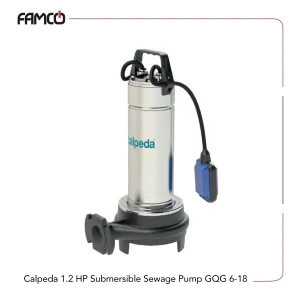

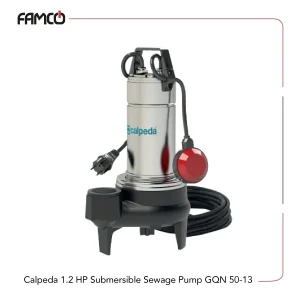

We also have an extensive range of Calpeda sewage pumps and Calpeda drainage pumps, all made for operating in submerged conditions with ease.
Calpeda Submersible Pumps Applications
- Supplying municipal and civil water needs: SDS series, SDP series
- Industrial water transfer: SDS and SDX series
- Deep well and irrigation: SDS series, SDX series
- Medium-depth agricultural wells: SDP series
- Fire-fighting systems: SDS series with high-head configurations
- High-temperature or demanding areas: SDX and SDXL series
Calpeda Submersible Pumps Advantages
Choosing a Calpeda submersible pump means investing in:
- High efficiency & reliability with multi-stage performance.
- Energy-saving design for lower operating costs.
- Durability thanks to stainless steel construction.
- Wide range of models suited for different water depths and flow requirements.
- Silent operation, making them ideal for both residential and commercial use.
Calpeda submersible pumps provide a dedicated series for depth, temperature, sand content, and flow demand. The models we have here at Famco Sanat allow precise pump selection for continuous operation in both standard and extreme applications.
