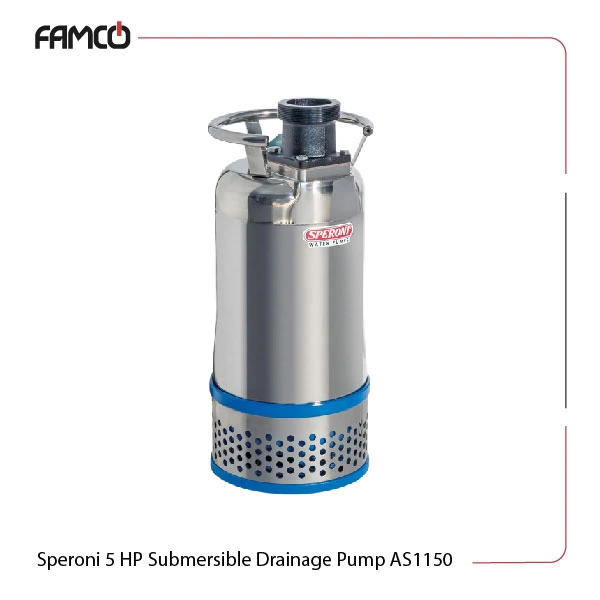

Speroni 5 HP Submersible Drainage Pump AS1150

4 kW (5 HP)

three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Drainage Pump Tag: Speroni Pumps

Overview of Speroni 5 HP Submersible Drainage Pump AS1150

The AS1150 pump operates at 2.2 kW (3 HP) and achieves a maximum flow rate of 42 m3/h. This Speroni pump can handle heads ranging from 4.6 to 20.5 meters. For home use, this product supports liquid temperatures up to 35°C, while for other applications, it can manage temperatures up to 50°C. The maximum immersion depth is substantial in Speroni submersible pumps, and this one, particularly, has it set at 10 meters for home, but with the appropriate cable length, it can reach 20 meters. This high-performance three-phase pump is designed for both home and industrial applications. Its powerful motor and durable materials ensure reliable operation in various environments. Its ability to handle significant flow rates and depths makes it suitable for diverse tasks, from draining to irrigation.

Speroni 5 HP Submersible Drainage Pump AS1150 Specifications

The pump’s construction materials provide longevity and resistance to wear, considering it is a valuable addition to any toolkit. This submersible pump operates on a three-phase voltage of 400V and a frequency of 50 Hz. The insulation class is F, and it has an IP 68 protection rating. The pump body is made from spheroidal cast iron, while the impeller is crafted from high chrome alloy (HCR), all sturdy materials. The shaft of this Speroni submersible pump is made of stainless steel AISI 304, and it features a double mechanical seal in the oil chamber, composed of ceramic/graphite/NBR and silicon/silicon/NBR for enhanced reliability. Overall, this series of drainage pumps offers a delicate delivery with a minimum suction level of 85 mm.

Specification	Value
Power (kW)	4
Power (HP)	5
Max. flow rate (m3/h)	60
Head	1-24.5
Home use liquid temperature	up to 35°C
Max. liquid temperature (other uses)	50°C
Home use maximum immersion depth	10 m
Maximum immersion depth (with the right cable length)	20 mt
Min. suction level	85 mm
Three-phase voltage	400V
Frequency	50 Hz
Insulation Class	F
Protection	IP 68

Speroni 5 HP Submersible Drainage Pump AS1150 Materials

Pump body: Spheroidal cast iron
Impeller: High chrome alloy (HCR)
Shaft: Stainless steel AISI 304
Double mechanical seal in oil chamber: Ceramic/Graphite/NBR, Silicon/Silicon/NBR

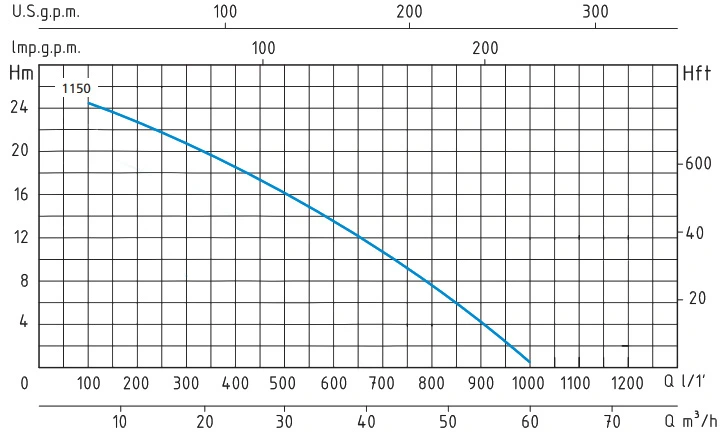

Speroni 5 HP Submersible Drainage Pump AS1150 Performance Curve

Speroni 5 HP Submersible Drainage Pump AS1150 Technical Data

m3/h	6	12	18	30	42	48	60
lt/1’	100	200	300	500	700	800	1000
H (m)	24.5	23	21	16	22	7	1

Speroni 5 HP Submersible Drainage Pump AS1150 Applications

Irrigation systems for agriculture
Drainage in construction sites
Water supply for residential use
Industrial fluid transfer

Speroni 5 HP Submersible Drainage Pump AS1150 Benefits

High efficiency with a powerful motor
Durable construction for long-lasting use
Versatile temperature handling for various applications
Easy installation with multiple immersion depth options

Speroni 5 HP Submersible Drainage Pump AS1150 Price List

No.	Name	Price
1	Speroni 5 HP Submersible Drainage Pump AS1150 Price	Contact us

Brand	Speroni
Power (kW)	4
Power (HP)	5
Maximum Flow Rate (m3/h)	60
Maximum Delivery Head (m)	24.5
Maximum Liquid Temperature (°C)	35, 50
Maximum immersion depth (m)	20
Voltage (V)	400
Frequency (Hz)	50
Insulation Class	F
Degree of Protection	IP68
Pump Body	Cast Iron
Impeller Material	High Chrome Alloy
Mechanical Seal	Ceramic/Graphite/NBR, Silicon/Silicon/NBR
Applications	Drainage, Fluid Transfer, Irrigation, Water supply systems
