Speroni 5.5 HP Three-phase Multistage Submersible Pump SP/TR 400-15 Specifications
This pump features a powerful 5.5 HP (4 kW) motor designed for continuous duty, making it suitable for demanding applications. It has a total of 15 stages, providing a maximum head of 97 meters and a flow rate of up to 400 liters per minute. The pump operates at a frequency of 50 Hz with a two-pole motor, ensuring efficient performance. It is built to handle clean water with a maximum temperature of 35°C and sand content up to 50 g/m3. In line with Speroni pumps’ goals, the SP 400-15 is well-protected against dust and water ingress (rated IP68), and it can be immersed up to 150 meters down. The motor features an insulation class F, giving it increased safety and durability. The shaft is made of stainless steel AISI 304, and the mechanical seal is composed of ceramic and graphite, which enhances longevity of this series of Speroni submersible pumps, in general. The impellers are made from Noryl, a durable plastic material suitable for water pumping tasks. Designed for a three-phase power supply at 400V, this pump is ideal for industrial, agricultural, or large-scale water transfer applications, where high performance and reliability are essential.
| Specification | Value |
| Power (HP) | 5.5 |
| Power (kW) | 4 |
| Head (m) | 97 |
| Max. flow rate (l/min) | 400 |
| Max. immersion depth (m) | 150 |
| Three-phase voltage (V) | 400 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Number of stages | 15 |
| Type of water | clean water |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel aisi 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

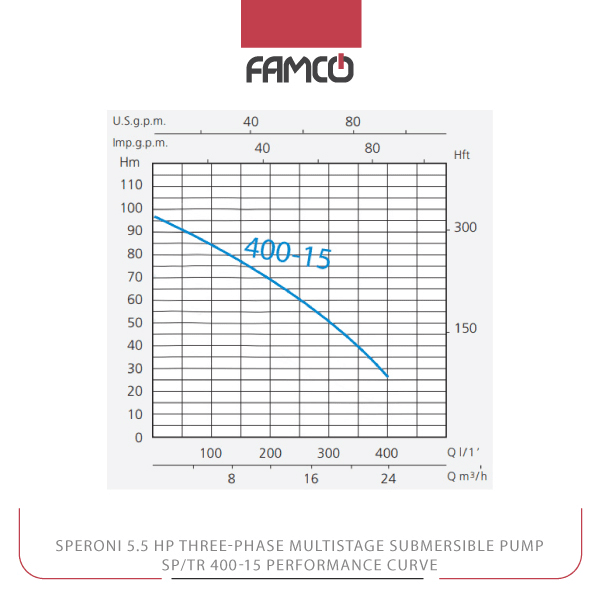

Speroni 5.5 HP Three-phase Multistage Submersible Pump SP/TR 400-15 Performance Data
| M3/h | 0 | 8.4 | 9.6 | 12 | 14.4 | 16 | 17 | 18 | 22 | 23 | 24 |
| l/min | 0 | 140 | 160 | 200 | 240 | 260 | 280 | 300 | 360 | 380 | 400 |
| Head (m) | 97 | 79 | 76 | 69 | 63 | 58 | 54 | 50 | 36 | 32 | 27 |

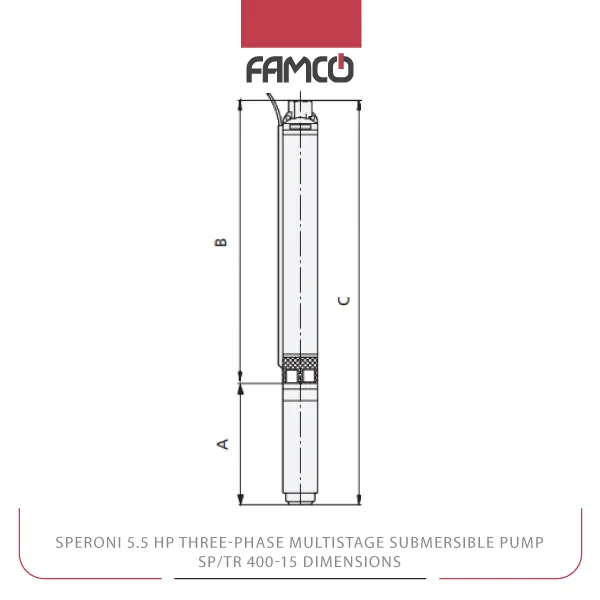

Speroni 5.5 HP Three-phase Multistage Submersible Pump SP/TR 400-15 Dimensions
| Dimensions (mm) | A | 683 |
| B | 1149 | |
| C | 1832 |
Speroni 5.5 HP Three-phase Multistage Submersible Pump SP/TR 400-15 Applications
- Industrial water transfer
- Agricultural irrigation systems
- Deep well water extraction
- Municipal water supply systems
Speroni 5.5 HP Three-phase Multistage Submersible Pump SP/TR 400-15 Benefits
- High efficiency with 15-stage design
- Durable stainless steel shaft and ceramic seals
- Suitable for deep immersion up to 150 meters
- Reliable operation with IP68 protection
Speroni 5.5 HP Three-phase Multistage Submersible Pump SP/TR 400-15 Price List
| No. | Name | Price |
| 1 | Speroni 5.5 HP Three-phase Multistage Submersible Pump SP/TR 400-15 Price | Contact us |
There are no reviews yet.
