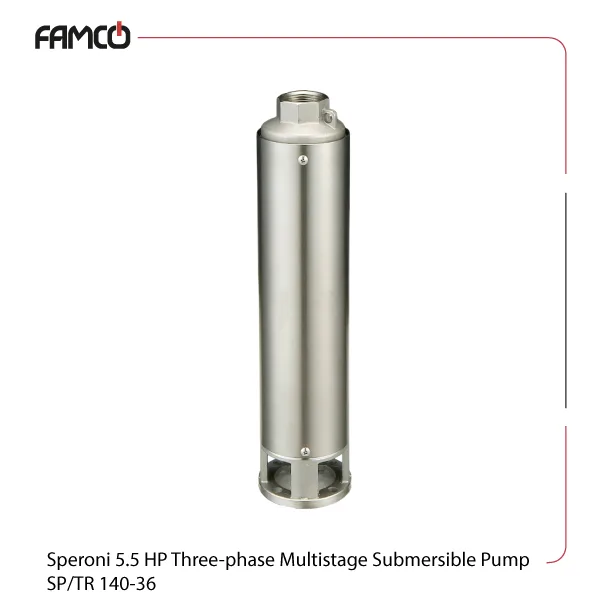

Speroni 5.5 HP Three-phase Multistage Submersible Pump SP/TR 140-36 Specifications
The presented pumping solution is provided by Speroni with a 5.5 HP performance pump that generates a head of 221 meters and handles a maximum flow rate of 140 liters per minute. The pump is built to operate at a maximum immersion depth of 150 meters, ideal for deep well or submersible tasks. It runs on a three-phase power supply of 400V at 50Hz, with a motor that has two poles and an insulation class of F. The device is protected with an IP68 rating, making it resistant to dust and water ingress, perfect for harsh environments. Its stainless steel AISI 304 shaft provides strength and corrosion resistance, while the ceramic/graphite mechanical seal offers reliable sealing performance. The impellers inside this Speroni pump are made from Noryl, a durable plastic material that ensures efficient fluid movement. The pump can operate with liquids up to 35°C and can handle sand content up to 50 g/m3, making this Speroni submersible pump suitable for various water and slurry applications. Its robust construction and high efficiency make it a versatile choice for industrial, agricultural, or municipal water management tasks.
| Specification | Value |
| Power (HP) | 5.5 |
| Power (kW) | 4 |
| Head (m) | 221 |
| Max. flow rate (l/min) | 140 |
| Max. immersion depth (m) | 150 |
| Three-phase voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

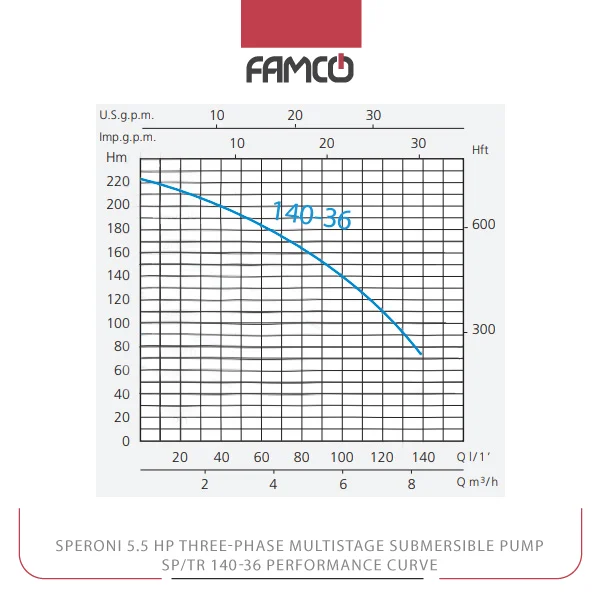

Speroni 5.5 HP Three-phase Multistage Submersible Pump SP/TR 140-36 Performance Data
| M3/h | 0 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 7.2 | 8.4 |
| l/min | 0 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 |
| Head (m) | 221 | 190 | 181 | 173 | 164 | 154 | 143 | 112 | 72 |

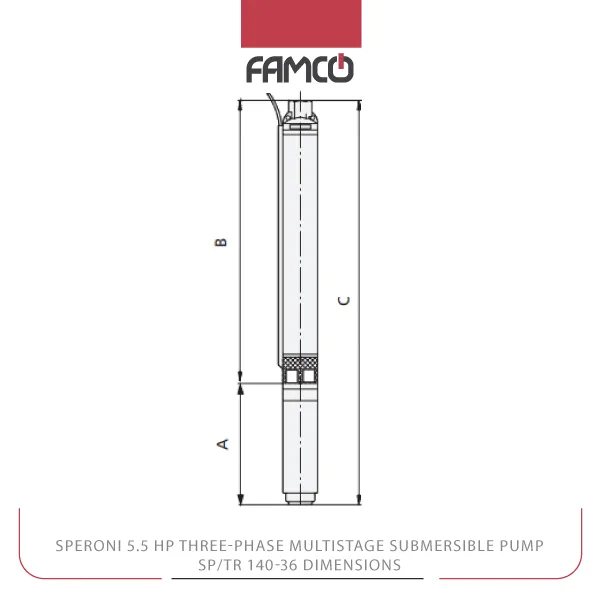

Speroni 5.5 HP Three-phase Multistage Submersible Pump SP/TR 140-36 Dimensions
| Dimensions (mm) | A | 683 |
| B | 1318 | |
| C | 2001 |
Speroni 5.5 HP Three-phase Multistage Submersible Pump SP/TR 140-36 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Wastewater and slurry pumping
Speroni 5.5 HP Three-phase Multistage Submersible Pump SP/TR 140-36 Benefits
- High efficiency with powerful motor
- Durable construction for tough environments
- Corrosion-resistant stainless steel shaft
- Suitable for various liquids up to 35°C
Speroni 5.5 HP Three-phase Multistage Submersible Pump SP/TR 140-36 Price List
| No. | Name | Price |
| 1 | Speroni 5.5 HP Three-phase Multistage Submersible Pump SP/TR 140-36 Price | Contact us |
