Speroni 5.5 HP Three-phase Multistage Submersible Pump SP 200-23 Specifications
This high-performance pump features a powerful 5.5 HP (4 kW) motor designed for continuous operation. It has a total of 23 stages, providing a maximum head of 148 meters and a flow rate of up to 200 liters per minute. The pump operates on a three-phase voltage of 400V at 50Hz, with a powerful insulation class F for safety and durability. Its stainless steel AISI 304 shaft ensures corrosion resistance, making it suitable for demanding environments. The mechanical seal of this pumping solution, made of ceramic and graphite, enhances sealing efficiency, reducing the Speroni pumps’ maintenance needs. The impellers are crafted from Noryl, a durable plastic material that withstands various liquids. The pump can operate at depths up to 150 meters and handle liquids with a temperature up to 35°C. The SP 4-inch series of Speroni submersible pumps is designed to tolerate sand content up to 50 g/m3, making it ideal for applications involving slightly contaminated liquids. Its protection degree of IP68 guarantees complete protection against dust and water ingress, suitable for submerged use in harsh conditions. Overall, this pump combines power, durability, and efficiency, making it suitable for a wide range of industrial and water management applications, especially where high head and flow are required.
| Specification | Value |
| Power (HP) | 5.5 |
| Power (kW) | 4 |
| Head (m) | 148 |
| Max. flow rate (l/min) | 200 |
| Max. immersion depth (m) | 150 |
| Three-phase voltage (V) | 400 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Number of stages | 23 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

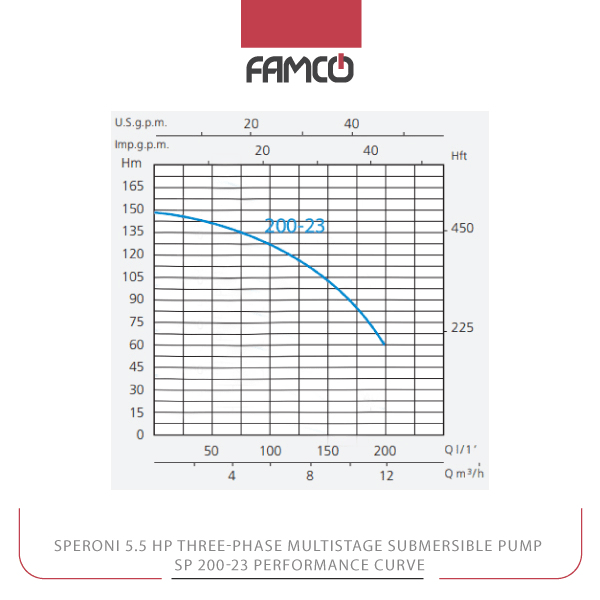

Speroni 5.5 HP Three-phase Multistage Submersible Pump SP 200-23 Performance Data
| M3/h | 0 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 7.2 | 8.4 | 9.6 | 10.8 | 12 |
| l/min | 0 | 60 | 70 | 80 | 90 | 100 | 120 | 140 | 160 | 180 | 200 |
| Head (m) | 148 | 144 | 140 | 134 | 131 | 127 | 118 | 108 | 95 | 79 | 60 |

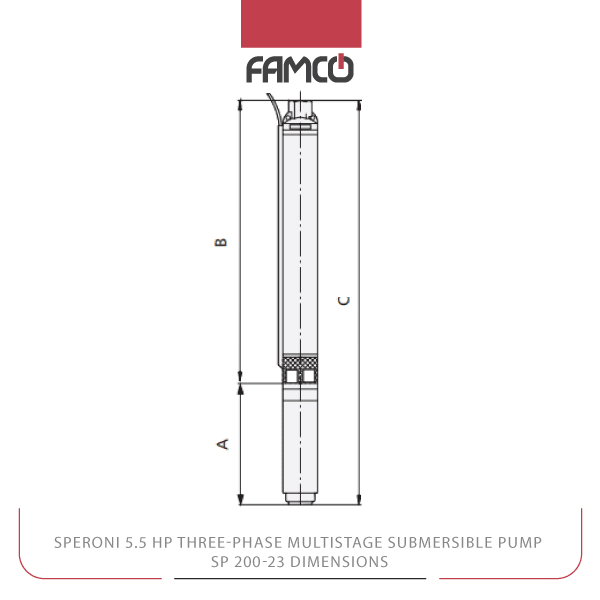

Speroni 5.5 HP Three-phase Multistage Submersible Pump SP 200-23 Dimensions
| Dimensions (mm) | A | 683 |
| B | 921 | |
| C | 1604 |
Speroni 5.5 HP Three-phase Multistage Submersible Pump SP 200-23 Applications
- Industrial water transfer and boosting
- Municipal water supply systems
- Agricultural irrigation projects
- Flood control and drainage
Speroni 5.5 HP Three-phase Multistage Submersible Pump SP 200-23 Benefits
- High efficiency with 23 stages for maximum head
- Durable stainless steel shaft and ceramic seal for longevity
- Suitable for submerged use with IP68 protection
- Handles liquids with moderate sand content and temperature
Speroni 5.5 HP Three-phase Multistage Submersible Pump SP 200-23 Price List
| No. | Name | Price |
| 1 | Speroni 5.5 HP Three-phase Multistage Submersible Pump SP 200-23 Price | Contact us |
