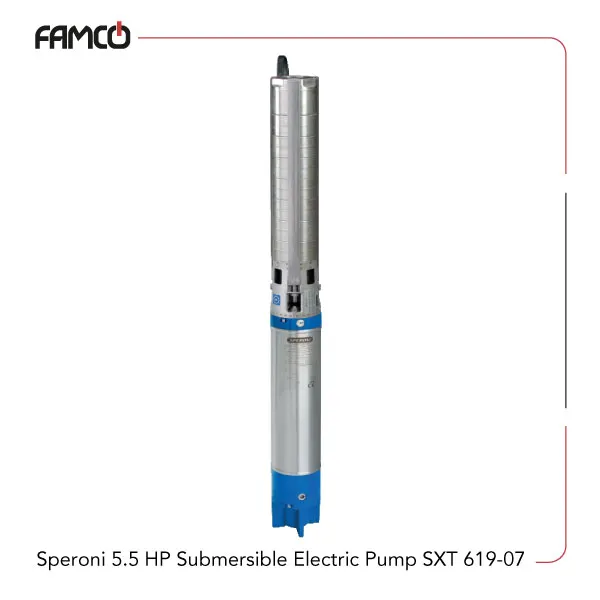

Speroni 5.5 HP Submersible Electric Pump SXT 619-07 Specifications
Speroni submersible electric pump SXT 619-07 delivers a power output of 4 kW (5.5 HP), providing the performance required for demanding water-handling applications. It supports a maximum flow rate of 23 m³/h (383 L/min), ensuring efficient and continuous water transfer. With a maximum head of 84 meters, the pump offers strong pressure capabilities suitable for deep-well and high-lift operations. The unit features a 2.5-inch (DNM) inlet diameter, allowing straightforward integration with standard piping systems. Engineered to operate with liquids up to 35°C, it is well suited for a variety of environments, including wells, reservoirs, and industrial installations. This Speroni submersible pump can be submerged to depths of up to 350 meters, making it ideal for deep groundwater extraction. Designed to withstand challenging water quality, it tolerates sand content up to 50 g/m³, enhancing durability in abrasive or particulate-laden conditions. The three-phase power supply ensures stable and reliable performance, even under continuous heavy load. The pump is built with insulation class B for dependable thermal protection and carries an IP68 protection rating, providing complete resistance to dust ingress and long-term water submersion.
| Specification | Value |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Maximum Flow rate (m3/h) | 23 |
| Maximum Flow rate (l/min) | 383 |
| Maximum Head (m) | 84 |
| DNM | 2″ 1/2 |
| Liquid temperature | up to 35°C |
| Submersion depth | 350 mt |
| Sand content | 50 g/m3 |
| Phase | Three-phase |
| Insulation Class | B |
| Protection Degree | IP 68 |

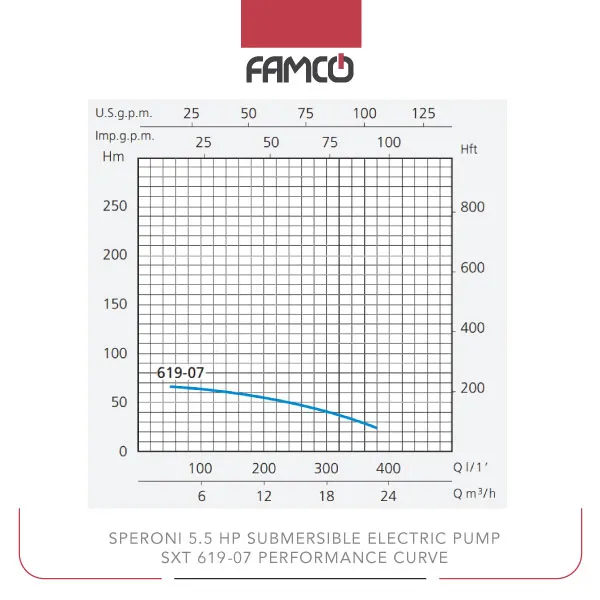

Speroni 5.5 HP Submersible Electric Pump SXT 619-07 Performance Data
| Q (m3/h) | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| Q (l/min) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| H (m) | 75 | 74 | 71 | 66 | 59 | 51 | 40 | 32 |
Speroni 5.5 HP Submersible Electric Pump SXT 619-07 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Municipal water supply projects
- Industrial fluid transfer
Speroni 5.5 HP Submersible Electric Pump SXT 619-07 Benefits
- High flow rate and strong head for efficient pumping
- Durable construction suitable for sandy environments
- Deep submersion capability for versatile use
- Reliable performance with IP 68 protection
Speroni 5.5 HP Submersible Electric Pump SXT 619-07 Price List
| No. | Name | Price |
| 1 | Speroni 5.5 HP Submersible Electric Pump SXT 619-07 Price | Contact us |
