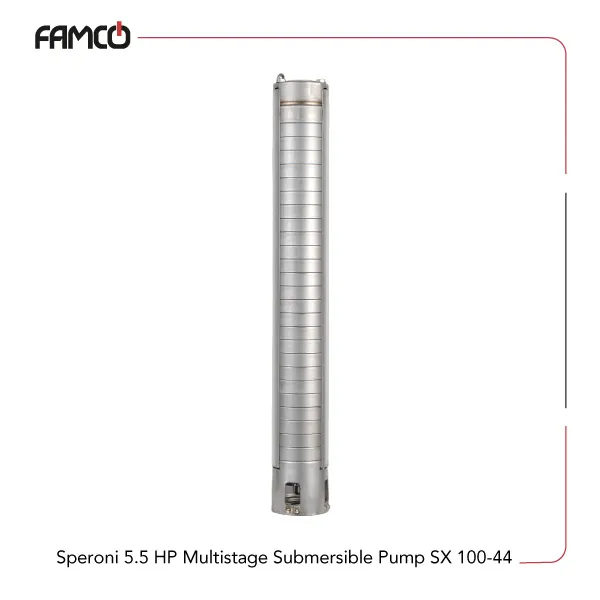

Speroni 5.5 HP Multistage Submersible Pump SX 100-44

Speroni 5.5 HP Multistage Submersible Pump SX 100-44 Specifications

This product features a powerful 5.5 HP (4 kW) motor designed for high performance. It can handle a maximum flow rate of 100 liters per minute and delivers a maximum head of 279 meters. The pump consists of 44 stages, making it suitable for deep and demanding applications. It can operate at a maximum immersion depth of 150 meters and is capable of handling liquids up to 35°C. The Speroni submersible pump from SX series is built with durable stainless steel AISI 304 for the external casing, motor shaft, and stages with impellers, giving this Speroni pump all the protection it needs against corrosion. It is designed to manage sand content up to 50 g/m3, making it ideal for various water transfer and pumping tasks in challenging environments.



Specification	Value
Power (HP)	5.5
Power (kW)	4
Max. flow rate (l/min)	100
Max. delivery head (m)	279
Number of stages	44
Max. immersion depth (m)	150
Max. liquid temperature (°C)	35
Sand content (g/m3)	50
External casing	stainless steel AISI 304
Motor shaft	stainless steel AISI 304
Stages and impellers	stainless steel AISI 304

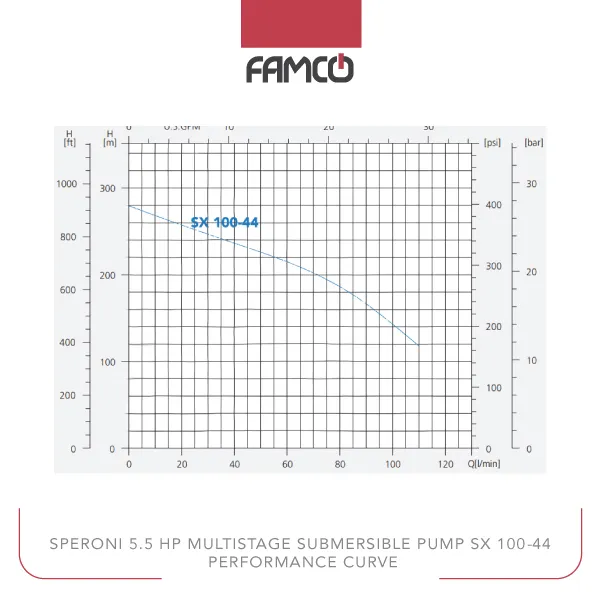

Speroni 5.5 HP Multistage Submersible Pump SX 100-44 Performance Data

m³/h	0	1.8	2.1	2.4	2.7	3	3.6	4.2	4.8	5.4	6
l/min	0	30	35	40	45	50	60	70	80	90	100
H metres	279	247	242	237	231	226	215	202	187	166	143







Speroni 5.5 HP Multistage Submersible Pump SX 100-44 Applications

• Deep well water extraction
• Irrigation systems
• Municipal water supply
• Industrial water transfer



Speroni 5.5 HP Multistage Submersible Pump SX 100-44 Benefits

• High efficiency with 44 stages for deep applications
• Corrosion-resistant stainless steel construction
• Capable of handling sand and high immersion depths
• Powerful motor for high flow and head performance



Speroni 5.5 HP Multistage Submersible Pump SX 100-44 Price List

No.	Name	Price
1	Speroni 5.5 HP Multistage Submersible Pump SX 100-44 Price	Contact us
