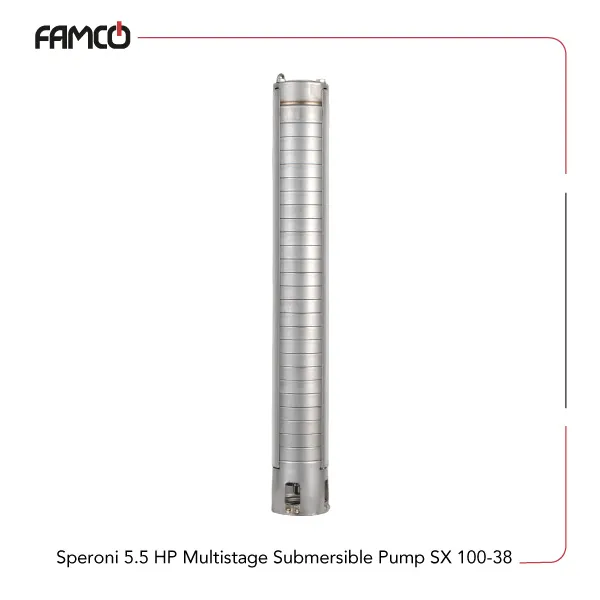

Speroni 5.5 HP Multistage Submersible Pump SX 100-38 Specifications
This model provides a flow rate of 100 liters per minute and is capable of pushing water up to 242 meters, which makes it suitable for deep well operation and demanding water transfer setups. Its stainless steel AISI 304 construction, extending through the casing, impellers, and motor shaft, gives the pump strong protection against corrosion and abrasion from sand particles. With 38 stages powered by a 5.5 HP motor, the SX 100-38 maintains steady pressure even when submerged to depths approaching 150 meters. It performs reliably in water temperatures up to 35 degrees Celsius, supporting a range of uses from irrigation to industrial water movement. Installers often choose Speroni submersible pumps when they need durable equipment that can manage continuous workloads without compromising efficiency. The SX 100-38 brings together long service life, consistent pressure, and an installation-friendly design that fits well into both residential and commercial water systems.
| Specification | Value |
| Power (HP) | 5.5 |
| Power (kW) | 4 |
| Max. flow rate (l/min) | 100 |
| Max. delivery head (m) | 242 |
| Number of stages | 38 |
| Max. immersion depth (m) | 150 |
| Max. liquid temperature (°C) | 35 |
| Sand content (g/m3) | 50 |
| External casing | stainless steel AISI 304 |
| Motor shaft | stainless steel AISI 304 |
| Stages and impellers | stainless steel AISI 304 |

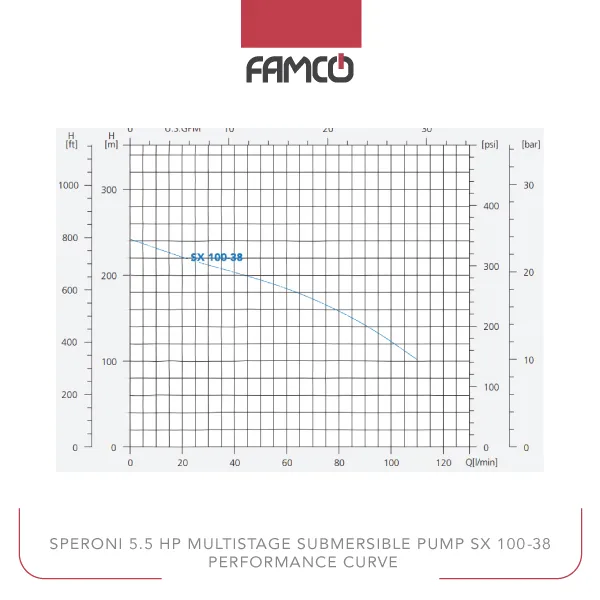

Speroni 5.5 HP Multistage Submersible Pump SX 100-38 Performance Data
| m³/h | 0 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 |
| l/min | 0 | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 90 | 100 |
| H metres | 242 | 212 | 208 | 203 | 199 | 194 | 184 | 172 | 158 | 142 | 123 |
Speroni 5.5 HP Multistage Submersible Pump SX 100-38 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water supply
- Municipal water projects
Speroni 5.5 HP Multistage Submersible Pump SX 100-38 Benefits
- High efficiency with 38 stages for deep water pumping
- Corrosion-resistant stainless steel construction
- Capable of handling water with sand content up to 50 g/m3
- Suitable for deep immersion up to 150 meters
Speroni 5.5 HP Multistage Submersible Pump SX 100-38 Price List
| No. | Name | Price |
| 1 | Speroni 5.5 HP Multistage Submersible Pump SX 100-38 Price | Contact us |
