Speroni 4 HP Three-phase Multistage Submersible Pump SP/TR 100-35 Specifications
This high-performance pump features a 4 HP (3 kW) motor designed for continuous duty. It operates at a frequency of 50 Hz with a two-pole motor, ensuring this Speroni pump has it all when it comes to reliable water transfer. The pump can handle a maximum head of 231 meters and a flow rate of up to 100 liters per minute, making it ideal for deep water extraction or transfer tasks. This Speroni submersible pump is capable of functioning at immersion depths up to 150 meters, which is perfect for deep well or borehole applications. The motor shaft is made of durable stainless steel AISI 304, providing corrosion resistance and longevity. The mechanical seal, made of ceramic and graphite, offers excellent sealing performance to prevent leaks. The impellers are crafted from Noryl, a strong and lightweight material that enhances efficiency. With 35 stages, this pump can generate high pressure, suitable for various industrial or agricultural uses. It can operate with liquid temperatures up to 35°C and handle sand content up to 50 g/m³for different water qualities. The insulation class F has made this Speroni product safe and durable under electrical stress, while the protection degree IP68 guarantees resistance against dust and water ingress.
| Specification | Value |
| Power (HP) | 4 |
| Power (kW) | 3 |
| Head (m) | 231 |
| Max. flow rate (l/min) | 100 |
| Max. immersion depth (m) | 150 |
| Three-phase voltage (V) | 400 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |
| Number of stages | 35 |

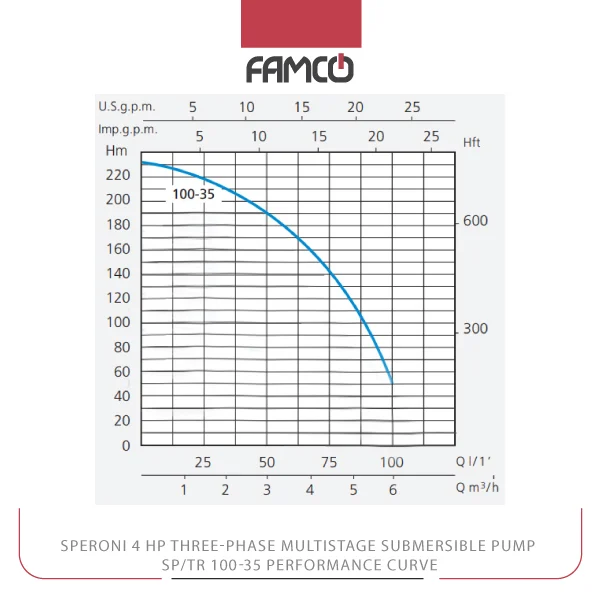

Speroni 4 HP Three-phase Multistage Submersible Pump SP/TR 100-35 Performance Data
| M3/h | 0 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 |
| l/min | 0 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Head (m) | 231 | 217 | 212 | 208 | 202 | 189 | 170 | 149 | 120 | 87 | 50 |

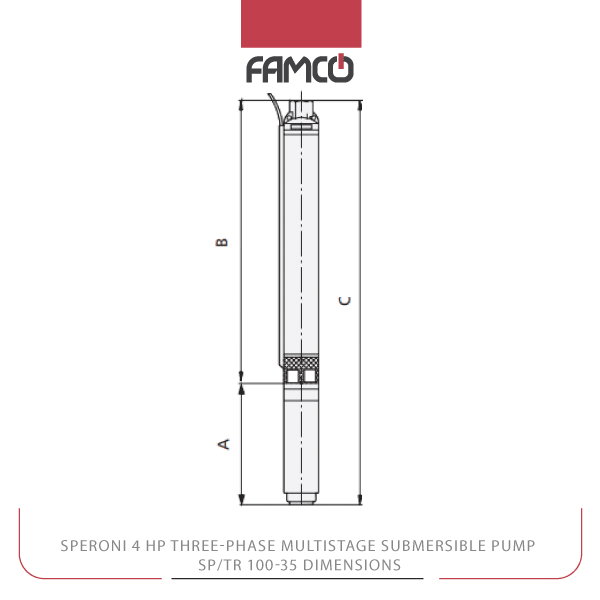

Speroni 4 HP Three-phase Multistage Submersible Pump SP/TR 100-35 Dimensions
| Dimensions (mm) | A | 607 |
| B | 934 | |
| C | 1541 |
Speroni 4 HP Three-phase Multistage Submersible Pump SP/TR 100-35 Applications
-
- Deep well water extraction
- Irrigation systems in agriculture
- Industrial water transfer
- Municipal water supply
Speroni 4 HP Three-phase Multistage Submersible Pump SP/TR 100-35 Benefits
- High efficiency with 35 stages for strong pressure
- Durable construction with stainless steel shaft and IP68 protection
- Suitable for deep immersion up to 150 meters
- Reliable continuous-duty motor for long-term use
Speroni 4 HP Three-phase Multistage Submersible Pump SP/TR 100-35 Price List
| No. | Name | Price |
| 1 | Speroni 4 HP Three-phase Multistage Submersible Pump SP/TR 100-35 Price | Contact us |
There are no reviews yet.
