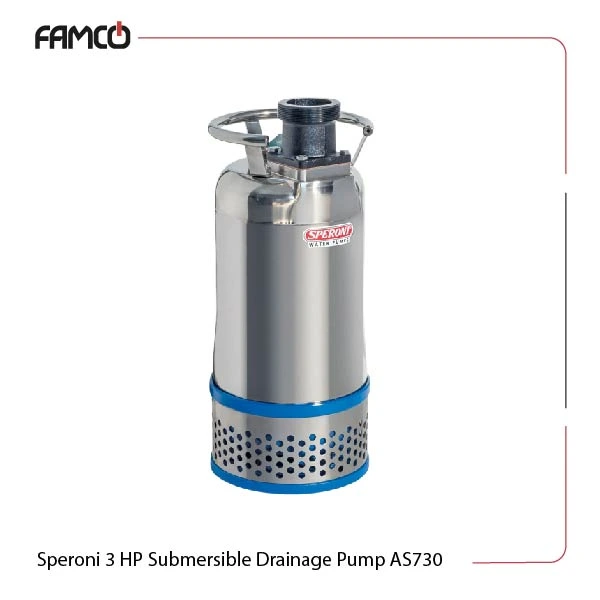

Speroni 3 HP Submersible Drainage Pump AS730 Specifications
For home use, these submersible pumps support liquid temperatures up to 35°C, while for other applications, they can manage temperatures up to 50°C. The maximum immersion depth is substantial in Speroni submersible pumps, and this one, particularly, has it set at 10 meters depth, but with the appropriate cable length, it can reach 20 meters. The minimum suction level is 85 mm, which is standard in a draining pump of this type. This pump operates on a three-phase voltage of 400V and a frequency of 50 Hz. The insulation class is F, and it has an IP 68 protection rating. The pump body is made from spheroidal cast iron, while the impeller is crafted from high chrome alloy (HCR), all sturdy materials. The shaft of this submersible pump is made of stainless steel AISI 304, and it features a double mechanical seal in the oil chamber, composed of ceramic/graphite/NBR and silicon/silicon/NBR for enhanced reliability.
| Specification | Value |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Max. flow rate (m3/h) | 42 |
| Head | 4.6-20.5 |
| Home use liquid temperature | up to 35°C |
| Max. liquid temperature (other uses) | 50°C |
| Home use maximum immersion depth | 10 m |
| Maximum immersion depth (with the right cable length) | 20 mt |
| Min. suction level | 85 mm |
| Three-phase voltage | 400V |
| Frequency | 50 Hz |
| Insulation Class | F |
| Protection | IP 68 |
Speroni 3 HP Submersible Drainage Pump AS730 Materials
- Pump body: Spheroidal cast iron
- Impeller: High chrome alloy (HCR)
- Shaft: Stainless steel AISI 304
- Double mechanical seal in oil chamber: Ceramic/Graphite/NBR, Silicon/Silicon/NBR
Speroni 3 HP Submersible Drainage Pump AS730 Technical Data
| m3/h | 6 | 12 | 18 | 30 | 42 |
| lt/1’ | 100 | 200 | 300 | 500 | 700 |
| H (m) | 20.5 | 18.6 | 16.4 | 11.4 | 4.6 |

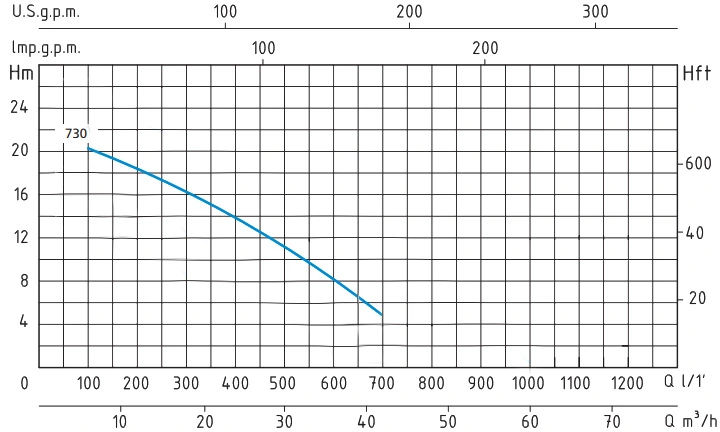

Speroni 3 HP Submersible Drainage Pump AS730 Performance Curve
Speroni 3 HP Submersible Drainage Pump AS730 Applications
- Residential water supply systems
- Irrigation in agricultural settings
- Industrial fluid transfer
- Drainage in construction sites
Speroni 3 HP Submersible Drainage Pump AS730 Benefits
- High efficiency with a maximum flow rate of 42 m3/h
- Durable materials ensure long-lasting performance
- Versatile temperature range for various applications
- IP 68 protection rating for reliable operation in wet conditions
Speroni 3 HP Submersible Drainage Pump AS730 Price List
| No. | Name | Price |
| 1 | Speroni 3 HP Submersible Drainage Pump AS730 Price | Contact us |
