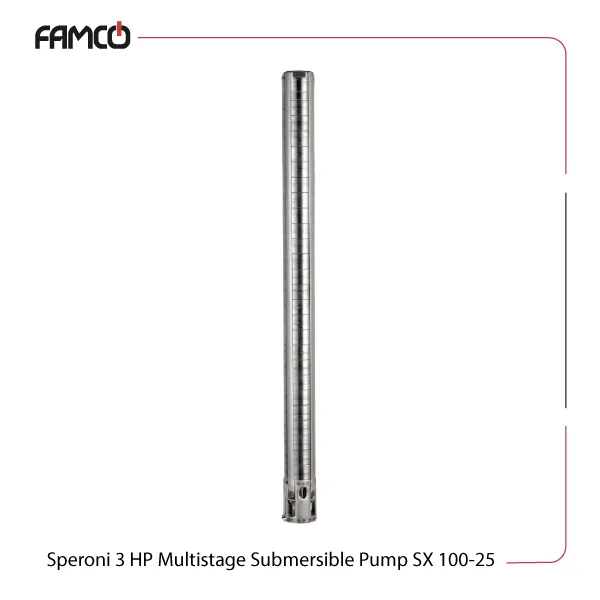

Speroni 3 HP Multistage Submersible Pump SX 100-25 Specifications
This unit offers a mix of solid pressure output and dependable construction, moving up to 100 liters per minute and pushing water as high as 157 meters. The stainless steel AISI 304 structure used throughout the casing, impellers, and motor shaft provides stability against corrosion and wear, even when operating in water with up to 50 g/m³ of sand. With 25 stages driven by a 3 HP motor, the SX 100-25 handles deep installations without difficulty, performing reliably at immersion depths near 150 meters. Its operating limits, including a maximum liquid temperature of 35 degrees Celsius, suit a wide range of applications from agricultural supply to industrial water distribution. Many users go for Speroni submersible pumps for setups that demand long service life combined with efficient performance, and this model fits naturally into systems where pressure consistency matters.
| Specification | Value |
| Power (HP) | 3 |
| Power (kW) | 2.2 |
| Max. flow rate (l/min) | 100 |
| Max. delivery head (m) | 157 |
| Number of stages | 25 |
| Max. immersion depth (m) | 150 |
| Max. liquid temperature (°C) | 35 |
| Sand content (g/m3) | 50 |
| External casing | stainless steel AISI 304 |
| Motor shaft | stainless steel AISI 304 |
| Stages and impellers | stainless steel AISI 304 |

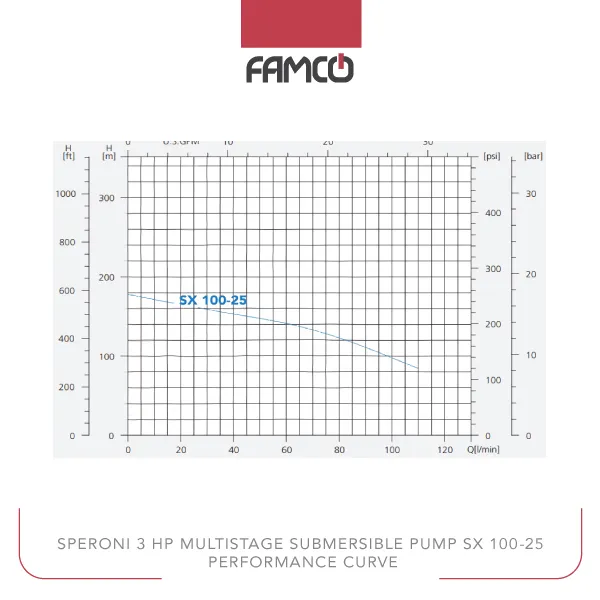

Speroni 3 HP Multistage Submersible Pump SX 100-25 Performance Curve
| m³/h | 0 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 |
| l/min | 0 | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 90 | 100 |
| H metres | 157 | 138 | 136 | 133 | 130 | 127 | 121 | 113 | 103 | 90 | 78 |
Speroni 3 HP Multistage Submersible Pump SX 100-25 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water supply
- Municipal water projects
Speroni 3 HP Multistage Submersible Pump SX 100-25 Benefits
- High efficiency with 25 stages for deep pumping
- Corrosion-resistant stainless steel build
- Capable of handling high immersion depths
- Suitable for liquids with sand content up to 50 g/m3
Speroni 3 HP Multistage Submersible Pump SX 100-25 Price List
| No. | Name | Price |
| 1 | Speroni 3 HP Multistage Submersible Pump SX 100-25 Price | Contact us |
