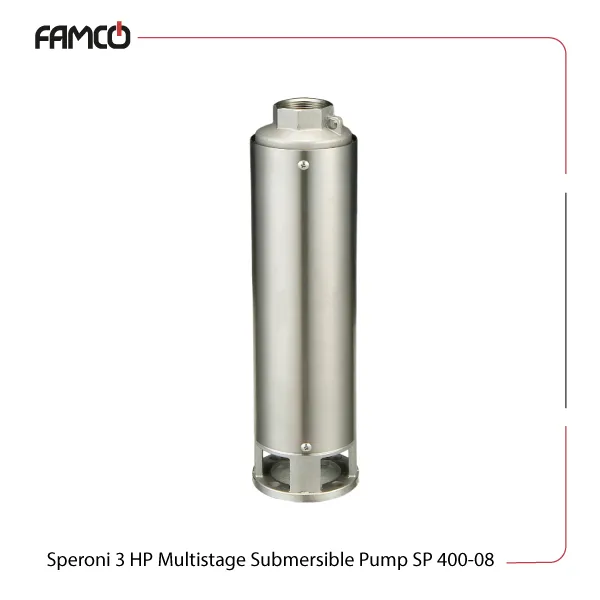

Speroni 3 HP Multistage Submersible Pump SP 400-08 Specifications
This product features a powerful 3 HP (2.2 kW) motor designed for continuous operation. It offers a maximum head of 51 meters and can handle a flow rate of up to 400 liters per minute. The pump is suitable for immersion depths reaching 150 meters and can operate efficiently with liquids up to 35°C. It is equipped with 8 stages, which enhances its performance and durability. This product has the advantage of being equipped with a motor that operates at 50 Hz with 2 poles, and it is available in both single-phase (230V) and three-phase (400V) power options, making it versatile for different setups. The motor’s insulation class is F, providing good thermal protection, while the IP68 protection degree ensures complete resistance to dust and water ingress. The shaft inside this Speroni pump is made of stainless steel AISI 304, offering corrosion resistance, and the mechanical seal is composed of ceramic and graphite, ensuring a tight seal and longevity. To make these Speroni submersible pumps less prone to ingress and oxidation, the impellers are made from Noryl, a durable plastic material.
| Specification | Value |
| Power (HP) | 3 |
| Power (kW) | 2.2 |
| Head (m) | 51 |
| Max. flow rate (l/min) | 400 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Number of stages | 8 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel aisi 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |

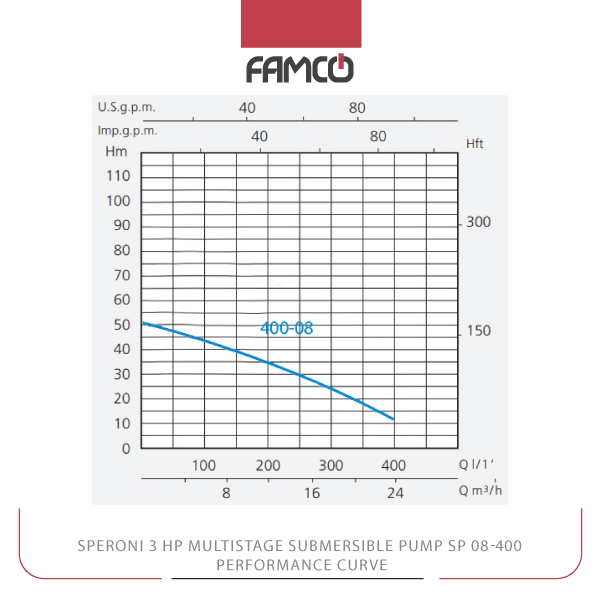

Speroni 3 HP Multistage Submersible Pump SP 400-08 Performance Data
| M3/h | 0 | 8.4 | 9.6 | 12 | 14.4 | 16 | 17 | 18 | 22 | 23 | 24 |
| l/min | 0 | 140 | 160 | 200 | 240 | 260 | 280 | 300 | 360 | 380 | 400 |
| Head (m) | 51 | 41 | 39 | 35 | 31 | 29 | 27 | 24 | 17 | 14 | 12 |

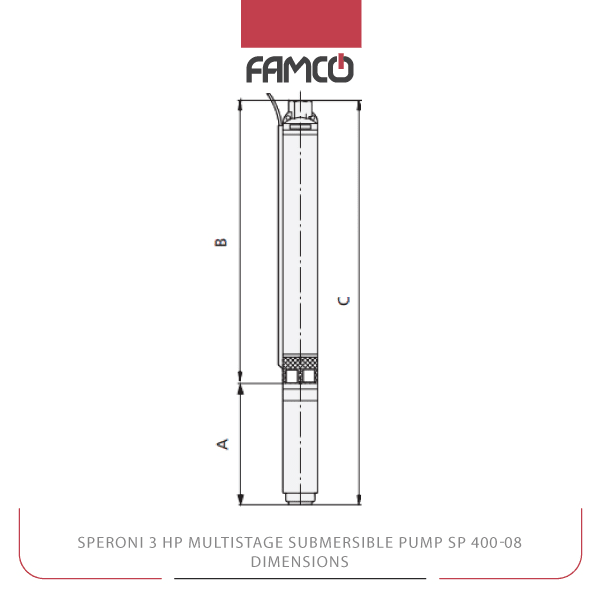

Speroni 3 HP Multistage Submersible Pump SP 400-08 Dimensions
| Dimensions (mm) | A | 495 |
| B | 676 | |
| C | 1171 |
Speroni 3 HP Multistage Submersible Pump SP 400-08 Applications
- Water transfer in industrial settings
- Irrigation systems for agriculture
- Deep well water extraction
- Wastewater and drainage management
Speroni 3 HP Multistage Submersible Pump SP 400-08 Benefits
- High efficiency with 8-stage design
- Durable stainless steel shaft and ceramic/graphite seal
- Suitable for deep immersion up to 150 meters
- Corrosion-resistant and protected against dust and water
Speroni 3 HP Multistage Submersible Pump SP 400-08 Price List
| No. | Name | Price |
| 1 | Speroni 3 HP Multistage Submersible Pump SP 400-08 Price | Contact us |
