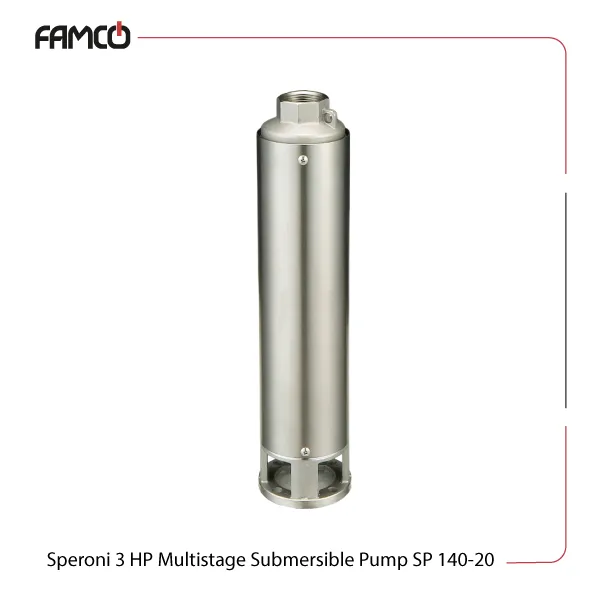

Speroni 3 HP Multistage Submersible Pump SP 140-20 Specifications
This robust pump offers a power of 3 HP (2.2 kW) and features a high head of 125 meters, making it suitable for various demanding applications. It can handle a maximum flow rate of 140 liters per minute and operates efficiently at a maximum immersion depth of 150 meters. Designed for continuous duty, the motor runs on both single-phase (230V) and three-phase (400V) power supplies, with a frequency of 50 Hz and two poles. The Speroni pump‘s construction includes a stainless steel AISI 304 shaft and a ceramic/graphite mechanical seal, ensuring durability and resistance to corrosion. It is rated with an insulation class F and an IP68 protection degree, making it suitable for submerged environments. The impellers placed inside the 140-20 Speroni submersible pump are made of Noryl, a material known for its strength and chemical resistance. The pump can operate with liquid temperatures up to 35°C and can handle sand content up to 50 g/m3, making it ideal for water transfer, irrigation, and industrial applications. The 20-stage design enhances its ability to generate high pressure and flow, suitable for various challenging tasks requiring reliable performance over time.
| Specification | Value |
| Power (HP) | 3 |
| Power (kW) | 2.2 |
| Head (m) | 125 |
| Max. flow rate (l/min) | 140 |
| Max. immersion depth (m) | 150 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Liquid temperature | up to 35 °C |
| Sand content max (g/m3) | 50 |
| Motor | continuous duty |
| Number of stages | 20 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IP68 |
| Motor shaft | stainless steel AISI 304 |
| Mechanical seal | Ceramic/Graphite |
| Impellers | Noryl |
Speroni 3 HP Multistage Submersible Pump SP 140-20 Performance Data
| M3/h | 0 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 7.2 | 8.4 |
| l/min | 0 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 |
| Head (m) | 90 | 77 | 74 | 71 | 68 | 63 | 59 | 46 | 28 |

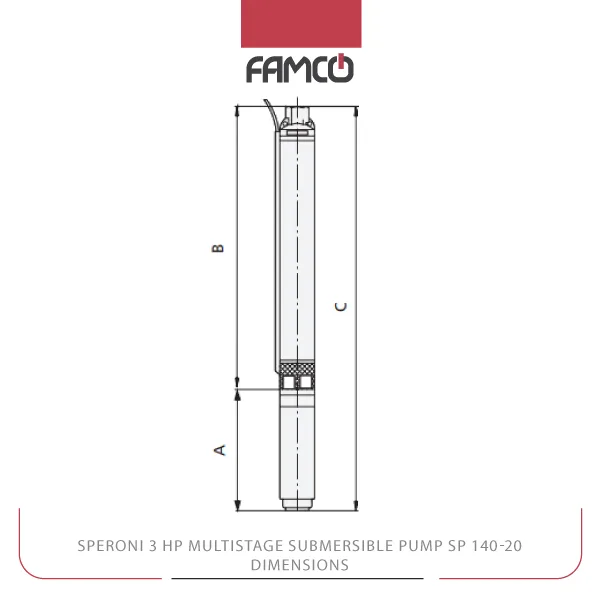

Speroni 3 HP Multistage Submersible Pump SP 140-20 Dimensions
| Dimensions (mm) | A | 440 |
| B | 607 | |
| C | 1047 |
Speroni 3 HP Multistage Submersible Pump SP 140-20 Applications
- Irrigation systems for agriculture
- Water supply for industrial facilities
- Deep well water extraction
- Flood control and drainage
Speroni 3 HP Multistage Submersible Pump SP 140-20 Benefits
- High head and flow rate for demanding tasks
- Durable stainless steel and ceramic components
- Suitable for submerged operation up to 150 meters
- Versatile power options with single and three-phase supply
Speroni 3 HP Multistage Submersible Pump SP 140-20 Price List
| No. | Name | Price |
| 1 | Speroni 3 HP Multistage Submersible Pump SP 140-20 Price | Contact us |
