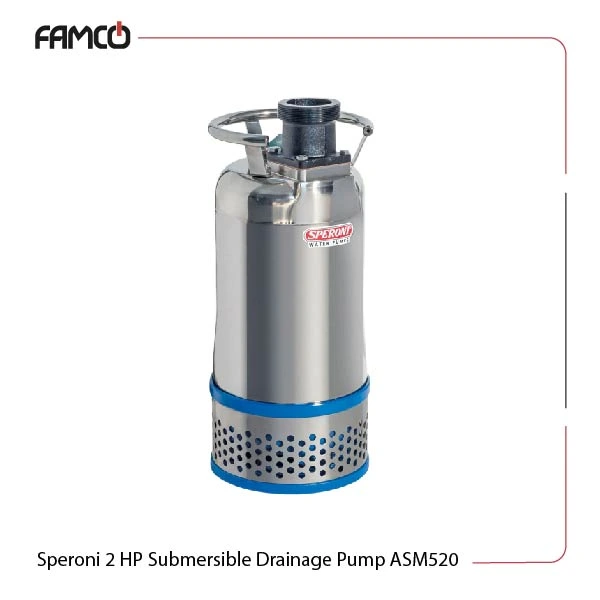

Speroni 2 HP Submersible Drainage Pump ASM520 Specifications
This powerful pump is used in both residential and industrial setups with a maximun head range of 16.5 meters. This series of Speroni submersible pumps has considerable immersion depths. This dainage pump, in particular, has a maximum immersion depth for home use is 10 meters. But as a submersible pump it goes beyond expectations since with the appropriate cable length, it can reach up to 20 meters. The pump features a minimum suction level of 85 mm with efficient operation. It is designed for both single-phase (230V-50Hz) and three-phase (400V-50Hz) voltage systems. Its powerful construction vouches for its longevity and reliability in demanding environments. The pump’s ability to handle different liquid temperatures has contributed to its versatility in diverse settings. With an insulation class of F and an IP68 protection rating, this pump withstands challenging environments. Its powerful construction vouches for its longevity and reliability in demanding environments. The pump’s ability to handle different liquid temperatures has contributed to its versatility in diverse settings. The body is made from spheroidal cast iron, while the impeller is crafted from high chrome alloy (HCR). The shaft is made of stainless steel AISI 304. This pump also includes a double mechanical seal in the oil chamber for enhanced durability.
| Specification | Value |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Max. flow rate (m3/h) | 42 |
| Head | 1.6-16.5 |
| Home use liquid temperature | up to 35°C |
| Max. liquid temperature (other uses) | 50°C |
| Home use maximum immersion depth | 10 m |
| Maximum immersion depth (with the right cable length) | 20 mt |
| Min. suction level | 85 mm |
| Single-phase voltage | 230V-50Hz |
| Three-phase voltage | 400V-50Hz |
| Insulation Class | F |
| Protection | IP 68 |
Speroni 2 HP Submersible Drainage Pump ASM520 Materials
- Pump body: Spheroidal cast iron
- Impeller: High chrome alloy (HCR)
- Shaft: Stainless steel AISI 304
- Double mechanical seal in oil chamber: Ceramic/Graphite/NBR, Silicon/Silicon/NBR
Speroni 2 HP Submersible Drainage Pump ASM520 Technical Data
| m3/h | 6 | 12 | 18 | 30 | 42 |
| lt/1’ | 100 | 200 | 300 | 500 | 700 |
| H (m) | 16.5 | 14.4 | 12.3 | 7.2 | 1.6 |

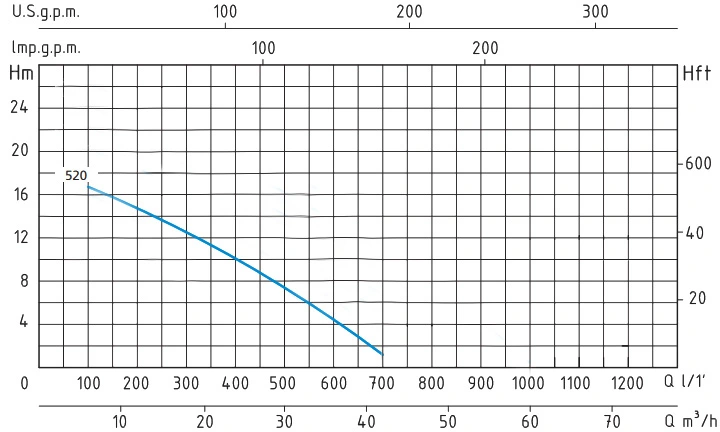

Speroni 2 HP Submersible Drainage Pump ASM520 Performance Curve
Speroni 2 HP Submersible Drainage Pump ASM520 Applications
- Residential drainage systems
- Irrigation for gardens and farms
- Water transfer between tanks
- Industrial water management
Speroni 2 HP Submersible Drainage Pump ASM520 Benefits
- High efficiency with a maximum flow rate of 42 m3/h
- Durable construction with spheroidal cast iron and stainless steel
- Versatile temperature handling for various applications
- IP68 protection ensures reliability in wet environments
Speroni 2 HP Submersible Drainage Pump ASM520 Price List
| No. | Name | Price |
| 1 | Speroni 2 HP Submersible Drainage Pump ASM520 Price | Contact us |
