Speroni 2 HP Multistage Submersible Pump SX 70-22 Specifications
This high-performance pump features a 2 HP (1.5 kW) motor, designed for efficient water transfer and deep immersion applications. It can handle a maximum flow rate of 70 liters per minute and delivers a head of up to 142 meters, making it suitable for various demanding tasks. The pump comprises 22 stages, which enhance its ability to generate high pressure and deep suction capabilities. It is capable of operating at a maximum immersion depth of 150 meters, ideal for well and borehole applications. The Speroni submersible pump SX 70-22 is built with durable stainless steel AISI 304 for the external casing, motor shaft, and impellers, ensuring resistance to corrosion and long-term use. It can handle liquids with a temperature up to 35°C and sand content up to 50 g/m³, making it suitable for water with some impurities. The pump weighs approximately 5.5 kg, making it relatively lightweight and easy to install or transport. Its robust construction and high efficiency make it a reliable choice for industrial, agricultural, or domestic water supply systems, especially where deep well pumping is required.
| Specification | Value |
| Power (HP) | 2 |
| Power (kW) | 1.5 |
| Max. flow rate (l/min) | 70 |
| Max. delivery head (m) | 142 |
| Number of stages | 22 |
| Max. immersion depth (m) | 150 |
| Max. liquid temperature (°C) | 35 |
| Sand content (g/m³) | 50 |
| External casing | stainless steel AISI 304 |
| Motor shaft | stainless steel AISI 304 |
| Stages and impellers | stainless steel AISI 304 |
| Weight (kg) | 5.5 |

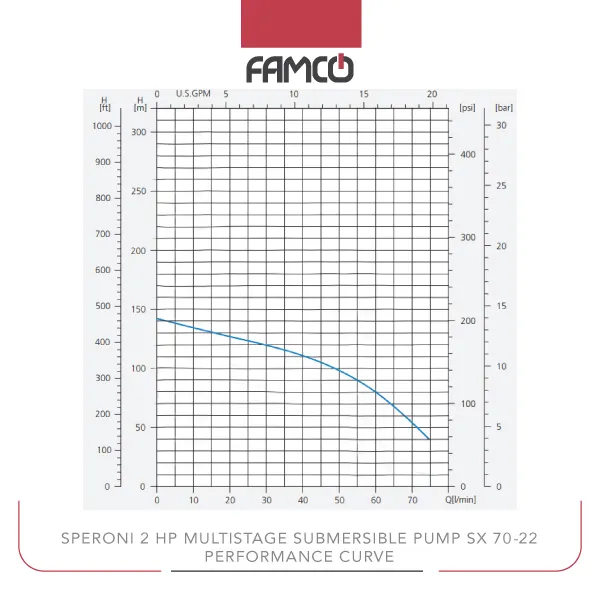

Speroni 2 HP Multistage Submersible Pump SX 70-22 Performance Data
| m³/h | 0 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 |
| l/min | 0 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
| head (m) | 142 | 123 | 120 | 115 | 110 | 105 | 98 | 80 | 54 |
Speroni 2 HP Multistage Submersible Pump SX 70-22 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Industrial water supply
- Domestic water pumping for homes
Speroni 2 HP Multistage Submersible Pump SX 70-22 Benefits
- High efficiency with 22 stages for deep suction
- Corrosion-resistant stainless steel build
- Capable of operating at 150 meters immersion depth
- Handles water with up to 50 g/m³ sand content
Speroni 2 HP Multistage Submersible Pump SX 70-22 Price List
| No. | Name | Price |
| 1 | Speroni 2 HP Multistage Submersible Pump SX 70-22 Price | Contact us |
